High strength low alloy steel plates are structural plates in which small additions of alloying elements, combined with controlled rolling practice, raise yield strength well above that of ordinary carbon steel without the heavy carbon content that would damage weldability. For fabricators they are the practical middle ground between mild structural plate and quenched and tempered ultra-high strength grades.
The family is defined by what it delivers rather than by one fixed composition: higher strength, better toughness, and often improved atmospheric corrosion resistance or formability compared with plain carbon-manganese steel of the same section size.
What Are High Strength Low Alloy Steel Plates
An HSLA plate is a rolled structural product in which the balance between strength, toughness and weldability is achieved by alloy design and rolling practice rather than by heat treatment alone. Carbon content is kept low, and the required strength comes from a combination of micro-alloying elements, grain refinement and, in many products, controlled thermomechanical processing.
Because carbon and carbon equivalent stay low, these plates can be welded with ordinary shop procedures and usually need no preheat in moderate thicknesses. That practical advantage is why the family remains in wide use for frames, supports, transport equipment and general engineering structures, and why designers often reach for it before considering quenched and tempered plate.
How Micro-alloying and Rolling Deliver Strength
Three mechanisms do most of the work. Micro-alloying elements form fine carbonitride particles during hot rolling, and these particles pin grain boundaries so that the ferrite grain size stays small. Controlled rolling with accelerated cooling refines the microstructure directly, so the finished plate is stronger without extra alloy content. Small amounts of alloying elements held in solid solution then strengthen the ferrite itself.
Grain refinement raises strength and improves toughness at the same time, which is why it is the preferred mechanism.
Precipitation strengthening from micro-alloy carbonitrides adds further strength at low alloy cost.
Solid solution strengthening from manganese and related elements sets the base strength level.
Low carbon and low carbon equivalent keep weldability and formability usable in normal fabrication shops.
Which mechanism dominates depends on the product route. Normalised plates rely more on composition and grain refinement, thermomechanically rolled plates rely on the rolling schedule and accelerated cooling, and quenched and tempered grades are reserved for the highest strength levels in the family.
Strength Levels and Delivery Conditions
The delivery condition matters as much as the strength level, because the same nominal strength can be reached by different routes with very different fabrication behaviour. The table below summarises how the main conditions compare in practice.
| Delivery condition | What it offers | Typical use |
|---|---|---|
| As-rolled | Lowest cost, moderate strength, good formability | General frames and supports |
| Normalised | Uniform properties and reliable toughness after welding | Structures with low temperature or dynamic duty |
| Thermomechanically rolled | High strength with very low carbon equivalent | Heavy welded structures that must be easy to weld |
| Quenched and tempered | The highest strength available in the family | Weight-critical machinery and equipment |
Weathering variants add alloying elements that allow a stable protective rust layer to form under suitable atmospheric exposure, which removes the need for painting in many outdoor applications. Because the mechanism depends on wet and dry cycling, these plates are not a substitute for coated steel in permanently wet or chloride-rich service.
Fabrication and Weldability Considerations
Low carbon content makes these plates friendly to normal fabrication, but the procedure still has to be matched to the actual product. Preheat depends on thickness, carbon equivalent and the hydrogen level of the consumables; a thin thermomechanically rolled plate may need none, while a thick plate of the same strength class may need a defined preheat.
Match the filler metal to the strength of the parent plate in critical joints, and use low hydrogen consumables for thick sections.
Keep heat input within the qualified range so the refined grain structure in the heat affected zone is not coarsened.
Cold forming is straightforward at moderate strength; higher strength grades need larger bend radii and allowance for springback.
Thermal cutting is routine, and cut edges should be cleaned before welding to remove oxides and hardened layers.
Corrosion protection is the other fabrication decision. Even weathering plates need proper detailing so that water drains and does not collect, because a stable patina only forms where the surface can dry.
Typical Applications and Selection Guidance
Transport equipment: truck chassis and trailers, railway wagons, container frames and lifting gear.

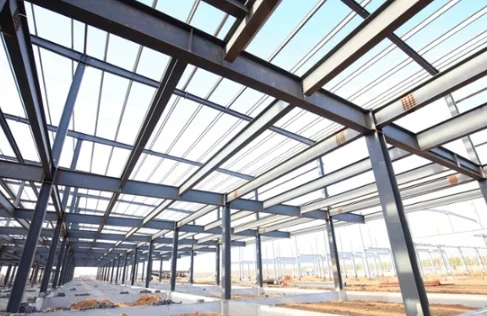

Construction: columns, beams, bracing, bridge components and transmission towers.
Heavy equipment: excavator and crane structures, agricultural machinery and mining equipment frames.
Infrastructure and energy: wind tower sections, pipeline supports and storage structures.
Selection should start from the required yield class and the service temperature, then identify the delivery condition that reaches that strength with an acceptable carbon equivalent, and finally confirm thickness availability and toughness requirements for the project. Choosing the lowest strength and the simplest delivery condition that satisfies the design normally gives the best combination of cost, weldability and delivery reliability.
Frequently Asked Questions
Q: What makes a steel plate low alloy rather than carbon steel?
Low alloy plates contain small amounts of elements such as niobium, vanadium, titanium or copper that raise strength, toughness or corrosion resistance, while total alloy content remains low enough to keep welding straightforward.
Q: Do HSLA plates always need preheat before welding?
No. Preheat depends on thickness, carbon equivalent, restraint and the hydrogen level of the consumables, so thin plate of low carbon equivalent can often be welded without preheat.
Q: What is the difference between normalised and thermomechanically rolled plate?
Normalised plate gets its properties from composition plus a heat treatment after rolling, while thermomechanically rolled plate gets them from the rolling schedule and cooling, which allows a lower carbon equivalent at the same strength.
Q: Are high strength low alloy plates suitable for low temperature service?
Many are, but low temperature toughness depends on the specific product and delivery condition, so impact requirements at the design temperature should be specified when the order is placed.
Q: Can these plates be bent and cut like ordinary structural steel?
Yes. Thermal cutting and cold forming are routine, although higher strength grades need larger bend radii, more springback allowance and clean cut edges before welding.
Q: When should a quenched and tempered plate be used instead?
Choose a quenched and tempered grade when the design needs a yield class beyond what rolled HSLA plate can deliver, or when weight reduction is worth the stricter welding controls that heat treated plate demands.
