ASTM/ASME Corten Steel
Premier ASTM & ASME Weathering Steel Manufacturer & Heavy Fabricator
As China's leading stockist and custom fabricator, we bridge the gap between raw material supply and ready-to-install solutions for certified ASTM A588, A242, and A606-4 Corten steel.
✅ Fully Traceable: Dual-certified ASTM/ASME plates with EN 10204 3.1 MTCs.
✅ Ready Stock: Thicknesses from 0.5mm sheets to 100mm+ heavy plates.
✅ One-Stop Fabrication: Laser cutting, rolling, and anti-runoff sealing treatments.
ASTM vs. ASME Weathering Steel: What's the Difference?
Many procurement managers confuse ASTM A588 with ASME SA588. While their chemical compositions are nearly identical, their certifications serve completely different engineering universes.
- ASTM (Structural Integrity): Designed for general structural construction (bridges, buildings, frames).
- ASME (Pressure Vessel Safety): When your project involves boilers or unfired pressure vessels operating under extreme temperatures and pressures, you must specify ASME SA588. Materials graded as "SA" undergo far more rigorous traceability, ultrasonic testing (UT), and notch toughness verification.
GNEE Steel is fully certified to supply ASME SA-grade weathering steel plates with dual certification (e.g., ASTM A588 / ASME SA588).
Complete ASTM & ASME Weathering Steel Grades We Supply
To meet the exact specifications of your engineering blueprints, GNEE Steel stocks and processes a comprehensive range of American standard (ASTM/ASME) weathering steels. Below is our complete grade availability chart, detailing the equivalents, yield strengths, and available forms.
| ASTM Standard | Specific Grades / Types | Corten Equivalent | Min. Yield Strength | Available Forms | Primary Applications |
| ASTM A588 / ASME SA588 | Grade A, Grade B, Grade C, Grade K | Corten B | 50 ksi (345 MPa) | Heavy Plates, H-Beams | Structural steel for welded bridges, heavy construction machinery, and railcars. |
| ASTM A242 | Type 1 | Corten A | 50 ksi (345 MPa) | Plates, Sheets | Architectural facades, outdoor sculptures, and industrial exhaust stacks. |
| ASTM A606 | Type 4 | N/A (Thin Gauge Corten) | 50 ksi (345 MPa) | Cold/Hot Rolled Coils, Sheets | Metal roofing, siding panels, landscape edging, and facade cassettes. |
| ASTM A709 | Grade 50W, HPS 50W, HPS 70W | N/A (Bridge Specific) | 50 - 70 ksi (345 - 485 MPa) | Heavy Plates | Fracture-critical mega-bridges and highway overpasses (CVN testing mandatory). |
| ASTM A847 | High-Strength Low-Alloy Tubing | N/A (Tubing Specific) | 50 ksi (345 MPa) | Square, Rectangular, Round Tubes | Exposed architectural columns, bridge trusses, and pedestrian walkways. |
(Note: For pressure vessel applications requiring extreme safety standards, we supply ASME SA certified materials with full EN 10204 3.1/3.2 traceability and ultrasonic testing.)
Navigating ASTM Weathering Steel Grades: Which One Fits Your Blueprint?
At GNEE Steel, we don't just sell steel; we help you decode the specs. Here is the ultimate guide to selecting the right ASTM/ASME weathering steel for your structural applications:
- ASTM A588 (Gr. A, B, C, K): The Heavy-Duty Workhorse
Features: Yield strength ≥ 50 ksi (345 MPa). Excellent impact toughness.
Best For: Welded bridges, heavy construction machinery, and load-bearing structures where high strength and low weight are critical.
- ASTM A242 (Type 1): The Aesthetic Original (Corten A)
Features: High phosphorus content for a rapid, dense, and uniform rust patina.
Best For: Architectural facades, exhaust flues, and decorative outdoor sculptures. (Note: Not recommended for heavy load-bearing due to phosphorus brittleness).
- ASTM A606 (Type 4): The Lightweight Champion
Features: Supplied as High-Strength Low-Alloy (HSLA) hot-rolled or cold-rolled sheet and strip.
Best For: Metal roofing, siding panels, and corrugated facade cassettes.
- ASTM A847: The Structural Tubing Standard
Features: Cold-formed welded and seamless HSLA structural tubing.
Best For: Exposed architectural columns, bridge trusses, and pedestrian walkways.
Certified Quality: Real Data, No Guesswork
When building infrastructure meant to last 100 years, you cannot rely on guesswork. Every batch of our ASTM Corten steel comes with a fully traceable EN 10204 3.1 Mill Test Certificate (MTC). We guarantee:
- Strict Carbon Equivalent (CEV) Control: We maintain a low CEV to ensure excellent on-site weldability, preventing cold cracking in the Heat-Affected Zone (HAZ).
- 100% Ultrasonic Testing (UT): For plates thicker than 20mm, we conduct UT inspections according to ASTM A435 or ASTM A578 to ensure zero internal laminations or inclusions.
- Charpy V-Notch (CVN) Impact Testing: For bridge and offshore applications, we provide customized low-temperature impact testing (down to -20°C or -40°C) to guarantee brittle fracture resistance.
Fabrication Tips for ASTM Corten Steel
- Welding Corten: To ensure the weld seam weathers (rusts) at the exact same color and rate as the base plate, always use weathering-grade consumables containing Nickel and Copper (e.g., AWS E8018-W or ER80S-G).
- Forming & Bending: ASTM A588 and A606-4 have excellent cold-forming properties. However, due to their higher yield strength compared to mild steel, require a larger bending radius (typically 2x to 3x the plate thickness) and account for greater springback.
Global Corten Steel Projects & Custom Engineering Solutions
At GNEE Steel, we go far beyond supplying raw plates. We partner with global architects, landscape designers, and EPC contractors to deliver fully fabricated, ready-to-install Corten steel solutions for iconic engineering projects.
Luxury Corten Hotel & Commercial Building Facades
Corten steel brings a striking, rustic-modern aesthetic to high-end architecture while offering decades of structural durability. At GNEE Steel, we provide ready-to-install facade solutions tailored to your CAD designs:
Bespoke 3D Profiles : From flat cladding to curved panels and geometric fins, our heavy-duty CNC machines precisely cut and bend Corten steel to any complex shape.
Privacy Screens & Louvers : We fabricate custom vertical louvers and perforated screens, ideal for solar shading and creating intimate spaces in hotels or commercial plazas.
Zero-Stain Finish : Worried about rust bleeding? Our factory pre-weathering and clear-sealing process locks in the patina, guaranteeing absolutely no rust stains on your adjacent glass or concrete.
📥 [Get PDF Case Study: Corten Steel Hotel Projects]
(See real-world luxury hospitality photos, CAD drawings, and installation specs)
Corten Standing Seam Roof Panels
A Corten steel roof offers unparalleled longevity and a distinct architectural signature that blends beautifully with natural surroundings.
- What We Deliver: We manufacture Corten standing seam roof panels tailored to your project's pitch and span.
- The Advantage: The concealed fastener design of the standing seam system ensures absolute leak-proof performance. Combined with Corten's self-healing patina, these roofs offer a maintenance-free lifespan of over 50 years, ideal for harsh weather environments.
Integrated Landscape & Garden Engineering
We supply comprehensive Corten steel materials for large-scale municipal parks, urban plazas, and high-end residential landscaping projects. Our custom fabrication includes:
- Water Features & Fountains: Engineered with precise welding to remain watertight while showcasing a beautiful rust finish.
- Retaining Walls & Garden Edging: Heavy-duty, flexible edging solutions that structure the landscape and resist soil corrosion.

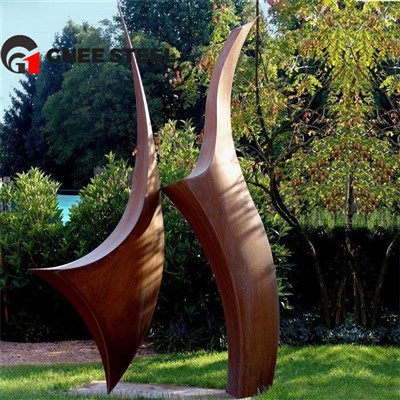

- Privacy Screens & Sculptures: Intricately laser-cut aesthetic installations tailored to the artist's or designer's vision.
- Giant Planter Boxes: Heavy-gauge Corten planters designed for deep-root trees in urban public spaces.
Corten Steel Curtain Wall & Facade Engineering
- What We Deliver: We manufacture precision-engineered Corten facade cassettes, flat cladding panels, and custom-perforated rainscreen systems . Our technical team works directly with your architectural CAD files to deliver panels that perfectly fit your building's substructure.
- The Advantage (Solving the Runoff Issue): By applying our factory pre-weathering and anti-staining clear sealants, we lock in the rich patina before shipping. Combined with our CNC laser cutting and precise press-braking, we deliver ready-to-mount facade panels that save your contractors thousands of hours in on-site labor and guarantee a flawless, stain-free installation.
One-Stop Weathering Steel Fabrication Services
Our Core Processing Capabilities
Precision Laser Cutting & Hollow Carving
Using high-power CNC laser and plasma machines, we can cut complex geometric patterns, decorative screens, and custom profiles according to your CAD/DWG files with millimeter precision and clean edges.
Bending, Drilling & Welding
From heavy-duty structural drilling to precise angle folding and full-penetration welding, our in-house engineers prepare the plates exactly as your project demands, saving your local fabricators days of work.
Accelerated Pre-Weathering / Rapid Rusting
Can't wait 6 to 12 months for nature to do its job? We utilize eco-friendly chemical treatments to instantly generate that beautiful, rich orange-brown rust patina in our factory. Your steel arrives looking perfectly aged on day one.
Rust Sealing & Surface Curing
Are you worried about rust stains bleeding onto your concrete or marble floors? We apply a specialized transparent curing sealer to lock in the rust layer. This stops the rust from transferring or washing off in the rain, ensuring a clean and maintenance-free architectural finish.
As one of the leading astm/asme corten steel manufacturers and suppliers in China, we warmly welcome you to buy astm/asme corten steel in stock here and get free sample from our factory. All customized products are with high quality and low price.
