Abrasion Resistant Steel

Advantages of Abrasion-Resistant Steel: Why Upgrade from Mild Steel?

Upgrading your heavy equipment from standard structural steel (like ASTM A36 or S355) to a Quenched and Tempered (Q&T) abrasion-resistant plate is not just a material change—it is a strategic engineering decision that directly impacts your bottom line.



Here is why top-tier OEMs and mining contractors insist on AR steel:

1. Maximized Uptime and 3x–5x Longer Service Life

The primary enemy of mining and construction equipment is sliding and impact wear caused by abrasive materials (rocks, sand, coal, and scrap metal). The martensitic microstructure of AR400 and AR500 steel provides exceptional resistance to gouging and scratching.



The Result: Wear liners and excavator buckets last 300% to 500% longer than those made of mild steel. This dramatically reduces the Mean Time Between Failures (MTBF) and minimizes costly unscheduled maintenance downtime.



2. Payload Optimization (The "Thinner but Stronger" Paradigm)

Higher hardness and yield strength allow engineers to design with thinner plates without sacrificing structural integrity.



The Result: By downgauging the steel thickness on a dump truck body or a tipper trailer from 10mm (mild steel) to 6mm (NM450 AR steel), you can shed thousands of pounds of "dead weight." This translates directly into higher payload capacity, better fuel efficiency, and a lower carbon footprint per haul.



3. Hardness Meets Superior Impact Toughness (No Brittle Fracture)

A common misconception is that "harder steel is more brittle." Standard AR steel plates undergo a precise Quenching and Tempering (Q&T) metallurgical process.



The Result: The quenching provides the extreme surface hardness (up to 600 HBW) to resist abrasion, while the tempering process restores the core toughness. This ensures the steel can absorb massive impact shocks (e.g., heavy boulders dropping into a hopper) without cracking or catastrophic brittle fracture.

4. Surprisingly Good Workshop Workability

Despite their extreme hardness, modern AR steel grades (specifically NM400 and NM450) are highly refined with low carbon equivalents (CEV).



The Result: They offer excellent cold formability and weldability. With the right workshop parameters, local fabricators can still cut, bend, and weld these plates using conventional methods, avoiding the need for expensive, specialized joining techniques.

Engineer's Tip: Are you currently replacing your A36 wear liners every 6 months?

Switching to an NM450 equivalent plate often pays for itself in less than a year through reduced maintenance labor and material replacement costs.



Which Abrasion-Resistant Wear Fighter Is Right for You?

Bigger hardness numbers don't always mean a better choice. The harder the steel, the harder it is to cut, bend, and weld in your workshop. Here is how to choose your wear fighter based on your specific fabrication needs:



1. The All-Rounder: AR400 / NM400



• Best for: Dump truck bodies, hoppers, silos, and conveyors.



• Why choose it: It offers excellent cold forming properties. If your fabrication process requires significant bending or rolling, 400 HBW steel will not crack easily during press braking.



2. The Upgraded Standard: AR450 / NM450



• Best for: Excavator buckets, cutting edges, and heavy-duty tipper trailers.



• Why choose it: It is the industry's "sweet spot." An extra 50 Brinell points provide significantly better wear life than 400, while still allowing for reasonable workshop workability.



3. The Heavy-Duty Brawler: AR500 / NM500



• Best for: Crusher liners, shredder knives, and mining screens.



• Why choose it: Built for extreme sliding wear and heavy impact. Note: Due to its extreme hardness, cold bending is highly restricted. It is typically used as flat wear plates bolted or welded onto structural frames.

Low Price NM450 NM400 NM500 NM550 10mm 12mm 15mm 16mm 6mm NM400 Wear Resistant Steel Plate Nm450 Wear Plate

Wear-resistant plate with high wear resistance and good impact performance is good, can be cutting, bending, welding, etc.,can adopt welding, plug welding, bolt connection way to connect with other structures, such as the scene of the maintenance process possesses the characteristics of time saving, convenient and widely used in metallurgy, coal, cement, power station,glass, mining, building materials, brick and petrochemical industry, compared with other materials, has a high cost performance,has been favored by more and more buyers.



Wear resistant steels are developed for applications where high wear resistant performance is required, such as dumper, garbage vehicle, concrete mixer truck, industrial air fan, hopper, crusher, machinery for coal, grain, cement, grab bucket, etc

(1) handling machinery and equipment: unloading mill chain plate, hopper liner, grab the edge plate, and automatic tipper tipping plate;
(2) of construction machinery equipment: Cement pusher plate, concrete mixer liner, mixing building lining board. Dust collector liner;
(3) metallurgical machinery equipment: iron ore sintering conveying elbow, iron ore sintering machine liner, scraper machine liner;

4) mining machinery and equipment: aggregate, stone crusher liner, blade;
(5) other mechanical equipment: sand barrel, blade, a variety of port machinery wear part;
(6) of thermal power equipment: coal mill lining board Coal, coal conveying pipe, coal distributor frame,unloading equipment lining plate;
(7) shot blasting machinery: shot blasting machine lining board;
(8) engineering machinery and equipment: loaders, bulldozers, excavators;

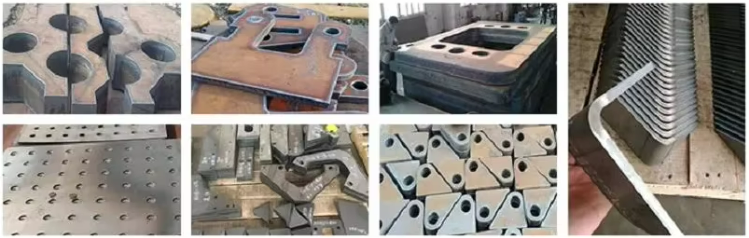

Beyond Raw Plates: Our Custom AR Steel Fabrication & Machining Services

Working with 400-600 HBW steel is notoriously difficult. It destroys standard drill bits, requires massive press brake tonnage, and demands strict thermal control during cutting.



Instead of struggling with tooling wear and local high labor costs, many OEMs and mining contractors send us their CAD drawings (.dwg or .dxf). GNEE Steel provides one-stop custom fabrication services, delivering ready-to-install wear parts directly to your assembly line.



1. Precision Profiling & Cutting (Minimizing the HAZ)

Thermal cutting of high-hard steel can alter its microstructure, creating a "soft edge" in the Heat-Affected Zone (HAZ). We utilize advanced cutting technologies to maintain the steel's core hardness:

Fiber Laser Cutting: Ideal for NM400/NM450 plates up to 20mm thick. Provides extreme precision (±0.2mm tolerance) with minimal HAZ, requiring zero post-cut edge machining.

High-Definition Plasma & Underwater Plasma: For plates up to 50mm. Cutting underwater significantly absorbs the heat, protecting the martensitic structure of AR500/AR600 from softening.

Oxy-Fuel (Flame) Cutting: Used for ultra-thick plates (up to 150mm). We apply strict pre-heating protocols (75°C - 150°C) prior to cutting to prevent hydrogen-induced delayed cracking.



2. Heavy-Duty Bending & Rolling

Bending AR steel requires huge machine power and an understanding of its massive "springback" effect.

Equipped with heavy-duty CNC press brakes (up to 3000 Tons), we can cold-bend NM400 and NM450 plates up to 50mm thick.

We calculate the exact minimum bending radius and utilize specialized bottom V-dies to prevent surface cracking during the forming of U-shaped truck beds and chute liners. (Note: NM500 and NM600 are generally not recommended for cold bending and are supplied as flat liners).



3. CNC Drilling, Countersinking & Tapping

Machining holes in 500 HBW steel is a nightmare for standard workshops.

We use specialized solid carbide and Cobalt-alloyed High-Speed Steel (HSS-Co) cutting tools running at high feed pressure and low RPM.

We can machine countersunk holes (perfect for plow bolts in wear liners), counterbored holes, and perform precise thread tapping for bolt-on replaceable wear plates.

Popular Ready-to-Install Wear Parts We Manufacture:

✅ Excavator Bucket Lips & Cutting Edges: Beveled and drilled to your OEM specs.

✅ Crusher Liner Plates: Boltable wear liners with countersunk holes.

✅ Dump Truck Bed Liners: Pre-bent and cut-to-size floor and side panels.

✅ Conveyor Chutes & Skirting: Rolled and welded wear-resistant assemblies.

At first, our main business is meatl material , with more and more customer cooperation , now we bought our own machine to provide cutting service to customer , we have 1 set 12000w fiber laser cutting machine , 1 set 6000 fiber laser cutting mahcine , 2 set plasma machine , 1 set bending machine , 1 set Sandblasting machine to clean the rust , and have a smaller painting room .

1).Competitive Price directly from the original manufacturer.
2).Professional QC and R&D teams to assure high quality;
3). Short lead time for building molds and manufacturing mass production;
4). Advanced measurement equipment
5). Small quantity order also is welcomed.
6).We do OEM works, as per your drawings, samples or ideas.
7).Rich experience and good technology support (have more than 10 years experience in mould design , mould manufacturing and injection).



Which Abrasion-Resistant Wear Fighter Is Right for You?

Bigger hardness numbers don't always mean a better choice. The harder the steel, the harder it is to cut, bend, and weld in your workshop. Here is how to choose your wear fighter based on your specific fabrication needs:

1. The All-Rounder: AR400 / NM400

Best for: Dump truck bodies, hoppers, silos, and conveyors.

Why choose it: It offers excellent cold forming properties. If your fabrication process requires significant bending or rolling, 400 HBW steel will not crack easily during press braking.



2. The Upgraded Standard: AR450 / NM450

Best for: Excavator buckets, cutting edges, and heavy-duty tipper trailers.

Why choose it: It is the industry's "sweet spot." An extra 50 Brinell points provide significantly better wear life than 400, while still allowing for reasonable workshop workability.



3. The Heavy-Duty Brawler: AR500 / NM500

Best for: Crusher liners, shredder knives, and mining screens.

Why choose it: Built for extreme sliding wear and heavy impact. Note: Due to its extreme hardness, cold bending is highly restricted. It is typically used as flat wear plates bolted or welded onto structural frames.

Sourcing AR Steel? Targeted FAQ for Procurement & Engineers

Q1: Can Chinese NM500 replace Hardox 500 in heavy mining equipment?
A: Yes, absolutely. Chinese NM (Nai Mo) series steel plates share a nearly identical chemical composition (Boron-added, Q&T processed) to European brands. While top-tier European brands may hold a slight edge in extreme low-temperature impact tests, for 90% of general wear applications (like truck beds and crusher liners), switching to NM500 can reduce your material costs by 20% to 30% without sacrificing service life.



Q2: Can I weld AR450 or AR500 steel plates?
A: Yes, but it requires strict thermal control. Because of the high carbon equivalent (CEV), you must use low-hydrogen consumables (e.g., E7018 electrodes). For thicker plates (typically > 20mm), pre-heating to 75°C - 150°C is mandatory to prevent hydrogen-induced cold cracking in the weld heat-affected zone (HAZ).



Q3: How do you cut abrasion-resistant steel? Will cutting ruin the hardness?
A: AR steel can be cut using plasma, laser, or oxy-fuel. However, thermal cutting creates a Heat-Affected Zone (HAZ) where the edge loses its hardness. To minimize this "soft edge," we recommend underwater plasma cutting or laser cutting. For mechanical drilling, always use high-speed steel (HSS) with cobalt coating, run at low RPM, and apply high feed pressure.



Q4: Do you offer cut-to-size and bending services for AR plates?
A: Yes. We understand that many local workshops lack the high-tonnage press brakes required to bend NM450/NM500 plates. GNEE Steel provides CNC plasma cutting, drilling, and heavy-duty press braking services. You can import ready-to-assemble wear parts directly from us to save on local labor and machining costs.



Stop overpaying for brand-name wear plates. Maximize your equipment's uptime and your profit margins today.
Send us your drawings or required specifications (Hardness, Thickness, Width). Our metallurgical team will provide the latest NM400/NM500 factory price list and customized machining solutions within 24 hours.

📧 [Get an Instant Quote & MTC Sample Now]

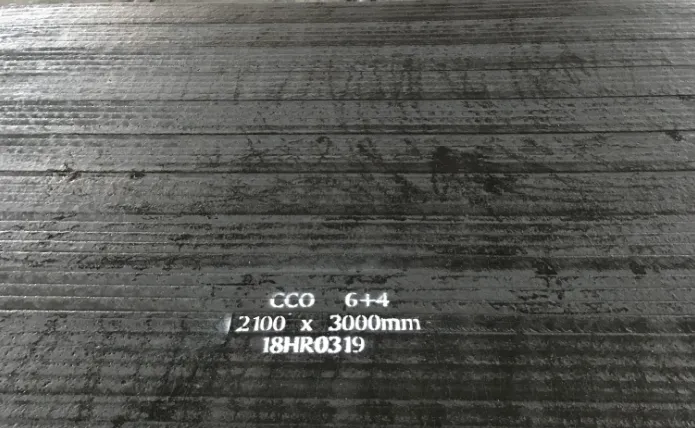

Facing Extreme Sliding Abrasion? Upgrade to Chromium Carbide Overlay (CCO) Plates

Standard Quenched & Tempered (Q&T) AR steel plates (like NM500) are excellent for a balance of impact and sliding wear. However, when your equipment handles highly abrasive materials like crushed glass, clinker, or silica sand under severe sliding conditions, even 500 HBW steel might wear out too fast.

For these extreme environments, GNEE Steel provides Chromium Carbide Overlay (CCO) Wear Plates (also known as Bimetallic Wear Plates).

What is a CCO Plate?

Instead of a homogenous steel plate, a CCO plate consists of two distinct layers:

The Base Plate: A mild carbon steel backing (e.g., Q235B or ASTM A36) that absorbs mechanical shock and allows for easy welding, bolting, and forming.

The Hardfaced Overlay: A highly alloyed deposit of chromium carbides (Cr7C3) welded onto the base plate. This overlay achieves a staggering surface hardness of 58-62 HRC (approx. 600-700 HBW).



Quick Comparison: Standard AR Steel vs. CCO Wear Plate

Feature	Q&T AR Steel (e.g., NM500)	CCO Wear Plate (Hardfaced)
Best Wear Type	Heavy Impact + Sliding Abrasion	Extreme Sliding Abrasion (Low/Medium Impact)
Surface Hardness	450 - 550 HBW	58 - 62 HRC (equivalent to 600+ HBW)
Wear Life	3x - 5x longer than mild steel	Up to 5x longer than AR500 steel
Weldability & Installation	Requires low-hydrogen pre-heating	Very easy (weld directly onto the mild steel base)
Typical Applications	Excavator buckets, dump truck beds	Cement chutes, coal hoppers, exhaust fan blades

Note: The visible relief cracks on the surface of CCO plates are a natural result of the hardfacing process and do not affect the plate's structural integrity. In fact, they relieve internal welding stress.



Custom CCO Fabrication

We don't just supply standard 1500x3000mm CCO sheets. Our facility is equipped to roll, cut, and fabricate CCO plates into complex wear parts, including wear pipes, elbows, and cyclone liners, ensuring your plant minimizes downtime.



WEAR-RESISTANT STEEL PLATE

Model	HRC	Working Temperature		Alloy Chemical Composition					Specification and thickness Standard size 1400*3000 1500*3000 2000*3000
				C	Cr	Mn	Nb	others
HP100	60-63	＞500℃		3-5	22-28			48	3+3,4+4,5+5,6+4,6+5, 6+6,8+4,8+5,8+6,8+7, 8+8,10+4,10+5,10+6, 10+7,10+8,10+9,10+10,10+20,12+4,12+5,12+6,12+7,12+8,12+9,12+1, 12+11,12+12, 12+17, 12+25,14+6,14+8, 14+10,16+6,16+8, 16+10,18+6,18+8, 18+10,20+5,20+6,20+8,20+10,20+20
HP200	58-62	＞500℃		3-5	20-26	1-3		2-5
HP300	60-65	＞800℃		4-6	18-25	2-3	5-8	3-6
HP400	50-55	＞500℃		0.4-2	3-7	15-20		2-5
Industry Application	Power industry		Coal hopper lining plate, coal drop pipe liners, coal mill wear parts, ash pipeline, fan blade
	Iron and steel industry		Bin liner, skip car liner, vibrating feeder lining, CDQ tank lining, coke-barrier car bottom plate, slag sluice lining
	Cement industry		Raw mill lining, clinker chute lining, dust discharge pipe, guide vane, roller protection sleeve, slag mill wear parts
	Glass industry		Blender mixer bottom plate, fan blade, fore and rear discs of fan impeller, quick-wearing wear parts
	Mining industry		Excavator bucket liners, bucket-wheel excavator, scarper conveyor middle trough, elevator skip, hopper liner
	Engineering industry		Shield machine wear parts, boring machine shovel plate, loader shovel plate, dump truck body plate.
	Port		Loading and discharging machine, wear-resistant pipeline, channel dredging, bin liner
we also customize various specification wear-resistant plate and wear parts according to customer requirement and drawings.

As one of the leading abrasion resistant steel manufacturers and suppliers in China, we warmly welcome you to buy abrasion resistant steel in stock here and get free sample from our factory. All customized products are with high quality and low price.
