Steel Wear Plate NM400 NM600
Steel wear plates NM400 and NM600 are widely used abrasion-resistant materials designed to extend equipment life and reduce maintenance costs. The key difference lies in hardness:
- NM400: Standard wear-resistant grade with balanced toughness
NM400 wear plate is widely used in various industrial fields as a kind of high-strength and high wear-resistant steel plate material. Its excellent wear resistance, strength and corrosion resistance meet the needs of different industries. At the same time, its easy processing characteristics also provide convenience for its application in various fields. With the continuous progress of science and technology and the expansion of application fields, NM400 wear-resistant plate will play a more important role in the future.
- NM600: Ultra-high hardness grade for extreme abrasion
The production process of NM600 steel body armor plates mainly includes smelting, continuous casting, rolling and heat treatment. In the smelting process, the use of vacuum induction furnace for melting, to ensure the purity of steel. Continuous casting process, the use of continuous casting machine will cast steel into slabs. In the rolling process, the rolling mill is used to roll the slab into the required thickness and width. Finally, through the heat treatment process, the internal organisation of the steel plate is adjusted to improve its mechanical properties and wear resistance.
At GNEE Steel, we supply both NM400 and NM600 plates with strict quality control, ensuring stable performance across industries such as mining, construction, and cement.
Key Features of NM400 and NM600 Wear Steel Plate
High Wear Resistance
- NM400: 370–430 HBW
- NM600: 570–630 HBW
Strength and Durability
- Both grades offer excellent mechanical strength, allowing them to withstand heavy loads and harsh working environments.
Different Toughness Levels
- NM400: Better impact resistance
- NM600: Lower toughness but superior abrasion resistance
Fabrication Performance
- NM400: Easy to weld, cut, and bend
- NM600: Requires controlled processing (preheating, special welding)
NM400 abrasion resistant steel plate chemical composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | B | Als |
| NM400 | ≤0.30 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.010 | ≤1.20 | ≤0.70 | ≤0.50 | ≤0.50 | 0.0005-0.006 | ≥0.01 |
NM600 Armor Ballistic Steel Plate chemical composition
| Grade |
Chemical requirement or element Max % |
||||||||||
|
|
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Mo |
Ti |
B |
ALs |
|
NM600 |
0.45 |
0.70 |
1.90 |
0.020 |
0.010 |
1.5 |
1.0 |
0.80 |
0.05 |
0.005- |
0.010 |
NM400 wear steel plate mechanical property
| Grade | Mechanical Property | ||
| NM 400 | Yield | Tensile | Elongation |
| Min Mpa | Mpa | Min % | |
| 1000 | 1200 | 10 | |
| NM400 | Thickness | Hardness (HB) |
| ≤80mm | 370~430 | |
| ＞80~120mm | 360~440 |
NM600 Steel Armor Plate mechanical property
| Grade |
Property |
Impact test |
HBW |
||
|
NM600 |
Yield Mpa Min |
Tensile Mpa |
Elongation |
Min J |
Min 570 |
|
Thickness mm |
Thickness mm |
Degree |
|||
|
《70mm |
<=60mm |
% |
-20 |
||
|
|
|
|
|
||
NM400 abrasion plate Products Details
NM400 abrasion resistant steel sheet thickness direction performance requirements: Z15, Z25, Z35.
NM400 high wear resistance steel plate flaw detection requirements: one probe, two probe, three probe.
NM400 abrasion resistant metal Density: 7.85/m3.
NM400 wear resistant metal Rational weight formula: thickness * width * length * density.
NM400 steel wear plate material conventional size: 8-80mm * 2000-2500mm * 8000-10000mm
Applications of NM400 vs NM600 Steel Wear Plate
NM400 Applications (General Wear)
- Excavator buckets
- Dump truck bodies
- Conveyor systems
- Construction machinery
NM600 Applications (Extreme Wear)
Mining crushers
Heavy-duty liners
Cement plant chutes
High-abrasion equipment
NM400 vs NM600: Which One Should You Choose?
| Feature | NM400 | NM600 |
|---|---|---|
| Hardness | Medium | Ultra-high |
| Wear Resistance | Good | Excellent |
| Toughness | Higher | Lower |
| Processing | Easy | Difficult |
| Cost | Lower | Higher |
Selection Guide:
- Choose NM400 for cost-effective, general-purpose wear
- Choose NM600 for maximum service life in extreme abrasion
Request a Quote for NM400 NM600 Steel Wear Plate
Looking for reliable NM400 or NM600 wear plates?
GNEE Steel provides:
Competitive pricing
Consistent quality
Fast global delivery
👉 Contact us now for quotation, technical advice, and samples
FAQ
What is the difference between NM400 and NM600 wear plate?
NM400 and NM600 mainly differ in hardness and wear resistance. NM400 offers balanced performance with good toughness and easier processing, while NM600 provides ultra-high hardness and superior abrasion resistance for extreme wear conditions.
What is NM400 wear steel plate used for?
NM400 is widely used in general wear applications such as excavator buckets, dump truck bodies, conveyors, and construction machinery where both wear resistance and impact resistance are required.
What is NM600 steel plate used for?
NM600 is used in extreme abrasion environments like mining crushers, cement plant liners, and heavy-duty chutes where maximum wear resistance and longer service life are critical.
Is NM600 better than NM400?
NM600 is better in terms of wear resistance and lifespan in high-abrasion conditions. However, NM400 is more suitable for applications involving impact and easier fabrication, making it more versatile.
What is the hardness of NM400 and NM600 steel plate?
NM400 typically has a hardness of 370–430 HBW, while NM600 ranges from 570–630 HBW. The higher hardness of NM600 makes it significantly more resistant to wear.
Is NM600 wear plate difficult to weld?
Yes, NM600 is more difficult to weld due to its high hardness. It requires preheating, low-hydrogen electrodes, and controlled cooling to prevent cracking.
Can NM400 and NM600 be cut and processed easily?
NM400 is relatively easy to cut, weld, and bend using standard methods. NM600 requires advanced cutting techniques such as laser or plasma cutting and careful handling during fabrication.
How long does NM600 last compared to NM400?
In high-abrasion environments, NM600 can last significantly longer than NM400, often extending service life by 50% or more depending on working conditions.
How to choose between NM400 and NM600 wear plate?
If your application involves moderate wear and impact, NM400 is the better choice. For extreme abrasion with minimal impact, NM600 is more suitable due to its higher hardness.
Is NM600 wear plate more expensive than NM400?
Yes, NM600 is generally more expensive due to its higher hardness and complex production process. However, it often provides better long-term value by reducing maintenance and replacement costs.

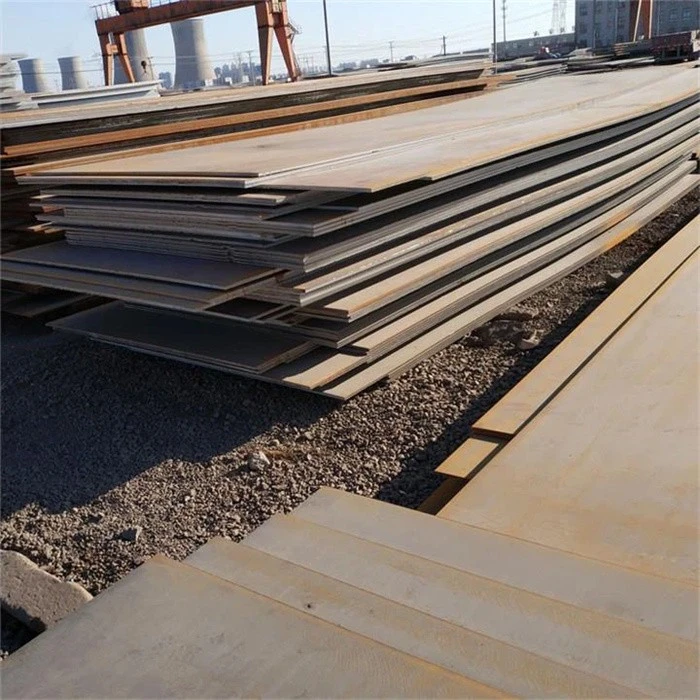

NM400 600 Abrasion Wear Resistant Plate Products image
