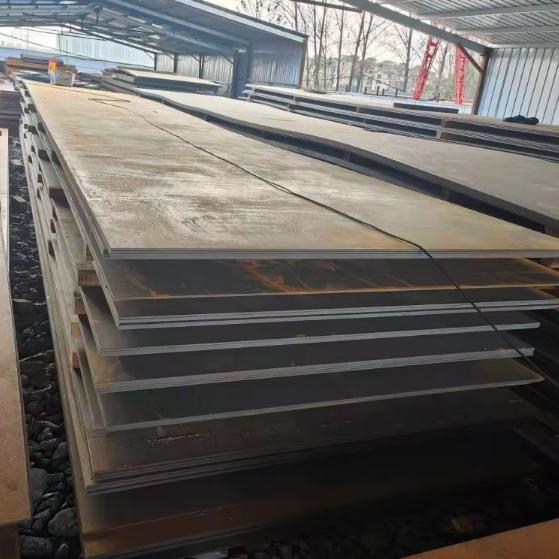

NM500 NM600 Abrasion Steel Plate

NM500 NM600 Abrasion Steel Plate

---

NM500 and NM600 are premium abrasion-resistant steel plates designed for heavy-duty applications where wear is a major concern. The key difference lies in hardness and performance level:



• NM500: High wear resistance with balanced toughness

NM500 is a high-strength wear-resistant steel plate with high hardness and wear-resistant properties, suitable for manufacturing wear-resistant parts and structural components. Widely used in mining machinery, construction machinery, engineering machinery, agricultural machinery, metallurgical machinery and other fields, for the manufacture of wear-resistant parts and structural components, such as crusher liners, excavator buckets, bulldozer blades, conveying pipelines, etc. The implementation of the standard of NM500 steel plate is GB/T 24186-2009 "High Strength Wear-Resistant Steel Plate for Construction Machinery".



• NM600: Ultra-high wear resistance for extreme abrasion

The main chemical composition of NM600 wear-resistant steel plate includes carbon, silicon, manganese, phosphorus, sulfur and other elements. Among them, the carbon content is high, which can improve the hardness and wear resistance of the steel plate. Meanwhile, the addition of silicon, manganese and other elements can further enhance the strength and toughness of the steel plate.



At GNEE Steel, we supply NM500 and NM600 plates with consistent hardness, strict quality control, and global export capability.





Grade	C	Si	Mn	P	S	Cr	Ni	Mo	Ti	B	Als
NM500	≤0.38	≤0.70	≤1.70	≤0.020	≤0.010	≤1.50	≤1.00	≤0.65	≤0.50	0.0005-0.006	≥0.01





Grade	Chemical requirement or element Max %
	C	Si	Mn	P	S	Cr	Ni	Mo	Ti	B	ALs
NM600	0.45	0.70	1.90	0.020	0.010	1.5	1.0	0.80	0.05	0.005- 0.006	0.010 min





Grade	Mechanical Property
NM 500	Tensile		Elongation
	Mpa		Min %
	1350		7
Charpy V Impact Test
Degree		longitudinal
-20 / -40		J
		min 21
NM500	Thickness	Hardness (HB)
	≤70mm	420~480
	＞70~100mm	450~540





Grade	Property			Impact test	HBW
NM600	Yield Mpa Min	Tensile Mpa	Elongation	Min J	Min 570
	Thickness mm	Thickness mm		Degree
	《70mm	<=60mm	%	-20





1. Superior Wear Resistance

NM500: 480–530 HBW

NM600: 570–630 HBW

✅️ NM600 offers maximum resistance in the most demanding environments.



2. Extended Service Life

Compared with lower grades:

NM500 significantly reduces wear

NM600 can extend service life by 50%+ in extreme conditions



3. High Strength Performance

Both grades provide:

High yield strength

Excellent load-bearing capacity

✅️ Suitable for heavy-duty structural applications.



4. Processing Characteristics

NM500: Easier to weld and fabricate

NM600: Requires controlled welding and cutting

✅️ Proper processing ensures optimal performance.





NM500 steel armor plate is widely used in engineering machinery, mining machinery, coal mining machinery, environmental protection machinery, metallurgical machinery, abrasives, bearings and other product parts.



Due to the excellent wear resistance of NM600 ballistic steel plate, it is widely used in applications that need to withstand high intensity wear, such as mining machinery, conveyor belts, excavators and other equipment. In these environments, NM600 wear-resistant steel plate can effectively reduce wear and prolong the service life of the equipment.





NM500 Applications (Heavy Wear + Impact)

• Excavator buckets
• Dump truck bodies
• Conveyor systems
• Construction equipment

✅️ Ideal for balanced wear and impact conditions



NM600 Applications (Extreme Abrasion)

• Mining crushers
• Cement plant liners
• High-wear chutes
• Quarry equipment

✅️ Best for severe abrasion with minimal impact





Feature	NM500	NM600
Hardness	High	Ultra-high
Wear Resistance	Excellent	Superior
Toughness	Better	Lower
Processing	Easier	More difficult
Cost	Moderate	Higher



✅️Selection Guide:

• Choose NM500 for versatility and easier fabrication
• Choose NM600 for maximum durability in extreme wear



Get A Quote For NM500 NM600 Abrasion Steel Plate



Looking for reliable NM500 or NM600 wear plates?



GNEE Steel offers:

• Competitive pricing
• Consistent quality
• Fast delivery

✅️ Contact us now for latest price, datasheet, and technical support



FAQ



What is the difference between NM500 and NM600 abrasion steel plate?

NM600 has higher hardness and better wear resistance than NM500, making it suitable for more extreme abrasion conditions, while NM500 offers better toughness and easier processing.

---



Is NM600 better than NM500 for all applications?

No, NM600 is better for severe wear, but NM500 is more suitable for applications involving impact and easier fabrication requirements.

---



What is NM500 steel plate used for?

NM500 is commonly used in mining equipment, construction machinery, and material handling systems where both wear resistance and toughness are required.

---



What is NM600 steel plate used for?

NM600 is used in extreme wear environments such as crushers, liners, and high-abrasion industrial equipment.

---



What is the hardness of NM500 and NM600 steel?

NM500 typically has a hardness of 480–530 HBW, while NM600 ranges from 570–630 HBW.

---



Is NM600 difficult to weld?

Yes, NM600 requires preheating and controlled welding procedures to prevent cracking due to its ultra-high hardness.

---



Can NM500 and NM600 be processed easily?

NM500 is relatively easy to process, while NM600 requires more advanced cutting and machining techniques.

---



How long does NM600 last compared to NM500?

NM600 can last significantly longer, often improving service life by 50% or more in high-abrasion conditions.

---



How to choose between NM500 and NM600?

Choose NM500 for balanced performance and NM600 for extreme wear resistance where service life is critical.

---



Is NM600 worth the higher cost?

Yes, in severe wear environments, NM600 reduces maintenance and replacement costs, making it more cost-effective over time.
