Clad Steel Plate

Clad Steel Plates,also called Roll-bonded plates, are our answer to the issue of corrosion resistance. GNEE STEEL are a world leader in roll-bonded plates.



GNEE STEEL, the world's leading manufacturer of roll-bonded clad plates,offer clad plates, clad heads and clad cones from a single source.
As a manufacturer with several decades of experience in roll bonding, we are your reliable partner in the linepipe, pressure vessel and apparatus industry. We understand our customers, provide the quality they need and have a large capacity to produce roll-bonded clad plates.



What is Clad Steel Plate?



Clad plate is a multi-layer plate which combines a carbon or low alloy steel plate (backing or backer) with a thin layer of corrosion resistant grade (cladding or clad).



Clad steel plate, which are based on carbon structural steels, low alloy high strength structural steels or high strength quenched andtempered steels as the base plate, single or both sides combined with stainless steel, special steel, etc. in a certain degree through the clad rolling technology, to produce the clad steel plates.



This base material-cladding material combined mode, realizes different kinds of steel material properties blending into one. In the use of functions, both the base plate strength as a structural component meets the requires of customers' machining and processing performance, and the cladding material with excellent corrosion resistance, wear resistance, high strength are obtained. Moreover, clad steel plates, compared to the original single cladding plate production, have substitution and high cost performance. Therefore, clad steel plates is a more economical and efficient Cladding product.



Size and Grade

Thickness Heavy plate(5-400mm),
Hot rolled coil(1.5-25.4mm),
Cold rolled coil(0.17-4.5mm)
Width Heavy plate(900-4500mm),
Hot rolled coil(600-1600mm),
Cold rolled coil(700-1500mm)
Cladding layer quantity Single side cladded / Double side cladded
Base plate material Q235A, Q235B, Q235C, Q345A, Q345B, Q345C, SS400, Q245R, Q345R, Q390, Q420, Q460, Q550, Q690, S355M, S420M, S460M,X52, X65, X70, 12CrMo, 12CrMoR., 14CrMo.14CrMoR, 15CrMo, 15CrMoR, SA516Gr.70, SA387Gr.11, SA387Gr.12, SA387Gr.22, SA533CL1, A/B/D/E DH32, DH36, EH36, EH40, FH36, FH40
Transition layer material 304, 304L, 305, 308, 309S, 310S, 312, 316, 316L, 317, 317L, 321, 347, 2506, 2507, 405, 429, 430, 434, 443, 403, 410, 420, 431, 630, 631, 632
Cladding plate material 304, 304L, 305, 308, 312, 347, 405, 429, 430, 403, 410, 410S, 420, 431, 434, 443, 632



Clad Steel Plate Typical Products From GNEE

Product Steel grade Thickness(mm)
Pipeline for Strongly acidic gas S31254+Q345B 8-20
Nickel Based Alloy Clad Steel 825+X65 3+22
Cold-Rolled Steel Sheet for Elevator 304L+BDT01+304L
Special Ferritic Stainless Steel Clad Plate for the Application of Precast Concrete Mold Special ferritic stainless stee+Q345 10
Duplex Stainless Steel Clad Plate S32205
+Q345C		 4+20
Clad Plate for Wear-Resisting Pipe 30Cr13+Q235B 30Cr13+Q235B 6+8
Clad plate for corrosion resistant pipeline 316L+Q345B 3+10
ASTM B898 Clad steel plate
P265GH+410 Clad steel plate A537CL1+304L Clad steel plate
A516Gr70(NACE)+410 Clad steel plate A516Gr70+304L Clad steel plate
A516Gr70+410 Clad steel plate S355JR+304L Clad steel plate
A537CL1+410 Clad steel plate Q345B+304L Clad steel plate
S355JR+410 Clad steel plate Q235B+304L Clad steel plate
A537CL1+904L Clad steel plate A537CL1+304 Clad steel plate

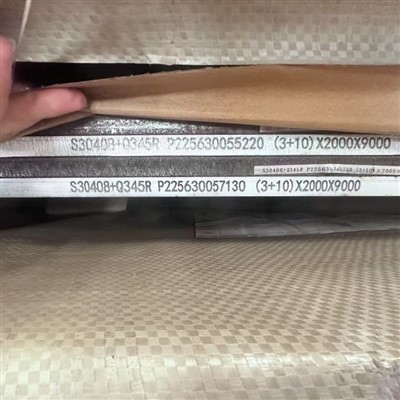

A516Gr70+904L Clad steel plate A516Gr70+304 Clad steel plate
P265GH+904L Clad steel plate S355JR+304 Clad steel plate
A516Gr70+316 Clad steel plate Q345B+304 Clad steel plate
A537CL1+316L Clad steel plate Q235B + 304 Clad steel plate
A516Gr70+316L Clad steel plate Q345R+304 Clad steel plate
S355JR+316L Clad steel plate S32205+Q345C Clad steel plate
First
123
Last
Clad Steel Base Materials
We mainly use
» Structural steels
» Pressure vessel steels
» Linepipe steels
Depending on the requirements of the respective standards and customer specifications as well as on the required corrosion resistance of the cladding materials, we provide the following delivery conditions:
» As rolled with simulated testing
» Normalizing rolled
» Normalized (furnace)
» Normalized and tempered
» Quenched and tempered
» Thermomechanically rolled and accelerated cooled (TMCP)

In the table below,you will find a summary of the most applicable base materials for roll-bonded clad plates. Other base materials on request. The indicated chemical and mechanical data refer to the smallest thickness group.
  Chemical composition (heat analysis)%   Mechanical Prpperties
Standard Steel grade   C
max.		 Si
max.		 Mn
max.		 P
max.		 S
max.		 Cr
max.		 Ni
max.		 Mo
max.		 Yield strength
min.[MPa]		 Tensile strength
[MPa]		 Comparable
ASTM- steel grade
EN10025-2 S235JR 0.17 - 1.40 0.035 0.035 - - - 235 360-510 -
S355JR 0.24 0.55 1.60 0.035 0.035 - - - 355 510-680 -
EN10028-2 P235GH 0.16 0.35 0.60-1.20 0.025 0.010 0.30 0.30 0.08 235 360-480 A285 GradeC
P265GH 0.20 0.40 0.80-1.40 0.025 0.010 0.30 0.30 0.08 265 410-530 A516 Grade60
P295GH 0.08-0.20 0.40 0.90-1.50 0.025 0.010 0.30 0.30 0.08 295 460-580 A516 Grade6 5
P355GH 0.10-0.22 0.60 1.10-1.70 0.025 0.010 0.30 0.30 0.08 355 510-650 A516 Grade70
16Mo3 0.12-0.20 0.35 0.40-0.90 0.025 0.010 0.30 0.30 0.25-0.35 275 440-590 -
20MnMoNi4-5 0.15-0.23 0.40 1.00-1.50 0.020 0.010 0.20 0.40-0.80 0.45-0.60 470 590-750 A533 Type B Class2
13CrMo4-5 0.08-0.18 0.35 0.40-1.00 0.025 0.010 0.70-1.15 - 0.40-0.60 300 450-600 A387 Grade12 Class2
10CrMo9-10 0.08-0.14 0.50 0.40-0.80 0.020 0.010 2.00-2.50 - 0.90-1.10 310 480-630 -
12CrMo9-10 0.10-0.15 0.30 0.30-0.80 0.015 0.010 2.00-2.50 0.30 0.90-1.10 355 540-690 A387 Grade22 Class2
13CrMoV9-10 0.11-0.15 0.10 0.30-0.60 0.015 0.005 2.00-2.50 0.25 0.90-1.10 455 600-780 A542 Type D Class4
EN 10028-3 P275 NH 0.16 0.40 0.80-1.50 0.025 0.010 0.30 0.50 0.08 275 390-510 A516 Grade60
P275 NL1 0.16 0.40 0.80-1.50 0.025 0.008 0.30 0.50 0.08 275 390-510 A516 Grade60
P275 NL2 0.16 0.40 0.80-1.50 0.020 0.005 0.30 0.50 0.08 275 390-510 A516 Grade60
P355 NH 0.18 0.50 1.10-1.70 0.025 0.010 0.30 0.50 0.08 355 490-630 A516 Grade70
P355 NL1 0.18 0.50 1.10-1.70 0.025 0.008 0.30 0.50 0.08 355 490-630 A516 Grade70
P355 NL2 0.18 0.50 1.10-1.70 0.020 0.005 0.30 0.50 0.08 355 490-630 A516 Grade70
P460 NH 0.20 0.60 1.10-1.70 0.025 0.010 0.30 0.80 0.10 460 570-730 A572 Grade65
P460 NL1 0.20 0.60 1.10-1.70 0.025 0.008 0.30 0.80 0.10 460 570-730 A572 Grade65
P460 NL2 0.20 0.60 1.10-1.70 0.020 0.005 0.30 0.80 0.10 460 570-730 A572 Grade65



Base Materials:structural Steels And Pressure Vessel Steels

According To ASTM

  Chemical composotion(heat analysis)% Mechanical properties
Standard Steel grade C
max.		 Si
max.		 Mn
max.		 P
max.		 S
max.		 Cr
max.		 Ni
max.		 Mo
max.		 Yield strength
min.[MPa]		 Tensile strength
[MPa]		 Comparable steel grade of EN10028
ASTM A285 GradeC 0.28   0.9 0.025 0.025       205 380-515 P235GH
A516 Grade60 0.21 0.15-0.40 0.60-0.90 0.025 0.025     - 220 415-550 P275
A516 Grade65 0.24 0.15-0.40 0.85-1.20 0.025 0.025     - 240 450-585 P355
A516 Grade70 0.27 0.15-0.40 0.85-1.20 0.025 0.025     - 260 485-620 P355
A572Grade65 Type1 0.23 0.4 1.65 0.04 0.05       450 ≥550 P460
A204 Grade A 0.18 0.15-0.40 0.9 0.025 0.025     0.45-0.60 255 450-585 16Mo3
A204 Grade B 0.2 0.15-0.40 0.9 0.025 0.025     0.45-0.60 275 485-620 16Mo3
A302 Grade B 0.2 0.15-0.40 1.15-1.50 0.025 0.025   - 0.45-0.60 345 550-690 18MnMo4-5
A533 Type B Class1 0.25 0.15-0.40 1.15-1.50 0.025 0.025   0.40-0.70 0.45-0.60 345 550-690 20MnMoNi4-5
A533 Type B Class2 0.25 0.15-0.40 1.15-1.50 0.025 0.025 - 0.40-0.70 0.45-0.60 485 620-795 20MnMoNi4-5
A387Grade11 Class2 0.05-0.17 0.50-0.80 0.40-0.65 0.025 0.025 1.00-1.50 - 0.45-0.65 310 515-690 13CrMoSi5-5
A387 Grade12 Class2 0.05-0.17 0.15-0.40 0.40-0.65 0.025 0.025 0.80-1.15 - 0.45-0.60 275 450-585 13CrMo4-5
A387 Grade22 Class2 0.05-0.15 0.5 0.30-0.60 0.025 0.025 2.00-2.50 - 0.90-1.10 310 515-690 12CrMo9-10
A542 Type D Class4 0.11-0.15 0.1 0.30-0.60 0.015 0.01 2.00-2.50 0.25 0.90-1.10 380 585-760 13CrMoV9-10
A841 Grade A Class1 0.2 0.15-0.50 0.70-1.60 0.03 0.03 0.25 0.25 0.08 345 485-620 P355

Base Materials: Fitting Steels And Linepipe Steels

According To ASTM,API5L And DNVGL-ST-F101

  Chemical composition(heat analysis) % Mechanical properties
Standard Steel grade C
max.		 Si
max.		 Mn
max.		 P
max.		 S
max.		 Cr
max.		 Ni
max.		 Cu
max.		 M0
max.		 v
max.		 Yield strength
min.[MPa]		 Tensile strength
[MPa]		 Comparable steel grade of ASTM/DNVGL/API
ASTM A106 GradeB 0.3 0.1 0.29-1.06 0.035 0.035 0.4 0.4 0.4 0.15 0.08 240 415 ASTM A516 Grade65
A672 GradeC60 0.21 0.15-0.40 0.60-0.90 0.025 0.025 - - - - - 220 415-550 ASTM A516 Grade60
A672GradeC70 0.27 0.15-0.40 0.85-1.20 0.025 0.025 - - - - - 260 485-620 ASTM A516Grade70
ASTM A860 WPHY42 0.2 0.15-0.40 1.00-1.45 0.03 0.01 0.3 0.5 0.35 0.25 0.1 290 415-585 -
WPHY52 360 455-625
WPHY60 415 515-690
WPHY 65 450 530-705
API 5L GradeB-PSL2 0.22 0.45 1.2 0.025 0.015 - - - - - 245-450 415-655 DNVGL SAWL245
X52-PSL2 0.22 0.45 1.4 0.025 0.015 - - - - - 360-530 460-760 DNVGL SAWL 360
X60-PSL2 0.12 0.45 1.6 0.025 0.015 - - - - - 415-565 520-760 DNVGL SAWL415
X65-PSL2 0.12 0.45 1.6 0.025 0.015 - - - - - 450-600 535-760 DNVGL SAWL450
DNVGL-ST-F101 SAWL245 0.12 0.4 1.25 0.02 0.01 0.3 0.3 0.35 0.1 0.04 245-450 415-760 API 5L GradeB
SAWL 360 0.12 0.45 1.65 0.02 0.01 0.5 0.5 0.5 0.5 0.05 360-525 460-760 API 5L X52
SAWL415 0.12 0.45 1.65 0.02 0.01 0.5 0.5 0.5 0.5 0.08 415-565 520-760 APL 5L X60
SAWL450 0.12 0.45 1.65 0.02 0.01 0.5 0.5 0.5 0.5 0.1 450-570 535-760 API 5L X65



Clad Materials For The Roll-bonded Clad Plates

We mainly use Ferritic and austenitic stainless steels and heat-resistant steels.

Standard EN material number Steel grade Chemical composition(heat analysis)% Mean pitting resistance equivalent number(PREN)
Cr+3.3Mo+16n[%]		 Comparable ASTM A240/ASME SA240 type
      C max Si max Mn max P max S max Cr Ni Mo Others
‌EN 10088‌ 1.4000 X6Cr13 0.08 1.0 1 0.4 0.03 12.0-14.0 - - - - 410S
1.4301 X5CrNi18-10 0.07 1.0 2 0.045 0.03 17.5-19.5 8.0-10.5 - N ≤0.10 - 304
1.4306 X2CrNi19-11 0.03 1.0 2 0.045 0.03 18.0-20.0 10.0-12.0 - N ≤0.10 - 304L
1.4541 X6CrNiTi18-10 0.08 1.0 2 0.045 0.03 17.0-19.0 9.0-12.0 - 5×C ≤Ti ≤0.70 - 321
1.4550 X6CrNiNb18-10 0.08 1.0 2 0.045 0.015 17.0-19.0 9.0-12.0 - 10×C ≤Nb ≥1.00 - 347
1.4401 X5CrNiMo17-12-2 0.07 1.0 2 0.045 0.03 16.5-18.5 10.0-13.0 2.0-2.5 N ≤0.10 25 316
1.4404 X2CrNiMo17-12-2 0.03 1.0 2 0.045 0.03 16.5-18.5 10.5-13.5 2.0-2.5 N ≤0.10 25 316L
1.4571 X6CrNiMoTi17-12-2 0.08 1.0 2 0.045 0.03 16.5-18.5 10.0-13.0 2.0-2.5 5×C ≤Ti ≤0.70 25 316Ti
1.4432 X2CrNiMo17-12-3 0.03 1.0 2 0.045 0.03 16.5-18.5 10.5-13.0 2.5-3.0 N ≤0.10 27 316L Mod Mo ≥2.5
1.4435 X2CrNiMo18-14-3 0.03 1.0 2 0.045 0.03 17.0-19.0 12.5-14.5 2.5-3.0 N ≤0.10 28 316L Mod Mo ≥2.5
1.4429 X2CrNiMo17-13-3 0.03 1.0 2 0.045 0.015 16.5-18.5 11.0-13.0 2.5-3.0 N=0.12-0.22 29 316LN Mod Mo ≥2.5
1.4438 X2CrNiMo18-15-4 0.03 1.0 2 0.045 0.03 17.5-19.5 13.0-16.0 3.0-4.0 N ≤0.10 31 317L
1.4439 X2CrNiMoN17-13-5 0.03 1.0 2 0.045 0.015 16.5-18.5 12.5-14.5 4.0-5.0 N=0.12-0.22 35 317LMN
‌SEW 470‌ 1.4828 X15CrNiSi20-12 0.20 1.5-2.5 2 0.045 0.015 19.0-21.0 11.0-13.0 - N ≤0.10 - -



      Chemical composition(heat analysis)% Mean pitting resistance equivalent number(PREN)
Cr+3.3Mo+16n[%]		 Comparable grade of EN 10088
Standard EN material number Steel grade C max Si max Mn max P max S max Cr Ni Mo Others
‌ASTM A240 and ASME SA240‌ S41008 410S 0.08 1 1 0.4 0.03 11.5-13.5 max 0.60 - - - 1.4
S30400 304 0.07 0.75 2 0.045 0.03 17.5-19.5 8.0-10.5 - N ≤0.10 - 1.4301
S30403 304L 0.03 0.75 2 0.045 0.03 17.5-19.5 8.0-12.0 - N ≤0.10 - 1.4306
S32100 321 0.08 0.75 2 0.045 0.03 17.0-19.0 9.0-12.0 - 5×(C+N) ≤Ti ≤0.70 - 1.4541
S34700 347 0.08 0.75 2 0.045 0.03 17.0-19.0 9.0-13.0 - 10×C ≤Nb ≥1.00 - 1.455
S31600 316 0.08 0.75 2 0.045 0.03 16.0-18.0 10.0-14.0 2.0-3.0 N ≤0.10 25 1.4401
S31603 316L 0.03 0.75 2 0.045 0.03 16.0-18.0 10.0-14.0 2.0-3.0 N ≤0.10 25 1.4404
- 316L Mod Mo ≥2.5 0.03 0.75 2 0.045 0.03 16.0-18.0 10.0-14.0 2.5-3.0 N ≤0.10 27 1.4432/1.4435
S31635 316Ti 0.08 0.75 2 0.045 0.03 16.0-18.0 10.0-14.0 2.0-3.0 5×(C+N) ≤Ti ≤0.70 25 1.4571
S31653 316LN 0.03 0.75 2 0.045 0.03 16.0-18.0 10.0-14.0 2.0-3.0 N=0.10-0.16 27 -
- 316LN Mod Mo ≥2.5 0.03 0.75 2 0.045 0.03 16.0-18.0 10.0-14.0 2.5-3.0 N=0.10-0.16 29 1.4429
S31703 317L 0.03 0.75 2 0.045 0.03 18.0-20.0 11.0-15.0 3.0-4.0 N ≤0.10 31 1.4438
S31726 317LMN 0.03 0.75 2 0.045 0.03 17.0-19.0 13.5-17.5 4.0-5.0 N=0.10-0.20 35 1.4439



    Chemical composition(heat analysis)% Mean pitting resistance equivalent number(PREN)
Cr+3.3Mo+16n[%]		 EN material number Comparable grade of EN/DIN/SEW material Sheet
ASTM Steel Grade C
max		 Si
max		 Mn
max		 P max S max Cr Ni Mo Others
B409 UNS N08800 Alloy 800 0.10 1.00 1.5 0.045 0.015 19.0-23.0 30.0-35.0 - Al=0.15-0.60
Ti=0.15-0.60
Cu≤0.75,Fe≥39.5		 - 1.4876 SEW470 412
A240/A240MUNS N08904 Alloy 904L 0.02 1.00 2.0 0.045 0.035 19.0-23.0 23.0-28.0 4.0-5.0 Cu=1.0-2.0
N≤0.10		 36 1.4539   421
B709 UNS N08028 Alloy 28 0.03 1.00 2.5 0.030 0.030 26.0-28.0 29.5-32.5 3.0-4.0 Cu=0.60-1.40 39 1.4563 EN 10088 -
B677 UNS N08926 Alloy 926 0.02 0.50 2.0 0.030 0.010 19.0-21.0 24.0-26.0 6.0-7.0 Cu=0.50-1.50
N=0.15-0.25		 44 1.4529   502
B463 UNS N08020 Alloy 20 0.07 1.00 2.0 0.045 0.035 19.0-21.0 32.0-38.0 2.0-3.0 Cu=3.0-4.0
8×C<(Nb+ Ta)<1.0		 28 2.4660 DIN 17744 -
B424 UNS N08825 Alloy 825 0.05 0.50 1.0 - 0.030 19.5-23.5 38.0-46.0 2.5-3.5 Ti=0.60-1.20
Fe>22.0, Al<0.2		 31 2.4858 DIN 17744 432
B443 UNS N06625 Alloy 625 0.10 0.50 0.5 0.015 0.015 20.0-23.0 >58.0 8.0-10.0 Nb=3.15-4.15
Al<0.40, Ti<0.40		 51 2.4856 DIN 17744 499
B575 UNS N06022 Alloy C22 0.015 0.08 0.5 0.020 0.020 20.0-22.5 rest 12.5-14.5 Fe=2.0-6.0
W=2.5-3.5
V<0.35, Co<2.50		 66 2.4602 DIN17744 479
B575 UNS N06455 Alloy C4 0.015 0.08 1.0 0.040 0.030 14.0-18.0 rest 14.0-17.0 Fe<3.0
Ti<0.70
Co<2.0		 67 2.461 DIN 17744 424
B575 UNS N10276 Alloy C276 0.01 0.08 1.0 0.040 0.030 14.5-16.5 rest 15.0-17.0 W=3.0-4.5
Fe=4.0-7.0
Co<2.5. V<0.35		 68 2.4819 DIN 17744 400
B575 UNS N06059 Alloy 59 0.01 0.10 0.5 0.015 0.010 22.0-24.0 rest 15.0-16.5 Al=0.1-0.4
Fe<1.5. Co<0.3
Cu<0.5		 75 2.4605 DIN 17744 505
B333 UNS N10665 Alloy B2 0.02 0.10 1.0 0.040 0.030 1 rest 26.0-30.0 Fe<2.0 Co<1.00 - 2.4617 DIN 17744 436
B168 UNS N06600 Alloy 600 0.15 0.50 1.0 - 0.015 14.0-17.0 >72.0   Fe=6.0-10.0
Cu <0.50		 - 2.4816 DIN 17742 305
B127 UNS N04400 Alloy 400 0.3 0.50 2.0 - 0.024 - >63.0   Cu=28.0-34.0
Fe<2.5		 - 2.4360 DIN 17743 263
B162 UNS N02200 Alloy 200 0.15 0.35 0.35 - 0.010 - >99.00   Fe<0.4 Cu<0.25 - 2.4066 DIN 17740 -
B162 UNS N02201 Alloy 201 0.02 0.35 0.35 - 0.010 - >99.00   Fe<0.4 Cu<0.25 - 2.4068   345
B152 UNS C10300 Copper - - - 0.001-0.005 - - -   Cu>99.95 - 2.007 DIN 1787 -
B152 UNS C12200 Copper - - - 0.015-0.040 - - -   Cu>99.90 - CW024A EN1652 -
B171 UNS C70600 Alloy CuNi90/10 - - 1.0 - - - 9.0-11.0   Fe=1.0:1.8, Cu rest.
Zn<1.0, Pb< 0.05		 - CW352H 420
B171 UNS C71500 Alloy CuNi70/30 0.05 - 1.0 - - - 29.0-33.0   Fe=0.40-1.0, Cu restZn<1.0, Pb<0.05 - CW354H -

As one of the leading clad steel plate manufacturers and suppliers in China, we warmly welcome you to buy clad steel plate in stock here and get free sample from our factory. All customized products are with high quality and low price.
