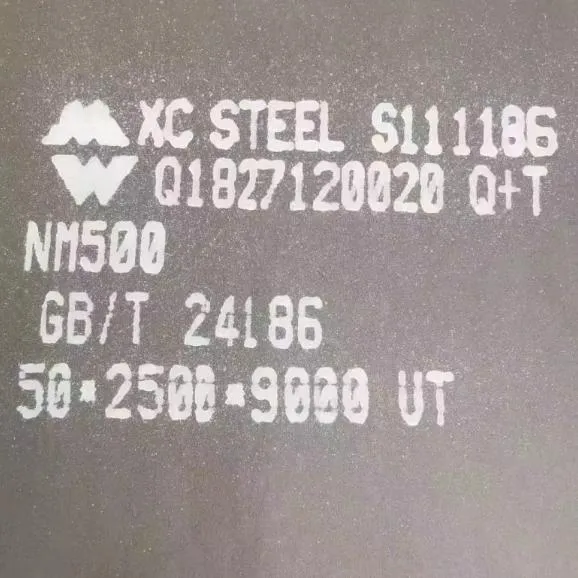

NM Series Resistant Steel

NM Series Resistant Steel

---

NM series of tempered wear-resistant steel has thin specification, good plate shape, stable performance and quality, and high production efficiency. This series of products are suitable for medium and heavy trucks, dump trucks, rubbish collection trucks, concrete mixer trucks, industrial fans, hoppers, crusher and so on. The physical performance, quality and delivery technical conditions of wear-resistant steel have reached the physical level of similar imported products abroad and are in the leading position in China.

The use of abrasion resistant steel instead of ordinary structural steel, can greatly reduce the thickness of steel plate, reduce the weight of the product, reduce energy consumption, energy saving and environmental protection.



Compared with the original model, the actual weight of the U-type mining dump truck processed by NM400 is reduced from 12 tonnes to 6 tonnes.



• NM300 abrasion steel instead of 520JJ can significantly improve the concrete mixer truck cylinder and rotor wear resistance, wear resistance can reach 520JJ more than twice, so that the service life can be significantly improved.
• NM450 wear plate steel hardness can reach more than 3 times the hardness of the Q345 structural steel, wear resistance can be increased by 2-3 times, so the service life of the steel plate is significantly extended.
• NM450 steel hardness can reach Q345 structural steel hardness more than 3 times, wear resistance can be increased by 2-3 times, so the service life of the steel plate is significantly extended.

The grades in this standard are divided into six grades: NM300, NM360, NM400, NM450, NM500, NM550 and NM600, which can be adapted to the needs of users.





Brand	C	Si	Mn	P	S	Cr	Mo	Ni	B	CEV
NM360	≤0.17	≤0.50	≤1.5	≤0.025	≤0.015	≤0.70	≤0.40	≤0.50	≤0.005
NM400	≤0.24	≤0.50	≤1.6	≤0.025	≤0.015	0.4~0.8	0.2~0.5	0.2~0.5	≤0.005
NM450	≤0.26	≤0.70	≤1.60	≤0.025	≤0.015	≤1.50	≤0.05	≤1.0	≤0.004
NM500	≤0.38	≤0.70	≤1.70	≤0.020	≤0.010	≤1.20	≤0.65	≤1.0	Bt: 0.005-0.06	0.65



NM550 Chemical Composition	steel plate	C	Si	Mn	P	S	Cr	Ni
	Thickness	%	%	%	%	%	%	%
	2-120mm	0.30-0.37	0.2-0.405	0.40-1.60	0.010-0.020	0.005-0.010	0.30-0.80	0.002-0.60



GRADE

Chemical Property(Quality Percent)/%

C

Si

Mn

P

S

Cr

Ni

Mo

Ti

Bta

AIs

CEV

≤

≥

≤

NM600

0.38

0.70

1.90

0.020

0.010

1.50

1．00

0.70

0.050

0.0005~0.006

0.010

0.76

Btastands for Boron content.





Brand	Thickness mm	Tensile Test MPa							Hardness
		YS Rel MPa		TS Rm MPa			Elongation %
NM360	10-50	≥620		725-900			≥16		320-400
NM400	10-50	≥620		725-900			≥16		380-460
NM450	10-50	1250-1370		1330-1600			≥20		410-490
NM500	10-50	---		----			≥24		480-525



Hardness	520-580HB
NM550 Mechanical Properties	10mm thickness steel plate typical value		Yield Strength		Tensile Strength		Elongation
			Re		Rm		A5
			Mpa		Mpa		%
			>1300		>1550		6
Impact Toughness	10mm thickness steel plate typical value		Test			Impact test
			Temperature			Charpy-V Longitudinal
			ºC			J
			-20			12



GRADE

Chemical Property(Quality Percent)/%

C

Si

Mn

P

S

Cr

Ni

Mo

Ti

Bta

AIs

CEV

≤

≥

≤

NM600

0.38

0.70

1.90

0.020

0.010

1.50

1．00

0.70

0.050

0.0005~0.006

0.010

0.76

Btastands for Boron content.





(1) Reduce its own weight: steel plate is based on the addition of a number of alloying elements required to design a series of low-alloy, high-strength wear-resistant steel plate, through the processing of steel plates, so that it can correspond to a variety of specifications of the high hardness (wear resistance). The result is a significant reduction in the weight of structural components.



(2) Excellent welding performance: Special consideration is given to the welding performance of the steel plate, under the premise of ensuring the wear resistance and mechanical properties of the steel plate, the carbon equivalent of the steel plate is reduced as much as possible, and a unique composition design is carried out. And through the corresponding process test, select the welding material with excellent matching, in both steel plate and welding material can be used with peace of mind.



(3) good toughness: through strict control of the chemical composition, minimise the content of harmful elements in the steel, choose reasonable heat treatment conditions, so that the steel plate has good toughness. As a result, it is possible to construct highly reliable structures against brittle damage of wear-resistant components.



(4) good processing performance: due to the uniformity of the steel plate performance control, excellent performance with good toughness, so the steel plate bending and processing and punching, cutting and other machining performance is excellent.












Our products have undergone strict quality testing and come with professional certificates. If you have any questions about NM Series Resistant Steel, please feel free to inspect.





Relying on many first-class equipment, such as CNC Shearing machine, Press Brake machine, Straightening machine, Roll Bending machine, Flat Bar Machine, Deburring machine etc, GNEE STEEL could provide various semi-productsand extensive forming services to customers.



GNEE STEEL  PROCESSING

1.CTL & SL SERVICE (141 SETS)

Currently, GNEE STEEL has imported manyadvanced CTL/SL equipment from Italy and Korea and could provide customized CTL/SL services from cold rolled stainless steel and carbon steel to hot rolled stainless steel and carbon steel as well as strips and ultra-wide sheet.

CTL FACILITIES
Max Length:16500mm

Max Width:2200mm

Max Thickness:25.4mm

Max Yield Strength:1500Mpa
SL FACILITIES

Max Width:2200mm

Max Thickness:18mm

Max slit Quantity:31

Max Yield Strength:1200Mpa



2.CUTTING SERVICE

GNEE STEEL imported lots of advanced cutting machines from Germany, Sweden, America and Japan, including plasmas cutting machine, water jet cutting machine, laser cutting machine, flame cutting machine and saw machine. In order to meet customers' diversified needs, GNEE STEEL also adopts nest working multi-cutting methods and intensive production to improve production capacity and save costs for the customers.

Laser Cutting Machine

Max Cutting Length:40,000mm

Max Width:4,600mm
Max Thickness:100mm



Flame Cutting Machine

Max Cutting Length:40,000mm

Max Width:8,000mm
Max Thickness:500mm

Plasmas Cutting Machine

Max Cutting Length:30,000mm

Max Width:5,000mm
Max Thickness:100mm



Water-jet Cutting

Max Cutting Length:12,000mm

Max Width:4,010mm
Max Thickness:250mm

3.FORMING SERVICE

Steel Plate Roll Bending
Maximum Rolling Thickness: up to 200mm
Maximum Width: 4200mm



Automatic Bending Machine-Press Brake
Max Bending Capability:3000Ton
Max Bending Length:15,000mm

Expert in Bending High-Strength & Wear-Resistant Steels





Punching Machine

Max Width:3,070mm
Max Thickness:8mm

Max Pressure:250t

BEVELING SERVICE

GNEE STEEL beveling platform has edge milling machine, edge planer, flame / plasma groove cutting machine, flame groove cutting robot, desktop chamfering machine, gantry planerand other advanced equipment to provide customers with parts prefabrication services,daily processing of V-type, Y-type, X-type and U-type grooves, and guarantee subsequent processes such as welding and assembly of products.



Milling：
Max Cutting Length:18,000mm

Max Width:4500mm
Max Thickness:120mm





Beveling:
Max Length:16,000mm

Max Thickness:80mm

MACHINING SERVICE

GNEE STEEL owns CNC Portal-type Boring and Milling machine,CNC Floor-type Boring and Milling machine, Vertical Precision 5-axis Milling Machine, Portal-type Planer, Vertical Lathe, Cylindical Grinding machine, Hydraulic Planer and CNC Lathe and could provide fine machining of large spare parts and structural parts for customers.

Gantry Type Boring & Milling Maching Center

Max Length:48000mm

Max Width:12500mm
Max Height:8000mm

Max Diameter:10500mm

Deep-hole Drilling Equipment
Max Driling Depth:1,100mm
Max Bore Diameter:φ80mm
Max Diametar:φ4,500mm

MMulti-hole Drilling Equipment

Max Length:13,000mm
Max Width:10,000mm
Max Bore Diameter:φ105mm
Max Drilling Depth:250mm

Floor Boring And Milling Machine
Max Length:24,000mm
Max Height:8,000mm
Turntable Dimensions:9x5m

Vertical Lathe

Max Height:6,000mm

Max Diametar:φ22,00mm

Automated Edge Milling Machine

The Automated Edge Milling Machine is a leading product in heavy-duty milling equipment. It is primarily used for weld groove preparation (beveling) on large-format plates made of stainless steel, carbon steel, and special steel grades. It can process plates with a maximum thickness of up to 90mm, a length of 16 meters, and a width of 4 meters.



It is equipped with dual milling units and a fully automatic milling cutter head changing system, enabling automated 4-edge beveling. Its standout feature is the profiling technology used when milling wavy plates and irregularly shaped products, which ensures absolute consistency of the groove after milling.



Utilizing specially designed milling cutter heads, it can execute highly difficult and complex groove profiles in a single pass.



Materials: Plain carbon steel, pressure vessel steel, wear-resistant steel, high-strength steel, stainless steel, nickel-based alloys, etc.
Width: 1200 - 4200 mm
Length: 5800 - 16000 mm
Thickness: 5 - 90 mm
Weight: Up to 35 tons



This edge milling machine is the world's premier automated bevel milling equipment. With its excellent structural design and advanced data algorithms, it achieves full automation from plate detection to the actual milling process, significantly improving processing efficiency while guaranteeing high precision.



• Processing Accuracy

Length accuracy: ±1mm when L < 10m; ±2mm when L > 10m;

Width accuracy: ±1mm;

Diagonal accuracy: ±2mm;

Root face accuracy (blunt edge): ±1mm for Y-grooves; +0.5mm for X-grooves.

• Processing Efficiency

The processing efficiency is more than 10 times that of conventional edge milling or edge planing equipment.

HEAT TREATMENT

Heat Treatment Furnace
Max Furnace Size:36x12x13.5m
Max Rated Temperature:1100℃
Max Loading Capacity:800t

Heat Treatment of Pressure Vessels
Heat Treatment of Mining Equipment
Heat Treatment of Tube Sheet
Heat Treatment of Pressure Vessel Head





GNEE STEEL is currently participating in the procurement phase of a 100,000m³ full containment ammonia storage tank project, supplying high-quality steel plates for critical tank components. Due to the corrosive nature of ammonia and the risk of Ammonia Stress Corrosion Cracking (SCC), the project requires strict metallurgical control of materials according to EN 10028-3 standards.



One of the most important technical requirements of this project is the strict limitation of the actual Yield Strength (Re) for all NL2 grade materials. To prevent SCC risks in ammonia storage environments, the actual yield strength must not exceed 390 MPa, regardless of the nominal values specified in the standard or plate thickness ranges. This requirement places higher demands on steelmaking process control, heat treatment stability, and material testing.



Raw high-strength steel plates ready for the 100,000 m³ full containment ammonia storage tank production



Project Materials and Technical Requirements



The project mainly uses P355NL2 and P275NL2 normalized pressure vessel steel plates, which are widely applied in low-temperature storage tanks due to their excellent toughness and weldability.



Key technical specifications include:

• Material grades: P355NL2 and P275NL2 (Normalized)
• Yield strength: Standard minimum / Maximum limited to 390 MPa
• Hardness: ≤ 225 HBW in base material
• Impact testing: Charpy-V notch test at -50°C, minimum 27J
• Certification: EN 10204 3.1 certificate, with optional 3.2 certification



These strict requirements ensure that the steel plates maintain stable mechanical properties and high resistance to ammonia-induced stress corrosion during long-term operation.



Precision rolling and forming of steel plates into curved sections for the 100,000 m³ ammonia storage tank.



Project Plate Quantities and Thickness Distribution



The total steel demand for this ammonia storage tank project is several thousand tons, mainly distributed across different tank sections:



P355NL2 – Inner & Outer Tank Shell Plates

• Lower shell courses: 50 mm thickness – approx. 2,000 tons
• Middle shell courses: 25 mm thickness – approx. 1,400 tons
• Upper shell courses: 10 mm thickness – approx. 500 tons



P275NL2 – Tank Bottom Plates

• Thickness: 10–15 mm – approx. 750 tons



P275NL2 – Suspended Roof Structure

• Thickness: 5–8 mm – approx. 180 tons



S275JR – Outer Roof (Ambient Structure)

• Thickness: 10 mm – approx. 450 tons



To improve tank fabrication efficiency and reduce circumferential welds, the project also requires wide steel plates to minimize welding joints, which helps reduce the potential risk of SCC in ammonia service conditions.



Formed steel segments wrapped and racked for protection, ready for 100,000 m³ ammonia storage tank assembly.



GNEE STEEL provides high-precision steel plate rolling and cylinder fabrication solutions for tank manufacturers worldwide. Send us your plate specifications or fabrication drawings for a fast quotation.

Request A Quote



TYPE	GRADE	SPECIFICATIONS
Carbon Steel / Low Alloy Coil	Q235A/B/C/D/Q355B(Q345B)/C/D/E/SS400/SAPH400-C/ASTMA283Grade C	0.7~2.0*1250/1500mm*C 2.3~19.5*1250/1500/1800/2000mm*C
Medium Heavy Plate	Q235B/Q355B(Q345B)/C/D/E	6.0-200x150mm-4000mmxL
Vessel Plate	Q245R/Q345R/HP295/SA516MGR485/SA516GR70/P355NL2/P275NL2/ S275JR//SPV490/ASTM A537 Class 1/Class 2	2.5-120x1500mm-3000mmxL
High Strength Steel	510L/610L/700L/750L/BS600MCK4/BS700MCK2/BS700MCK4/ BS960E/BWELDY700QL2/L4/BWELDY960QL4/HG60D/70D/785D/ Q460D/Q550D/690D/690E/TQ600MCD/TQ700MCD/S700MCD/ WYS600/700/STRENX700MCE/Q490E/Q490D	1.2-60x 1500mm-2500mmxL
Patterned Steel	HQ235A|B	1.2-60x 1500mm-2500mmxL
Wear-resistance Steel	NM360/400/450/500/NM300TP/400TP/450TP/ ABREX400/450/500/B-HARD450XKY/ CREUSABRO4800/8000/EH C400LE/450LE/500LE/ HADOX450/500	3.0-50x1250mm-3300mmxL
Cold Rolled Coil	DC01/RECC/REDT/SPCC/ST12	0.5-3.0x1250mm-1500mmxC
Galvanized Plate	DC51D+AZ/DC51D+Z/DX51D+Z/SGH340+Z275/Z275/Z120/S350GD+ZM275	0.45-3.0x1250mm-1500mmxC
Pickled Coil	DD11/SPHC	2.0-6.0x1500xC

Stainless Steel Material and Surface Specifications

TYPE	GRADE	THICKNESS	SURFACE
Austenitic	304/304H/304L/304J1	0.25-150mm	2B/BA/NO.4/8K/SB/HL/NO.1
Austenitic	321	0.4-80mm	2B/BA/NO.4/8K/SB/HL/NO.1
Austenitic	316/316L/317L/316Ti	0.3-80mm	2B/BA/NO.4/8K/SB/HL/NO.1
Austenitic	201(J1/J2/J5)	0.35-12mm	2B/NO.1/1D
Ferrite	430	0.4-3.0mm	2B/BA/NO.4/8K/SB/HL
Ultra Pure Ferrite	443	0.4-2.0mm	2B
Ultra Pure Ferrite	436L/439/444/441	0.5-3.0mm	2B/2D

Special Steel / Nickel Base Alloy

TYPE	GRADE	GRADE (ASTM)	GRADE (EN)	THICKNESS
Heat-resistant Steel	309S	S30908	1.4833	0.5-40mm
Heat-resistant Steel	310S	S31008	1.4845	0.5-40mm
Duplex Stainless Steel	2101	S32101	1.4162	1.5-50mm
Duplex Stainless Steel	2304	S32304	1.4362	3.0-50mm
Duplex Stainless Steel	2205	S32205/S31803	1.4462	0.5-60mm
Duplex Stainless Steel	2507	S32750	1.4410	1.0-60mm
Super Austenitic-Steel	904L	N08904	1.4539	0.6-50mm
Super Austenitic-Steel	254SMO	S31254	1.4547	0.5-50mm
Super Austenitic-Steel	1.4529	N08926	1.4529	0.5-50mm
Super Austenitic-Steel	AL-6XN	N08367	1.4478	0.5-50mm
Nickel Base Alloy	Alloy 31	N08031	1.4562	1.0-50mm
Nickel Base Alloy	800	N08800	1.4876	0.8-50mm
Nickel Base Alloy	800H	N08810	1.4958	0.8-50mm
Nickel Base Alloy	800HT	N08811	1.4959	0.8-50mm
Nickel Base Alloy	Alloy 28	N08028	1.4563	1.0-20mm
Nickel Base Alloy	Alloy 20	N08020	2.4660	1.0-20mm
Nickel Base Alloy	825	N08825	2.4858	0.8-40mm
Nickel Base Alloy	C276	N10276	2.4819	0.5-50mm
Nickel Base Alloy	C22	N06022	2.4602	1.0-50mm
Nickel Base Alloy	625	N06625	2.4856	0.8-20mm
Nickel Base Alloy	400	N04400	2.4360	1.0-20mm
Nickel Base Alloy	600	N06600	2.4816	1.0-50mm
Nickel Base Alloy	Pure Ni 201	N02201	2.4061	0.5-20mm
Titanium	TA1	Gr.1	Class 1	0.5-50mm
Titanium	TA2	Gr.2	Class 2	0.5-50mm
