Wear Resistant Steel Plate AR400
AR400 wear resistant metal is specifically designed for wear and abrasion resistant applications. Typical hardness of AR400 ranges from 360-444 BHN, slightly below AR450. Wear-resistant steels are graded on the basis of hardness rather than grain structure. AR400 is widely used in applications where abrasion resistance is required and is the preferred choice for cladding, flooring, and equipment housings in the industrial sector. AR400 steel wear plate material is particularly suited to applications that are subject to frequent impact and sliding forces and is recommended for lining in mining operations, as well as for tipping and dumping operations. AR400 abrasion wear resistant plate is particularly suitable for applications subject to frequent impact and sliding forces and is recommended for linings in mining operations, as well as material handling equipment such as dump trucks, material transfer chutes, storage silos, buckets and hoppers.
AR400 abrasion resistant metal mechanical property
| Weldability | Carbon equivalent of 0.79 Max - 0.72 Typical | ||
| Mechanical Properties (ASTM A370) | Hardness | 363-400 BH | (ASTM E10) |
| Yield Strength (Typical) | 172 Ksi | 1187 MPa | |
| Tensile Strength (Typical) | 191 Ksi | 1318 MPa | |
| Elongation 2" (Typical) | 10% (in 2") | 10% (in 50mm) | |
| Charpy V-Notch Impact (ASTM A673, A370) Bend Test |
Standard size, 17 foot pounds (23 joules) @ - 40deg C/F test temp, transverse direction hardness 363BHN. | ||
| 4T (up to .50inches - 12.5mm | |||
| Flatness | Standards are 50% of that specified in ASTM A-6. Special tolerances are available. | ||
| Thickness | The standards are 50% of that specified in ASTM A-6. Special tolerances are available. | ||
AR400 aR wear plate available size
| Thickness | Width | Length | Weight (lbs/ft) |
| 3/16" | 48.00" | 120.00" | 7.659 |
| 1/4" | 48.00" | 120.00" | 10.210 |
| 1/4" | 60.00" | 120.00" | 10.210 |
| 3/8" | 48.00" | 120.00" | 15.320 |
| 1/2" | 48.00" | 120.00" | 20.421 |
| 1/2" | 48.00" | 96.00" | 20.421 |

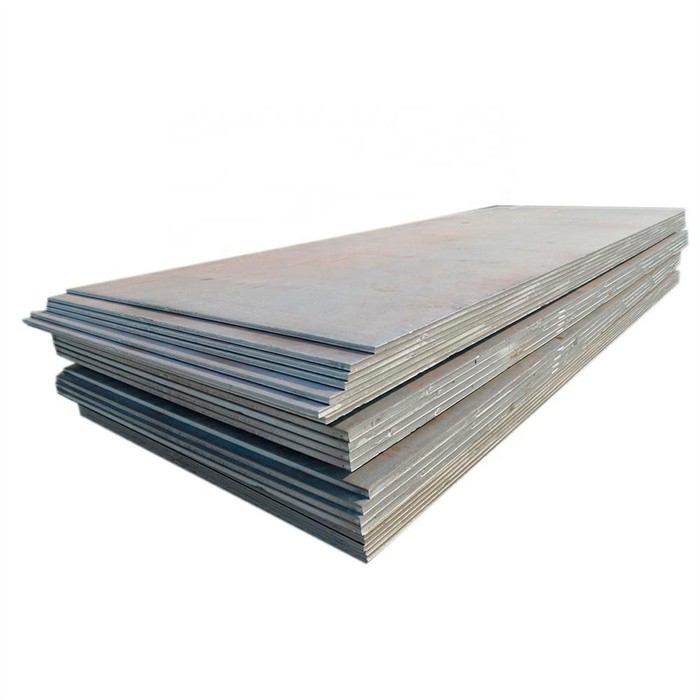

AR400 abrasion resistant wear plates product image
GNEE group team photo
GNEE group customer visit
GNEE Group participates in foreign steel exhibitions
We guarantee the quality and quantity of Wear Resistant Steel Plate AR400. If you would like more information, please contact us!
