AR450 Wear Resistance Plate
AR450 is a high carbon alloy steel composed of boron, carbon and other elements with a surface hardness of 420-470 Brinell.AR450 is a wear-resistant steel with a unique combination of hardness, formability, ductility and impact resistance. Steel plates are hardened and tempered by heating the plate, immersing the plate in water, reheating it, and then placing the plate in a room temperature area for drying to form a stronger crystalline structure.
AR450 abrasion resistant steel plate reduces problems caused by friction or scuffing and erosion in industrial wear applications. By reducing wear, it maximises production time and minimises downtime previously caused by worn parts; this also extends the life of the machine.
AR450 wear resistant steel plate chemical composition
| Thickness | 0.236" - 2.5" |
| Carbon | 0.25 |
| Manganese | 1.35 |
| Phosphorus | 0.025 |
| Sulfur | 0.005 |
| Silicon | 0.55 |
| Chromium | 0.55 |
| Molybdenum | 0.65 |
| Boron | 0.003 |
| Nickel | 1.00 |
AR450 wear plate steel mechanical property
| Tensile Strength | 170 ksi |
| Yield Strength | 206 ksi |
| Elongation in 2" | 18% -23% |
| *Tensile & yield testing is not standard, but available upon request. | |
AR450 wear resistant plate available size
| Thickness | 0.125" through 2.5" |
| Width | 48" to 120" |
| Length | 288" typical |
| Available in larger plates based on application | |
AR450 abrasion resistant wear plates application
AR450 is an abrasion-resistant plate suitable for a variety of applications requiring slightly higher strength than AR400.
Abrasion Resistant (AR) steel plates are typically produced in the rolled condition. These types/grades of steel plate products have been developed for extended service life under severe conditions.AR products are used in a variety of applications in mining/quarrying, conveyors, material handling and construction, and earthmoving. Designers and equipment operators choose AR plates when they are striving to extend the life of critical components and reduce the weight of each piece of equipment put into service. The benefits of using wear-resistant steel plates in applications involving impact and/or sliding contact with abrasive materials are enormous.

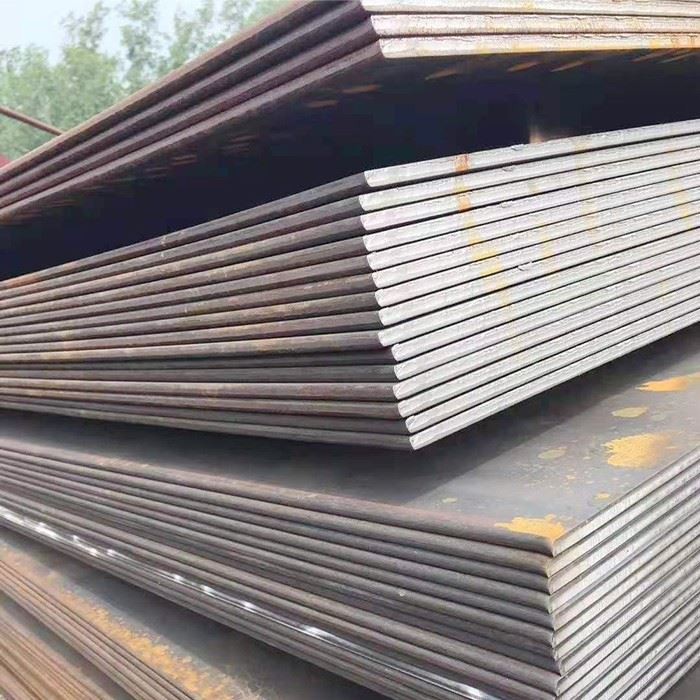

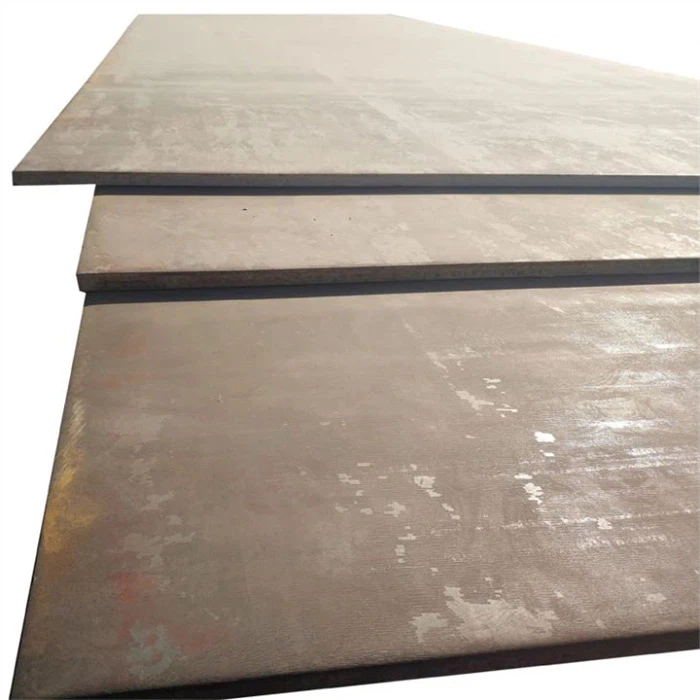

AR450 wear resistant metal Products image
GNEE group team photo
GNEE group customer visit
We have professional online service personnel. If you have any questions about AR450 Wear Resistance Plate, please send us an inquiry and we will reply to you within one working day.
