AR450 steel is a wear-resistant steel with a surface hardness of 420-470 durometer Brinell. It is a high carbon alloy steel composed of several different elements, including carbon and boron. Its unique composition and treatment gives it a higher surface hardness than AR400, while maintaining good ductility, formability and impact resistance.
AR450 ar plate steel chemical composition
|
Thickness mm/Cut lengths |
Heavy Plates |
C |
Si |
Mn |
P |
S |
Al |
Cr |
Ni |
Mo |
B |
|
3 – 12 |
5–30 |
0.20 |
0.70 |
1.70 |
0.030 |
0.015 |
0.060 |
1.50 |
0.40 |
0.50 |
0.004 |
|
-------- |
(30)– 60 |
0.24 |
0.70 |
1.70 |
0.030 |
0.015 |
0.060 |
1.00 |
0.70 |
0.50 |
0.004 |
AR450 wear resistant steel plate mechanical property
|
Thickness mm Cut lengths |
Heavy plates |
Yield strength |
Tensile strength |
ElongationA5 % |
HardnessrangeHBW |
Impactstrengtht°C KV J |
|
3 – 12 |
5 – 15 |
1000 |
1250 |
10 |
360 – 420 |
-40 40 |
|
-------- |
(15) – 30 |
1000 |
1250 |
10 |
380 – 450 |
-40 20 |
|
-------- |
(30) – 60 |
1100 |
1400 |
8 |
380 – 480 |
-40 20 |
AR450 specifications are available in EN 10029, EN 10051 and EN 10131. These plates are available in thicknesses from 6 mm to 130 mm. AR450 has a density of more than 9410 kg/m³ and has excellent tensile and yield strengths. These plates can be used under hardened and tempered conditions.AR450 steel plates are available in different sizes and shapes from suppliers on request.
AR450 is available in different grades and equivalents.AR450 is a wear-resistant steel.NM450 and AR450 are the other main differentiating grades in the wear-resistant steel grades.
Our Advantage
We can offer factory price and trading company service;
We strictly control the production quality to achieve zero error;
We guarantee to provide 24 hours response and 48 hours solution service;
We accept small quantity orders before formal co-operation;
That we provide high quality products with reasonable price, faster delivery and better payment terms;
That we have a professional team and factory;
The integrity of the company is very important in the transaction process, and so are we.

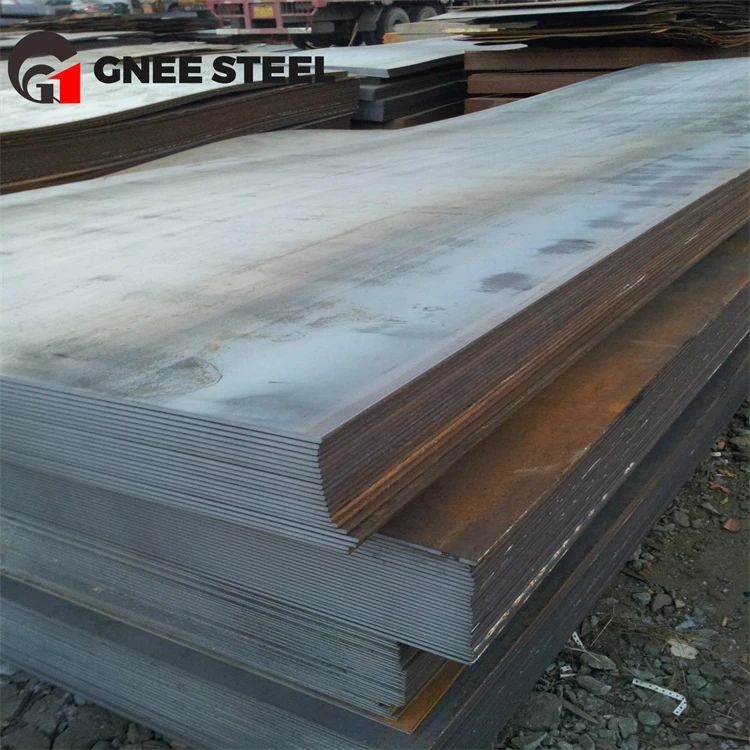

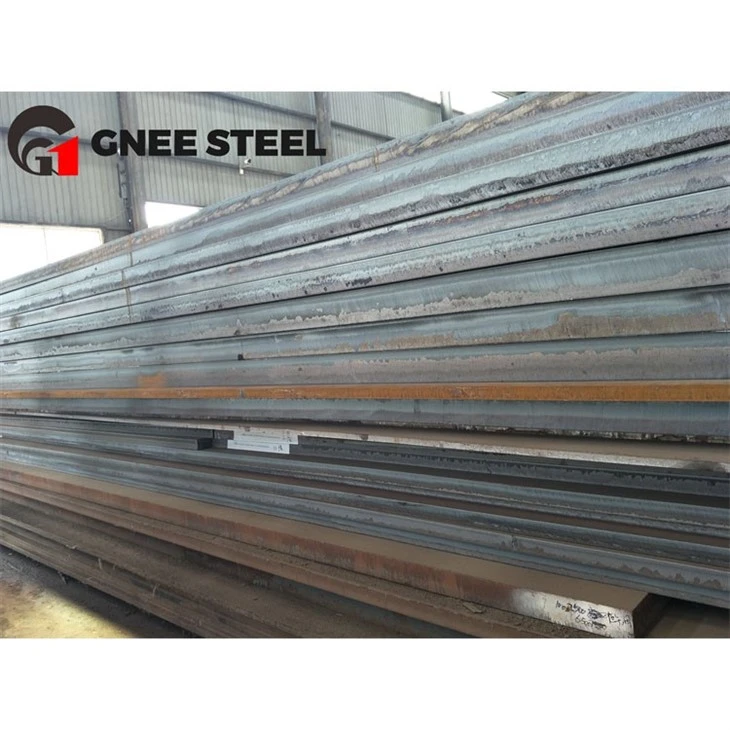

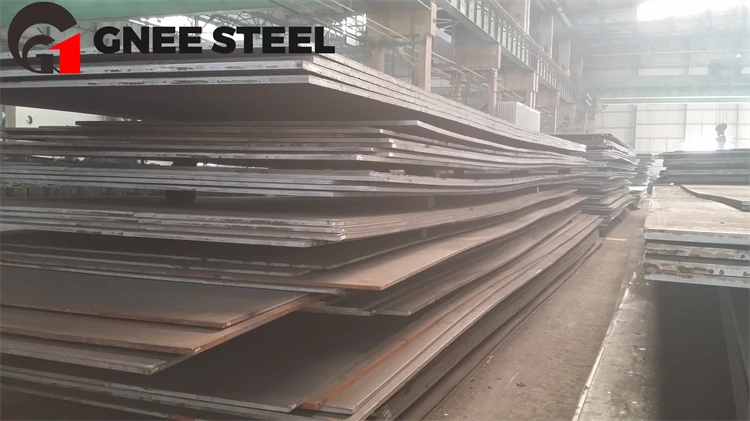

AR450 wear resistant plate image
GNEE Group team photo
GNEE Group customers visit
We have a professional online service staff. If you have any doubts about wear resistance steel plate, please send us inquiries and we will reply to you within a working day.
Hot Tags: ar450 plate, China ar450 plate manufacturers, suppliers, factory, abrasion resistant steel tube, cement industry abrasion resistant steel, marine abrasion resistant steel, abrasion resistant steel liners, transportation abrasion resistant steel, abrasion resistant steel chains
