Stainless Steel Channel 304L
Stainless steel 304L channels are an important component of many industrial and construction projects. Offers strength, durability and corrosion resistance. They contain up to 10% chromium, 18% nickel, 0.08% carbon and 2% manganese. SS 304L channel steel also contain 4-20% copper and some also contain phosphorus, sulfur and silicon. This diversity in chemical composition allows these channels to form into a variety of shapes and sizes. This makes them very useful in applications that require a combination of mechanical strength and corrosion resistance.

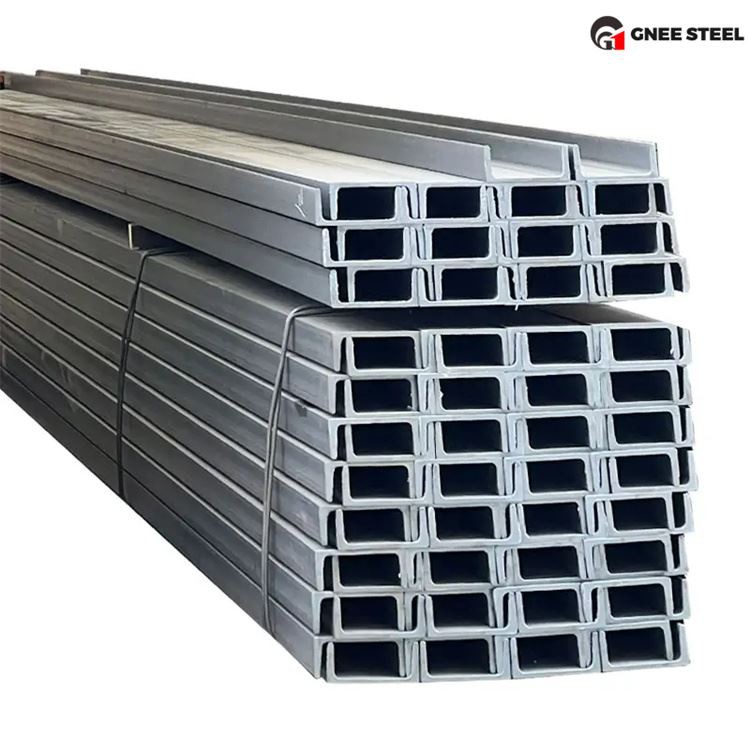

stainless channel section Products image
304L stainless channel chemical composition
| Element | % Present |
|---|---|
| Carbon (C) | 0.03 |
| Chromium (Cr) | 17.50 - 19.50 |
| Manganese (Mn) | 2.00 |
| Silicon (Si) | 1.00 |
| Phosphorous (P) | 0.045 |
| Sulphur (S) | 0.015b) |
| Nickel (Ni) | 8.00 - 10.50 |
| Nitrogen (N) | 0.10 |
| Iron (Fe) | Balance |
304L stainless channel steel mechanical property
| Property | Value |
|---|---|
| Proof Stress | 200 Min MPa |
| Tensile Strength | 500 - 700 MPa |
| Elongation | 45 Min% |
304L stainless steel channel sections physical properties
| Property | Value |
|---|---|
| Density | 8000.00 Kg/m3 |
| Melting Point | 1450 °C |
| Thermal Expansion | 17.2 x 10-6 /K |
| Modulus of Elasticity | 193 GPa |
| Thermal Conductivity | 16.2W/m.K |
| Electrical Resistivity | 0.072 x 10-6 Ω .m |
stainless channel section Products Details
Stainless channel is a long steel material with a groove-shaped cross-section. Like I-beams, stainless steel channel steels are also divided into ordinary channel steels and light-duty channel steels. The models and specifications are also expressed in millimeters of waist height (h) × leg width (b) × waist thickness (d). For example, 120×53×5 channel steel is a round steel with a waist height of 120mm. It needs to be distinguished by adding a, b, c, etc. to the right of the model number. Usually, the model of stainless steel channel steel is expressed in centimeters of waist height. For example, the above channel steel is called 12# channel steel. The specification range of channel steel beam is 5-40#. Including and marking requirements shall be implemented in accordance with GB2101-80.
304L stainless steel channel iron product image
GNEE group customer visit
We have enough Stainless Steel Channel 304L in stock, and we can also customize it according to your needs.
