H Shape Steel Beam

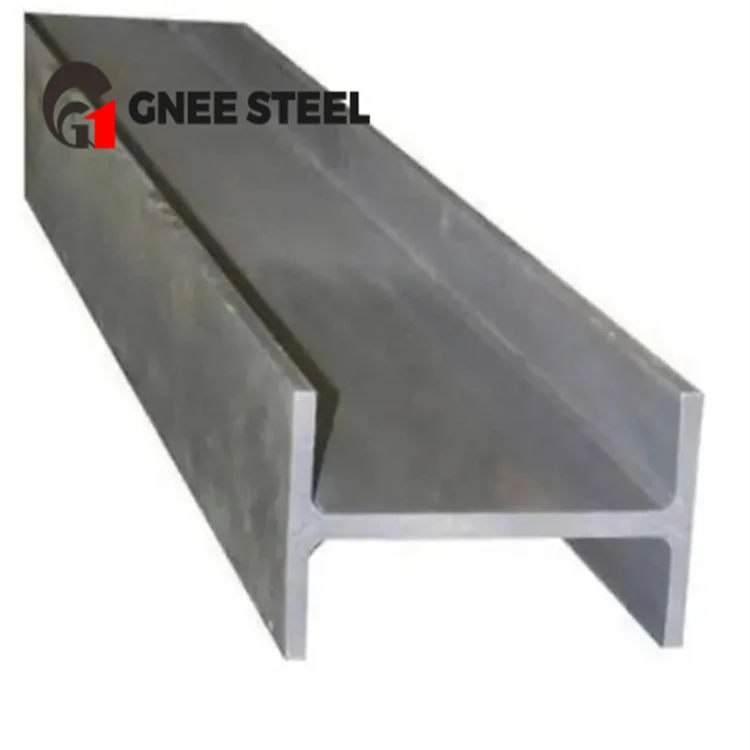

The products of H-shaped steel are not very complicated, because the common h profile steel on the market is used for steel structures. H steel is an economically efficient section with more optimized section area distribution and more reasonable strength-to-weight ratio, which is named because its section is the same as the English letter "H". Since all parts of H beam are arranged at right angles, this steel has the advantages of strong bending resistance, simple construction, cost saving and light structural weight in all directions, and has been widely used.
Products Description
The diagram below is the theoretical weight scale of h steel.
|
Category |
Model Number |
H*B(mm) |
t1(mm) |
t2(mm) |
Theoretical Weight |
|
HW |
200*200 |
200*200 |
8 |
12 |
50.5 |
|
200*204 |
12 |
12 |
56.7 |
||
|
250*250 |
250*250 |
9 |
14 |
72.4 |
|
|
250*255 |
14 |
14 |
82.2 |
||
|
300*300 |
294*302 |
12 |
12 |
85 |
|
|
300*300 |
10 |
15 |
94.5 |
||
|
300*305 |
15 |
15 |
106 |
||
|
350*350 |
344*348 |
10 |
16 |
115 |
|
|
350*350 |
12 |
19 |
137 |
||
|
400*400 |
388*402 |
15 |
15 |
141 |
|
|
394*398 |
11 |
18 |
147 |
||
|
400*400 |
13 |
21 |
172 |
||
|
400*408 |
21 |
21 |
197 |
||
|
414*405 |
18 |
28 |
233 |
||
|
428*407 |
20 |
35 |
284 |
||
|
458*417 |
30 |
50 |
415 |
||
|
498*342 |
45 |
70 |
605 |
||
|
HM |
150*100 |
148*100 |
6 |
9 |
21.4 |
|
200*150 |
194*150 |
6 |
9 |
31.2 |
|
|
250*175 |
244*175 |
7 |
11 |
44.1 |
|
|
300*200 |
294*200 |
8 |
12 |
57.3 |
|
|
350*250 |
340*250 |
9 |
14 |
79.7 |
|
|
400*300 |
390*300 |
10 |
16 |
107 |
|
|
450*300 |
440*300 |
11 |
18 |
124 |
|
|
500*300 |
482*300 |
11 |
15 |
115 |
|
|
488*300 |
11 |
18 |
129 |
||
|
600*300 |
582*300 |
12 |
17 |
137 |
|
|
588*300 |
12 |
20 |
151 |
||
|
594*302 |
14 |
23 |
175 |
||
|
HN |
100*50 |
100*50 |
5 |
7 |
9.54 |
|
125*60 |
125*60 |
6 |
8 |
13.3 |
|
|
150*75 |
150*75 |
5 |
7 |
14.3 |
|
|
175*90 |
175*90 |
5 |
8 |
18.2 |
|
|
200*100 |
198*99 |
4.5 |
7 |
18.5 |
|
|
200*100 |
5.5 |
8 |
21.7 |
||
|
250*125 |
248*124 |
5 |
8 |
25.8 |
|
|
250*125 |
6 |
9 |
29.7 |
||
|
300*150 |
298*149 |
5.5 |
8 |
32.6 |
|
|
300*150 |
6.5 |
9 |
37.3 |
||
|
350*175 |
346*174 |
6 |
9 |
41.8 |
|
|
350*175 |
7 |
11 |
50 |
||
|
400*150 |
400*150 |
8 |
13 |
55.8 |
|
|
400*200 |
396*199 |
7 |
11 |
56.7 |
|
|
400*200 |
8 |
13 |
66 |
||
|
450*150 |
450*150 |
9 |
14 |
65.5 |
|
|
450*200 |
446*199 |
8 |
12 |
66.7 |
|
|
450*200 |
9 |
14 |
76.5 |
||
|
500*150 |
500*150 |
10 |
16 |
77.1 |
|
|
500*200 |
496*199 |
9 |
14 |
79.5 |
|
|
500*200 |
10 |
16 |
89.6 |
||
|
506*201 |
11 |
19 |
103 |
||
|
600*200 |
596*199 |
10 |
15 |
95.1 |
|
|
600*200 |
11 |
17 |
106 |
||
|
606*201 |
12 |
20 |
120 |
||
|
700*300 |
692*300 |
13 |
20 |
166 |
|
|
700*300 |
13 |
24 |
185 |
||
|
800*300 |
792*300 |
14 |
22 |
191 |
|
|
800*300 |
14 |
26 |
210 |
||
|
900*300 |
890*299 |
15 |
23 |
213 |
|
|
900*300 |
16 |
28 |
243 |
||
|
912*302 |
18 |
34 |
286 |
h section steel Products Details
H type steel beam is also called universal steel beam, wide flange I-steel, parallel flange I-beam, is by the middle web connected on both sides of the parallel flange plate to form a cross-section of "H" shaped long steel. There are two kinds of production methods: welding and rolling, but because of the complex welding process and unstable performance, the production method is usually hot rolling.
The characteristics of H steel: 1.H beams in steel structures has higher strength, and the materials required to achieve the same strength requirements are less than I-steel, saving costs; 2. The structure is regular, easy to splice, more flexible in structural construction, and can improve space utilization; 3. Good structural stability. The structure constructed with H-section has high toughness and stability due to flat and tight connection, and is suitable for areas with frequent seismic activity. Therefore, H-Profile steel is widely used in many fields such as steel structure, housing construction, bridge, ship skeleton and so on.
shaped steel is usually divided into wide flange(HW), middle flange(HM) and narrow flange according(HN) to different flange widths, and the specifications are expressed by "web height h* flange width b* web thickness t1* flange thickness t2", such as "250*125*6*9" indicates the height of the web 250mm, the width of the flange 125mm, and the thickness of the web 6mm. H-shaped steel with flange thickness of 9mm.
h shaped steel Products image
GNEE group team photo
GNEE group customer visit
GNEE Group participates in foreign steel exhibitions
We support multi-specification and multi-specification steel customization. If you have customization needs for H Shape Steel Beam products, please contact me.
