E335 E355 Structural Steel H Beam
E335 H section beam is a low alloy steel with excellent mechanical properties. Low alloy steel is a type of steel to which a small amount of alloying elements are added to improve the properties of the steel.E335 steel has a certain proportion of molybdenum and chromium elements added to improve its strength and hardness.The tensile strength of E335 H section is 580-780MPa, which is a high-strength steel. Meanwhile, its yield strength is 335MPa, which is the reason why it is named E335.
E355 H metal beam is a common mechanical structural steel with good physical properties and processing performance. It is mainly composed of carbon (C), silicon (Si), manganese (Mn), sulphur (S), phosphorus (P) and chromium (Cr), etc. E355 has a high modulus of elasticity of about 2.1×10^5 MPa, which gives it good bending resistance and rigidity. Secondly, the steel has a tensile strength of about 630 MPa, which gives it good tensile properties and makes it suitable for use as the material of choice for important mechanical components.
E335
| P | S | N |
| max 0.045 | max 0.045 | max 0.012 |
E355
| C | Si | Mn | P | S |
| max 0.22 | max 0.55 | max 1.6 | max 0.045 | max 0.045 |
H-section steel beam sizes
| Classification (Height × Flange width) |
Standard cross-section dimensions (mm) |
Cross-sectional area(cm3) |
Unit mass (kg/m) |
|||
|---|---|---|---|---|---|---|
| H×B | t1 | t2 | r | |||
| 100×100 | *100×100 |
6 |
8 |
8 |
21.59 | 16.9 |
| 125×125 | 125×125 |
6.5 |
9 |
8 |
30.00 | 23.6 |
| 150×150 | 150×150 |
7 |
10 |
8 |
39.65 | 31.1 |
| 175×175 | 175×175 |
7.5 |
11 |
13 |
51.43 | 40.4 |
| 200×200 | 200×200 *200×204 |
8 |
12 |
13 |
63.53 71.53 |
49.9 56.2 |
| 250×250 | *244×252 250×250 *250×255 |
11 |
11 |
13 |
81.31 91.43 103.9 |
63.8 71.8 81.6 |
| 300×300 | *294×302 300×300 *300×305 |
12 |
12 |
13 |
106.3 118.5 133.4 |
83.4 93.0 105.0 |
| 350×350 | *344×348 *344×354 350×350 |
10 |
16 |
13 |
144.0 164.6 171.9 |
113.0 129.0 135.0 |
| 400×400 | 400×400 |
13 |
21 |
22 |
218.7 | 172.0 |

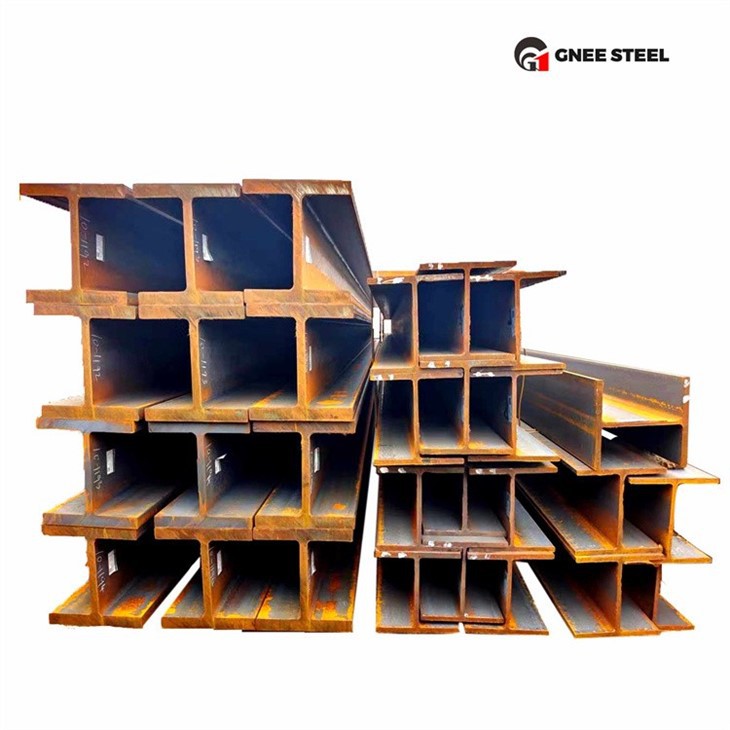

h section steel column product image
GNEE group team photo
GNEE group customer visit
We have excellent after-sales service. If you have any questions about E335 E355 Structural Steel H Beam, you can contact us and we will reply to you within two hours.
