Boiler Grade P460NL2 Steel Plate
P460NL2 boiler plate is one of the steel grades in EN10028-3, which is a non-alloy steel and alloy steel with specific high temperature properties. P460NL2 pressure vessel steel plate is mainly used to make boilers, pressure vessels and pipes for conveying hot liquids.
P460NL2 vessel steel plate is one of the main high yield steels, boiler steel plate P460NL2 tensile strength is 570-720 Mpa (thickness below 60mm), even maximum 730 Mpa (product thickness up to 16mm) is also available.
P460NL1 steel boiler plate chemical composition
| Grade | C max | Si max | Mn | P max | S max | Al min | N max |
| P460 NL2 | 0.20 | 0.60 | 1.10-1.70 | 0.020 | 0.010 | 0.020 | 0.025 |
P460NL2 pressure vessel plate mechanical property
| Grade | Thickness, t,mm | Tensile strength,Rm ,MPA | Elongation % | Yield strength,ReH,mpa,min |
| P460 NL2 | ≤16 | 570-720 | 17 | 460 |
| 16 | 445 | |||
| 40 | 430 | |||
| 60 | 540-710 | 400 | ||
| 100 | -- | -- | -- |
P460NL2 vessel steel plate Impact energy value
a) transverse
|
-50 OC |
-40 OC |
-20 OC |
0 OC |
+20 OC |
|
- |
27 J min |
35 J min |
50 J min |
60 J min |
b) longitudinal
|
-50oC |
-40oC |
-20oC |
0 OC |
+20oC |
|
30 J min |
40 J min |
50 J min |
70 J min |
80 J min |

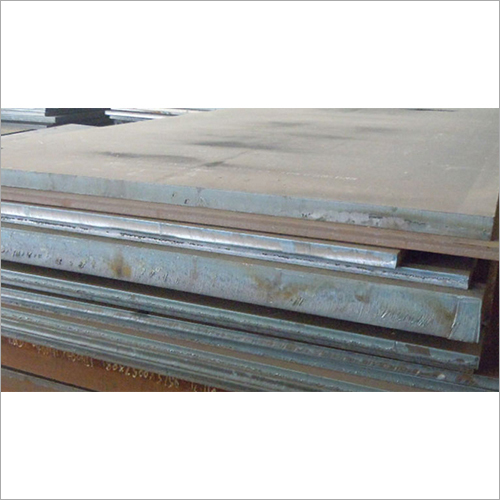

Pressure Vessel (PVQ) Steel Plate Products image
GNEE group team photo
GNEE group customer visit
GNEE Group steel exhibition
We have professional online service staff. If you have any questions about Boiler Grade P460NL2 Steel Plate, please send us an inquiry and we will reply you within one working day.
