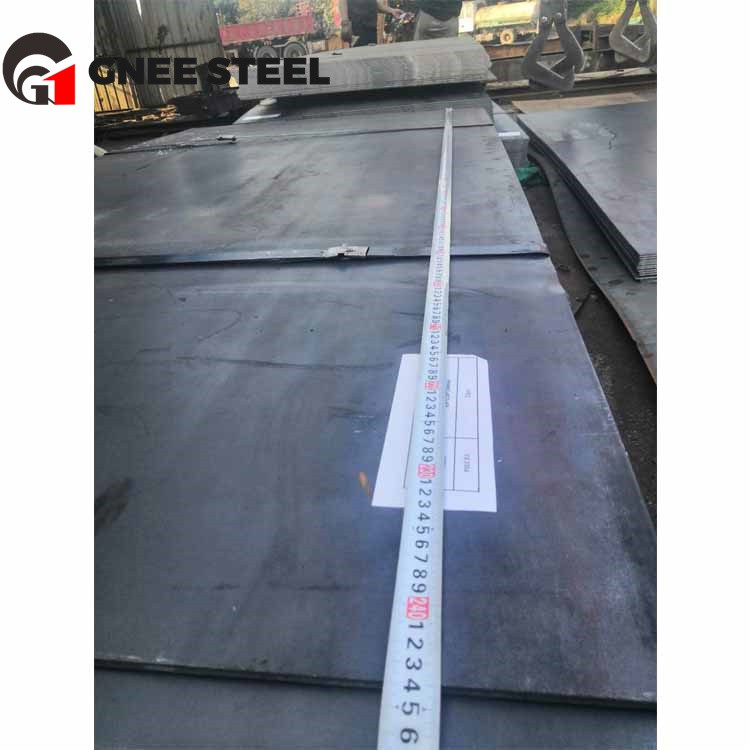

16Mo3 Alloy Boiler Plate
16Mo3 boiler plate is a kind of boiler steel plate, which is usually used to manufacture high temperature and high pressure vessels and boiler components.
16Mo3 vessel plate has excellent heat resistance and pressure resistance, and is suitable for working temperatures up to about 530 degrees Celsius.
At the same time, 16Mo3 pressure vessel plate material is able to maintain stable performance at elevated working temperatures with good heat and corrosion resistance, and is able to resist the erosion of corrosive environments such as the sea and chemical industry and prolong its service life.
Boiler Pressure Vessel Steel Plates Chemical Composition
|
Element |
Percentage % |
Element |
Percentage % |
|
C |
0.12/0.20 |
Ni |
0.30 |
|
Si |
0.35 |
Nb |
- |
|
Mn |
0.40/0.90 |
Ti |
- |
|
P |
0.025 |
V |
- |
|
S |
0.010 |
Al |
- |
|
Cr |
0.030 |
N |
0.012 |
|
Mo |
0.25/0.35 |
Cu |
0.30 |
Hot Rolled Pressure Vessel Steel Plate mechanical property
| Grade |
Thickness |
Temperature (°C) |
|||||||||
|
50 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
||
|
(mm) |
MPa |
MPa |
MPa |
MPa |
MPa |
MPa |
MPa |
MPa |
MPa |
MPa |
|
| 16Mo3 |
≤16 |
273 |
264 |
250 |
233 |
213 |
194 |
175 |
159 |
147 |
141 |
|
>16 ≤40 |
268 |
259 |
245 |
228 |
209 |
190 |
172 |
156 |
145 |
139 |
|
|
>40 ≤60 |
258 |
250 |
236 |
220 |
202 |
183 |
165 |
150 |
139 |
134 |
|
|
>60 ≤100 |
238 |
230 |
218 |
203 |
186 |
169 |
153 |
139 |
129 |
123 |
|
|
>100 ≤150 |
218 |
211 |
200 |
186 |
171 |
155 |
140 |
127 |
118 |
113 |
|
|
>150 ≤250 |
208 |
202 |
191 |
178 |
163 |
148 |
134 |
121 |
113 |
108 |
|

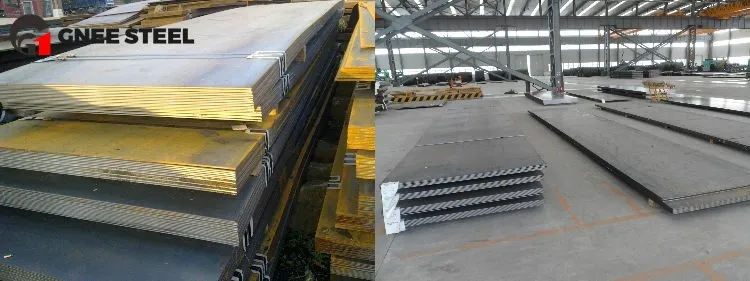

Hot Rolled Steel Sheet Products image
