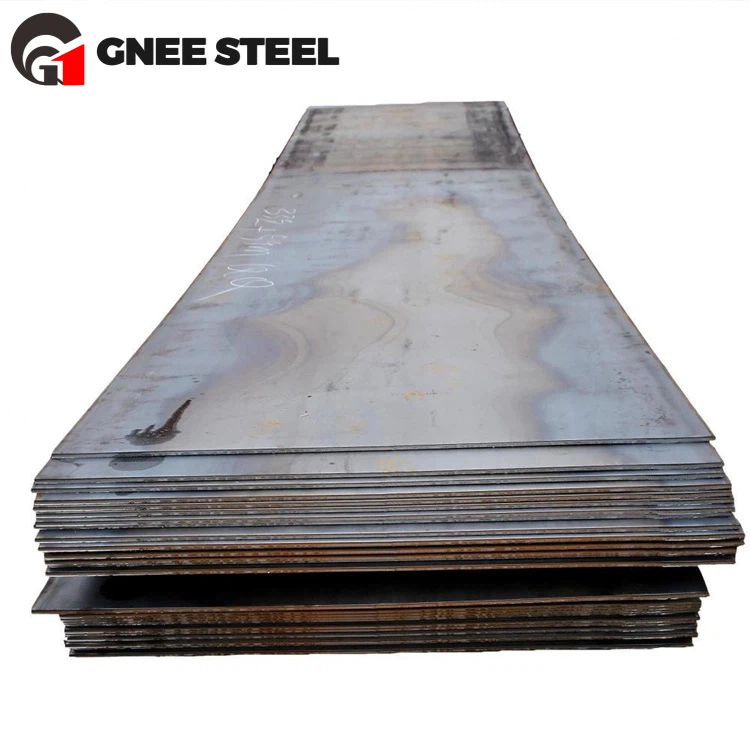

ASME SA204 Pressure Vessel Sheet

ASME SA204 pressure vessel plate is also the same as ASTM A204. Typical molybdenum alloy steel plates are used for welding boilers and other pressure vessels. A204/SA-204 steel is a carbon-molybdenum alloy steel with a nominal composition of C-0.5Mo.

Description

Technical Parameters

ASME SA204 Pressure Vessel Sheet

Pressure vessel plate made from ASTM A204 (the same as ASME SA-204) steel is typically molybdenum-alloyed and is particularly suitable for welded boilers and other pressure vessels.The grades covered by ASTM A204/ASME SA-204 are all carbon-molybdenum-alloyed steels, with nominal compositions of C-0.5Mo. Plate is available in the following three different strength grades under the standard specification: Grade A, Grade B and Grade C.

ASME SA204 Boiler Steel Plate Chemical Composition

Element	t	Composition, %
Element	t	Gr. A	Gr. B	Gr. C
C	t≤1"	≤0.18	≤0.20	≤0.23
	1"	≤0.21	≤0.23	≤0.26
	2"	≤0.23	≤0.25	≤0.28
	t>4"	≤0.25	≤0.27	≤0.28
Mn	All	≤0.90	≤0.90	≤0.90
P	All	≤0.025	≤0.025	≤0.025
S	All	≤0.025	≤0.025	≤0.025
Si	All	0.15-0.40	0.15-0.40	0.15-0.40
Mo	All	0.45-0.60	0.45-0.60	0.45-0.60

Main chemical composition of ASME SA204 GR A / B / C steels: SA204 GR.A up to 0.18 carbon, SA204GR.B up to 0.20 carbon, SA204GR.C up to 0.23 carbon; manganese up to 0.90, silicon up to 0.15-0.40, phosphorus up to 0.035, sulfur up to 0.035

ASME SA204 Steel Boiler Plate Mechanical Property

ASTM A204	Gr. A	Gr. B	Gr. C
T.S. MPa [ksi]	450-585 [65-85]	485-620 [70-90]	515-655 [75-95]
Y.S. min. MPa [ksi]	255 [37]	275 [40]	295 [43]
El. in 8" min. %	19	17	16
El. in 2" min. %	23	21	20

ASME SA204 GR.A / B / C steel grade is a chromium, molybdenum, and chromium-molybdenum containing steel, which is mainly used for pressure vessels.SA204 GR.A / B / C steel grade conforms to the ASME standard and has a yield strength of 220MPa.

A tensile strength of 65-85 ksi gives ASME SA204 alloy steel plate its character: strong potential as a high-strength alloy steel plate. Annealing, normalizing and tempering treatments reduce the plate's brittleness, increase its load-bearing capacity and prevent rust and pitting.
