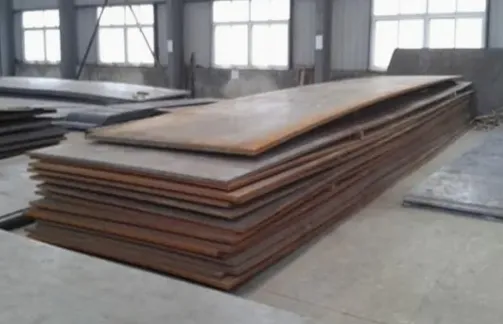

At GNEE, we pride ourselves on supplying high-quality EN 10028-2 P355GH steel plate, a non-alloy steel designed for pressure vessels and boilers operating at elevated temperatures.
GNEE provides a detailed technical analysis of the P355GH boiler steel plate, focusing on its chemical composition, mechanical properties, and compliance with EN 10028-2 standards. For comprehensive specifications, refer to EN 10028-2 P355GH steel plate details.
EN10028-2 P355GH Pressure Vessel And Boiler Steel Plate Chemical Composition and Mechanical Property
|
Grade |
Chemical Composition(%) |
||||
|
C |
Mn |
Si max |
P max |
S max |
|
|
EN10028-2 P355GH |
0.1-0.22 |
1.1-1.7 |
0.6 |
0.025 |
0.015 |
|
Grade |
Mechanical Property |
|
|||
|
Tensile Strength(MPa) |
Yield Strength(MPa) min |
% Elongation in 2 in.(50mm) min |
Impacting Test Temperature(°C) |
|
|
|
EN10028-2 P355GH |
470-650 |
355 |
20 |
+20,0,-20 |
|
EN10028-2 P355GH Pressure Vessel And Boiler Steel Plate Application
EN10028-2 P355GH Pressure Vessel And Boiler Steel Plate are used in Pressure Vessel,Boiler,Storage Tanks and Heat Exchanger in Oil,Gas Project.
EN10028-2 P355GH Pressure Vessel And Boiler Steel Plate Other Name
EN10028-2 P355GH Boiler steel plate,EN10028-2 P355GH Pressure Vessel Steel plate, EN10028-2 P355GH Storage Tanks Steel plate. EN10028-2 P355GH Heat Exchanger Steel Plate .
Equivalent Steel Grades and Specifications for EN 10028-2 P355GH
|
Category |
Details |
Notes |
|
Standard |
EN 10028-2 P355GH |
Supersedes 1501-161-360A and DIN H 1 standards. |
|
Equivalent Grades |
||
|
Europe |
Fe E355 |
Common European structural steel equivalent. |
|
Belgium |
D52-1,2 |
Used in pressure vessel applications. |
|
Germany |
19Mn8 |
Comparable for high-temperature performance. |
|
France |
A52 CP |
Suitable for pressure vessels in French standards. |
|
Italy |
Fe510-1-KW |
Used in Italian boiler and pressure vessel standards. |
|
Sweden |
SS 21,06,01 |
Swedish equivalent for elevated-temperature applications. |
|
Japan |
SPV355 |
JIS standard equivalent for pressure vessels. |
en 10028-2 P355GH Specifications
|
||
|
Thickness |
6 mm to 300 mm |
Wide range for pressure vessels, boilers, and piping systems. |
|
Width |
1500 mm to 4050 mm |
Accommodates large-scale fabrications. |
|
Length |
3000 mm to 15000 mm |
Flexible lengths for project-specific needs. |
|
Forms |
Plates |
Primarily supplied as flat plates; custom cutting available. |
|
Supplementary Testing |
HIC Test (NACE MR0175), Z15, Z25, Z35, S1, S2, S3, S4.1, S5, S6, S7, S8, S9, S11, S12, S14, S17 |
Ensures quality for sour service and high-pressure environments. |
|
Delivery Condition |
Normalized or as-rolled |
Normalized for enhanced toughness and uniformity. |
Notes:
The EN 10028-2 P355GH steel plate is designed for elevated-temperature performance (up to ~400°C), with excellent weldability and HIC resistance, as detailed in EN 10028-2 P355GH standards.
Equivalent grades like Fe E355, SPV355, and 19Mn8 are selected based on similar mechanical properties and applications, though slight variations in alloying may exist.
GNEE offers P355GH boiler steel plate in a wide range of dimensions to meet client specifications, with supplementary testing (e.g., NACE MR0175 for HIC) ensuring suitability for sour service environments.
Custom sizes and additional certifications are available upon request to support diverse project requirements.
