NM500 NM600 Abrasion Steel Plate
NM500 is a high-strength wear-resistant steel plate with high hardness and wear-resistant properties, suitable for manufacturing wear-resistant parts and structural components. Widely used in mining machinery, construction machinery, engineering machinery, agricultural machinery, metallurgical machinery and other fields, for the manufacture of wear-resistant parts and structural components, such as crusher liners, excavator buckets, bulldozer blades, conveying pipelines, etc. The implementation of the standard of NM500 steel plate is GB/T 24186-2009 "High Strength Wear-Resistant Steel Plate for Construction Machinery".
The main chemical composition of NM600 wear-resistant steel plate includes carbon, silicon, manganese, phosphorus, sulfur and other elements. Among them, the carbon content is high, which can improve the hardness and wear resistance of the steel plate. Meanwhile, the addition of silicon, manganese and other elements can further enhance the strength and toughness of the steel plate.
NM500 wear steel plate chemical composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | B | Als |
| NM500 | ≤0.38 | ≤0.70 | ≤1.70 | ≤0.020 | ≤0.010 | ≤1.50 | ≤1.00 | ≤0.65 | ≤0.50 | 0.0005-0.006 | ≥0.01 |
NM600 resistant steel plate chemical composition
| Grade |
Chemical requirement or element Max % |
||||||||||
|
|
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Mo |
Ti |
B |
ALs |
|
NM600 |
0.45 |
0.70 |
1.90 |
0.020 |
0.010 |
1.5 |
1.0 |
0.80 |
0.05 |
0.005- |
0.010 |
NM500 abrasion resistant plate mechanical property
| Grade | Mechanical Property | ||
| NM 500 | Tensile | Elongation | |
| Mpa | Min % | ||
| 1350 | 7 | ||
| Charpy V Impact Test | |||
| Degree | longitudinal | ||
| -20 / -40 | J | ||
| min 21 | |||
| NM500 | Thickness | Hardness (HB) | |
| ≤70mm | 420~480 | ||
| ＞70~100mm | 450~540 | ||
NM600 abrasion plate mechanical property
| Grade |
Property |
Impact test |
HBW |
||
|
NM600 |
Yield Mpa Min |
Tensile Mpa |
Elongation |
Min J |
Min 570 |
|
Thickness mm |
Thickness mm |
Degree |
|||
|
《70mm |
<=60mm |
% |
-20 |
||
|
|
|
|
|
||
NM500 600 armored steel plate Products Details
NM500 steel armor plate is widely used in engineering machinery, mining machinery, coal mining machinery, environmental protection machinery, metallurgical machinery, abrasives, bearings and other product parts.
Due to the excellent wear resistance of NM600 ballistic steel plate, it is widely used in applications that need to withstand high intensity wear, such as mining machinery, conveyor belts, excavators and other equipment. In these environments, NM600 wear-resistant steel plate can effectively reduce wear and prolong the service life of the equipment.

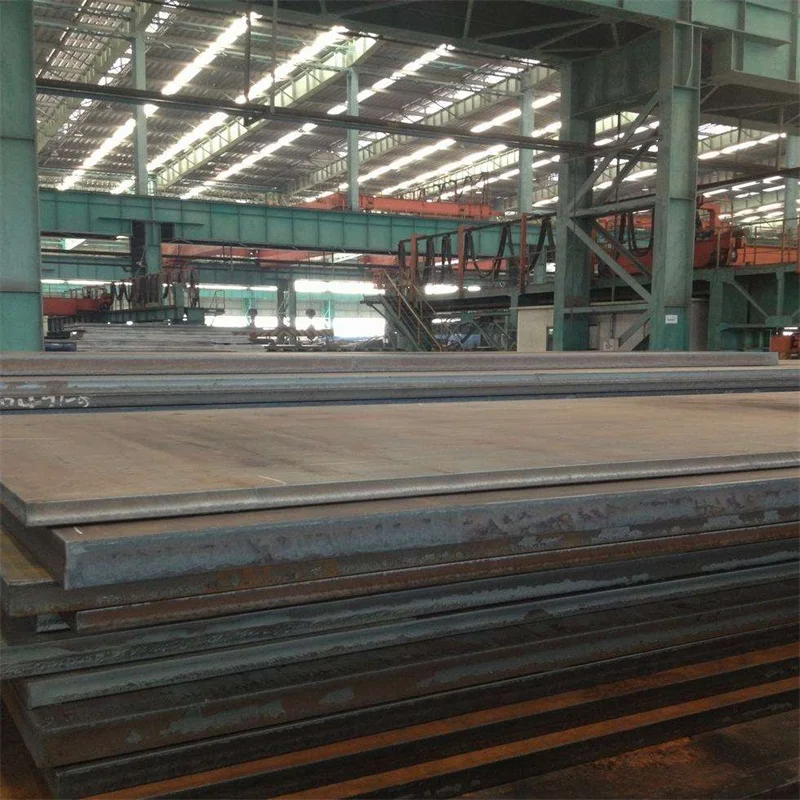

NM500 600 Alloy Steel Armor Plate product image
GNEE group team photo
GNEE group customer visit
Products Description
We have sufficient inventory and can package and ship in the shortest time. If you have any needs for NM500 NM600 Abrasion Steel Plate products, please contact me.
