NM500 NM550 Hot Rolled Wear Resistant Steel Plate
NM500 is a high-strength abrasion resistant steel plate, naming: N is "wear-resistant" in the "resistant" in the first letter of the alphabet, M is "wear-resistant" in the "grinding" in the first letter of the alphabet.500 is the Brinell hardness value of HB value. (500 is the Brinell hardness value of HB. (500 hardness value is broad, domestic NM500 hardness value is around 500.) It has a high resistance to wear, Brinell hardness value of 500 (HBW) is mainly in the need to wear-resistant occasions or parts of the protection, so that the equipment life is longer, reduce maintenance brought about by overhauling and downtime, and accordingly reduce the investment of funds.
NM550's high wear-resistant high strength and high toughness performance in the manufacture of machinery and equipment to effectively avoid mechanical equipment in and friction in the place of damage or deformation, can directly improve the service life of machinery.
NM500 wear steel plate chemical composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | B | Als |
| NM500 | ≤0.38 | ≤0.70 | ≤1.70 | ≤0.020 | ≤0.010 | ≤1.50 | ≤1.00 | ≤0.65 | ≤0.50 | 0.0005-0.006 | ≥0.01 |
NM550 resistant steel sheet chemical composition
| GRADE | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | Bt* | CEV | ALs |
| Max. | Min. | |||||||||||
| NM550 | 0.38 | 0.7 | 1.7 | 0.02 | 0.01 | 1.2 | 1.0_ | 0.7 | 0.05 | 0.0005~0.006 | 0.72 | 0.01 |
NM500 abrasion plate mechanical property
| Mechanical properties of NM 500 | |||
| Grade | Mechanical Property | ||
| NM 500 | Tensile | Elongation | |
| Mpa | Min % | ||
| 1350 | 7 | ||
| Charpy V Impact Test | |||
| Degree | longitudinal | ||
| -20 / -40 | J | ||
| min 21 | |||
| NM500 | Thickness | Hardness (HB) | |
| ≤70mm | 420~480 | ||
| ＞70~100mm | 450~540 | ||
NM550 abrasion resistant metal mechanical property
| GRADE | THICK/mm | TENSIBLE STRENGTH Rm MP a | YIELDSTREGNTHA50/% | 一20℃ IMPACT(Lengthway AKv / J | HBW | Deliverystatus | Executive standard |
| NM550 | 3~70 | ~ | ~ | ~ | ≥530 | Q+T | GB/T24186 |
NM steel wear plate material Products Details
1) Construction machinery and equipment: mining dump trucks, loaders, bulldozers, excavators, bucket boards, side blade boards, bucket bottom boards, blades and impact plates;
2) Loading and unloading machinery and equipment: unloading mill chain plate, hopper liner, grapple blade plate, medium-sized automatic dump truck bucket plate, stacking and reclaiming machine bucket wheel plate;
3) Construction machinery and equipment: cement pusher plate, concrete mixer liner, mixer building liner, dust collector liner;
4) Metallurgical machinery and equipment: iron ore sintering conveyor elbow, iron ore sintering machine liner, scraper conveyor liner.

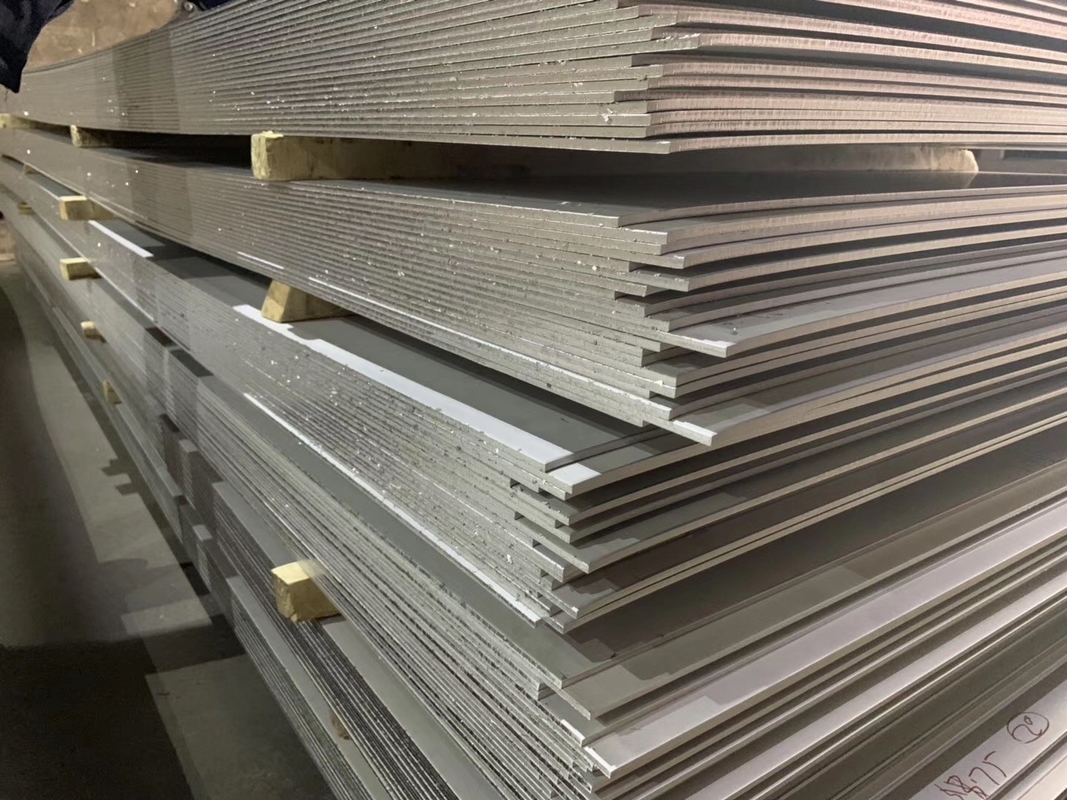

NM armored steel plate Products image
GNEE group team photo
GNEE group customer visit
Products Description
We have excellent after-sales service. If you have any questions about NM500 NM550 Hot Rolled Wear Resistant Steel Plate, you can contact us and we will reply to you within two hours.
