Heavy Duty Steel Grating
Heavy-Duty Welded Bar Grating is comprised of rectangular-shaped bearing bars that are thicker and often times higher than traditional Standard-Duty Welded Grating, allowing it to handle heavier loads.
If your application calls for maximum support of wheel and vehicular traffic, Heavy-Duty Welded Series Bar Grating is the right choice.
GNEE Stock inventory primarily consists of Carbon Steel and Galvanized Steel, but Stainless Steel and Powder Coated Carbon Steel are options available to you.
Welded steel bar grating is the most popular of all grating types because of its strength, low production costs and ease of installation. It is ideal for applications such as airports, motorways, industrial plants, truck and bus terminals, car parks and railway yards.
Common uses include flooring, driveways, underground and tunnel ventilation grating, curb entrance grating, ramps, docks and more.
heavy duty metal grating Products specifications
| Heavy Duty Grating Cross Bars | |||
|---|---|---|---|
| Bearing Bar Size | Bearing bar centers 15/16",1-3/16",1-3/8" |
Bearing bar centers 1-7/8", 2-3/8" |
|
| thickness | depth | ||
| 1/4" | 1" - 2-1/2" | 5/16" Twisted | 5/16" Twisted |
| 5/16" | 1" - 2-1/2" | 3/8" Round | 3/8" Round |
| 3/8" | 1" - 2-1/2" | 3/8" Round | 3/8" Round |
| 1/4" | 3" - 5" | 3/8" Round | 3/8" Round |
| 5/16" - 1/2" | 3" - 5" | 3/8" Round | 7/16" Round |
| 1/4" | 5-1/2" - 7" | 3/8" Round | 7/16" Round |
| 5/16" - 1/2" | 5-1/2" - 7" | 3/8" Round | 7/16" Round |
heavy duty steel floor grating Products Details
Specail Heavy Duty Grating
The Grating which is designed base on customer's need, but cannot be produced by special equipments. Need to make notches on load bearing flat bars first, then place the round bars to the notches and weld them together through welding robots. Comparing to standard gratings, since this Special Grating is customized, it needs customer provide completed drawings.
Welding Robot is working:

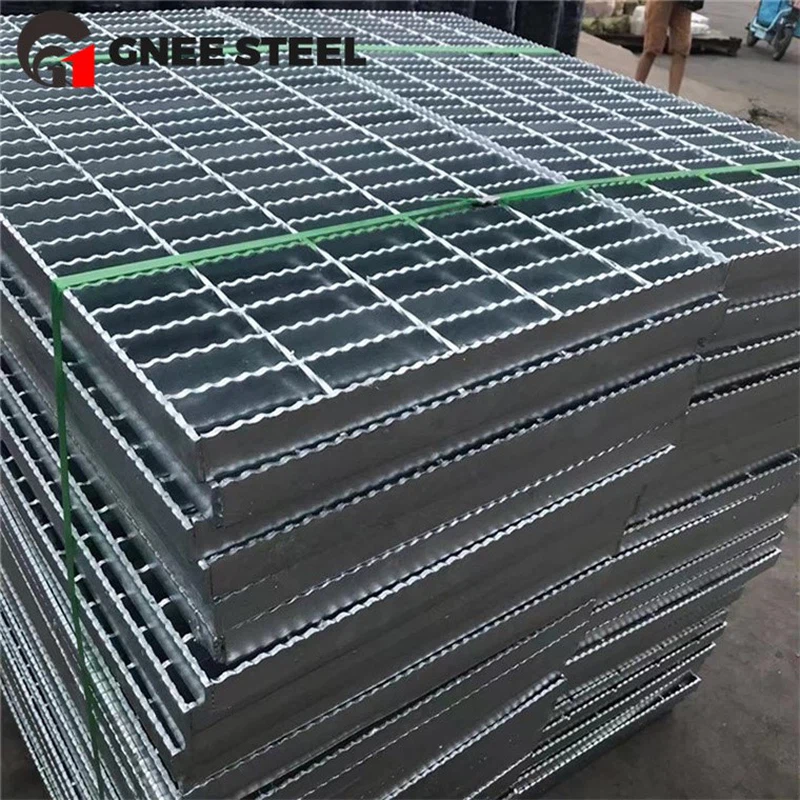

Finished Product:
After packing:
Container Loading:
metal grating panels Products image
GNEE group team photo
GNEE group customer visit
We have excellent after-sales service. If you have any questions about Heavy Duty Steel Grating, you can contact us and we will reply to you within two hours.
