Galvanized Steel Trench Drains
Steel grating is also known as steel metal grating: floor grating is made of flat steel according to a certain spacing and crossbar arrangement, and welded into the middle with a square lattice of a steel product, the crossbar is generally twisted square steel, twisted steel. Mainly used for gutter cover, steel structure platform grating, steel ladder stepping plate, etc.
Surface treatment of steel grating: hot dip galvanised, cold galvanised, electro-galvanised, spray painted, dipped in anti-rust oil, dipped in plastic, no treatment.
grating galvanised Products common size table list
|
Cross Rod Pitch |
load Bar Pitch |
Steel Bar Grating load Bar Specification(Width×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
|
Cross Rod Pitch |
load Bar Pitch |
steel bar grating load Bar Specification(Width×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 |
G605/40/50 |
|
galvanized steel grating Products recommemded length table
| Max length(mm) | ||||
| Flat Steel section size | 25×3 | 25×5 | 32×5 | 40×5 |
| Series 1 | 550 | 900 | 1300 | 1600 |
| Series 2 | 450 | 750 | 1200 | 1500 |
| Series 3 | - | 550 | 850 | 1350 |
Galvanised Steel Grating Product Details
There are three types of hot-dip galvanised steel grating, which are common type grating, sawtooth type grating and I-beam type grating.
-Ordinary Grating - is one of the most widely used grating. It can be used for flooring, pavements, drain covers, stair treads and so on.
-Sawtooth - Better anti-slip performance and safer than ordinary steel grating.
-Bar grating -Lighter, more economical and more environmentally friendly than ordinary steel grating.

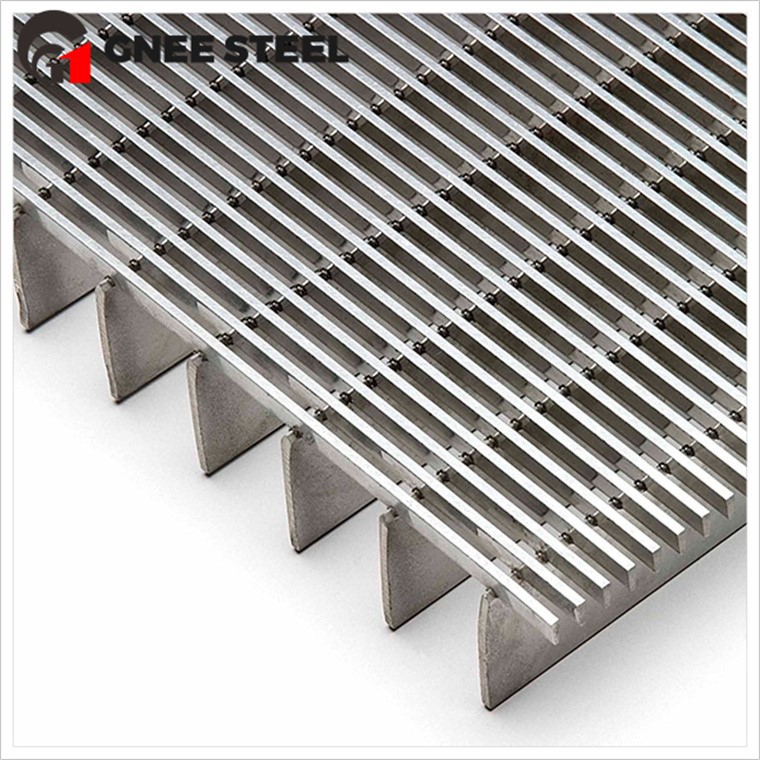

galvanized bar grating Products image
GNEE group team photo
GNEE group customer visit
We support the customization of multiple specifications and multi-specification steel. If you have customization needs for Galvanized Steel Trench Drains or other steel grating products, please contact me.
