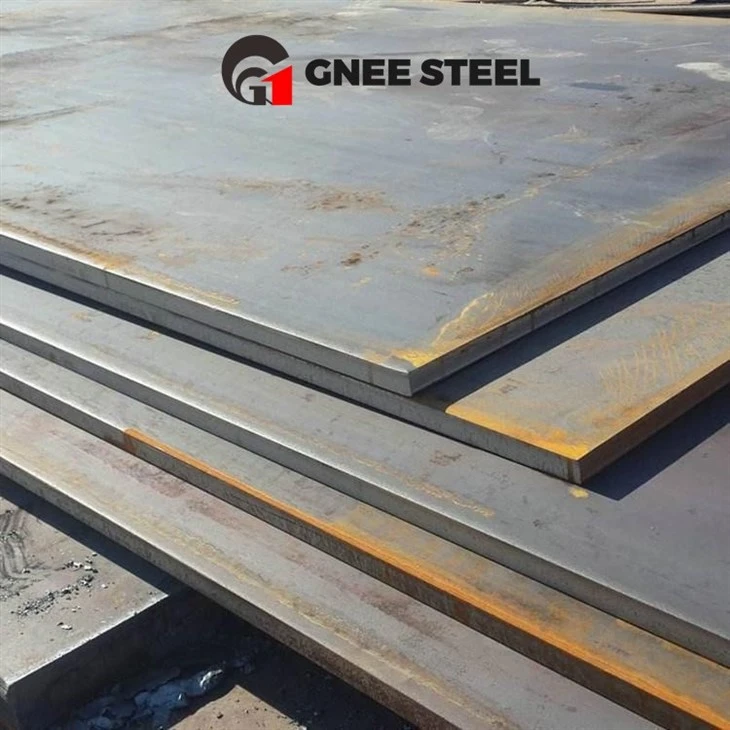

DH32 DH36 Marine Sheet

DH32 DH36 Marine Sheet

1. Comprehensive overview: DH32 and DH36 marine steel

DH32 and DH36 are high-strength structural steel grades certified by classification societies such as the American Bureau of Shipping (ABS), Lloyd's Register (LR), and Det Norske Veritas (DNV) for use in shipbuilding and offshore construction. They are part of a series of high-strength hull steels that offer superior mechanical properties compared to ordinary strength steels, making them suitable for the construction of ship hulls, offshore platforms, and other marine structures. The "D" prefix indicates that the steel is normalized or produced by controlled rolling, a thermal process that refines the grain structure to enhance toughness, especially at lower temperatures.

Key differences: DH32 vs. DH36

The primary distinction between DH32 and DH36 is their mechanical strength, with DH36 offering a higher minimum yield and tensile strength than DH32. Both are "D" grades, requiring impact testing at -20°C, but their differing strength levels make them suitable for applications with varying structural demands.

DH32 DH36 Marine Sheet Shared characteristics

High strength: Both are classified as higher-strength steels, providing greater load-bearing capacity compared to ordinary marine grades.

Toughness: The normalizing or controlled rolling process ensures good low-temperature toughness for service in colder marine environments.

Weldability: Both grades offer good weldability, which is a critical requirement for efficient fabrication and repairs in the shipbuilding industry.

Corrosion resistance: As low-alloy carbon steels, they provide adequate resistance to corrosion in seawater but require protective coatings for long-term durability.

2. Alternative names, standards, and equivalents

3. Key properties

3.1 Chemical composition

The typical chemical compositions for DH32 and DH36 are very similar, with precise ranges set by the specific classification society. DH36 generally has a slightly different balance of micro-alloying elements to achieve its higher strength.

3.2 Mechanical properties

The mechanical properties highlight the difference in strength and toughness between the two grades.

‌Comprehensive Overview of DH32 and DH36 Shipbuilding Steels‌

Both ‌DH32‌ and ‌DH36‌ are high-strength, low-alloy steels extensively used in shipbuilding and marine structures. They belong to the ‌D-High Tensile Steel‌ series (ISO 10225:2019), designed to meet rigorous mechanical and environmental demands in maritime applications.

‌1. Yield Strength and Tensile Performance‌

‌DH32‌ exhibits a ‌minimum yield strength of 315 MPa‌, with tensile strength ranging between ‌440-590 MPa‌.

‌DH36‌ offers ‌higher strength‌, with a ‌minimum yield strength of 355 MPa‌ and tensile strength between ‌490-620 MPa‌.
While DH36 provides ‌12.7% greater yield strength‌, it has ‌slightly lower elongation (≥19%)‌ compared to DH32 (≥21%). This trade-off makes DH36 suitable for ‌load-bearing hull structures‌, whereas DH32 is often used in ‌non-critical or secondary components‌.

‌2. Mechanical Properties and Toughness‌

Both steels maintain ‌excellent toughness‌ at low temperatures, a critical requirement for marine environments.

‌DH32‌ has a ‌-20°C impact energy requirement of ≥31J‌, sufficient for moderate climatic conditions.

‌DH36‌ requires ‌≥34J at -20°C‌, demonstrating ‌superior impact resistance‌, making it ideal for ‌Arctic vessels or harsh environments‌.

3. Weldability and Fabrication‌

‌DH32‌ is ‌highly weldable‌ due to its ‌lower carbon equivalent (CEV ≤ 0.38%)‌, allowing ‌easier fabrication‌ without extensive preheating.

‌DH36‌ has a ‌slightly higher CEV (≤ 0.42%)‌, meaning thicker sections (>100mm) may require ‌preheating‌ to prevent cracking.

‌4. Corrosion Resistance and Protective Measures‌

Neither DH32 nor DH36 is inherently corrosion-resistant like stainless steel. Both require:

‌Protective coatings‌ (zinc, epoxy, or paint)

‌Cathodic protection in aggressive environments‌

‌DH36‌ may see ‌enhanced sulfide stress corrosion resistance‌ due to optimized ‌Mn/C ratio‌ compared to DH32.

‌5. Applications in Shipbuilding‌

‌DH32‌ is typically used in:

‌Deckhouses, bulkheads, and secondary structures‌

‌Offshore platforms and inland vessels‌

‌DH36‌ is preferred for:

‌Hull shells, longitudinal stiffeners, and primary load-bearing structures‌

‌Arctic and ice-class ships (often with Ni additions)

‌

‌6. Industry Standards and Certifications‌

Both steels comply with ‌ABS, DNV, LR, and BV‌ standards, but specialized applications may require additional testing:

‌DH36 for Arctic vessels‌ must pass ‌-50°C DWTT (Drop-Weight Tear Test)‌ as per ‌IACS UR W11‌.

‌DH32 for oil tankers‌ must meet ‌HIC (Hydrogen-Induced Cracking) requirements (NACE MR0175)‌.

‌Conclusion‌

DH32 and DH36 are both ‌essential shipbuilding steels‌, but their selection depends on structural demands:

‌DH32‌ is favored for ‌cost-effective, weld-friendly applications‌.

‌DH36‌ is the ‌preferred choice for high-strength, fatigue-resistant primary structures‌.

1. Hull structure: DH32 ship building steel plate can be used in the manufacture of various types of ships, including ocean-going large cargo ships, oil tankers, container ships, passenger ships and so on. It plays an important role in the main structural components of ship hull, ship keel, ship shell and so on.

2. Marine platforms: DH32 shipbuilding plate is widely used in the construction of marine structures such as offshore oil platforms, offshore wind power platforms, and marine bridges. Due to its high strength and good corrosion resistance, DH32 steel plate can withstand large loads and impacts in harsh marine environments.

3. Marine engineering equipment: DH32 ship steel plate can also be used in the manufacture of marine engineering equipment, such as offshore lifting devices, marine winches, floating loading and unloading devices. It is widely used in the critical parts of these equipments such as load-bearing parts and connecting rods.
