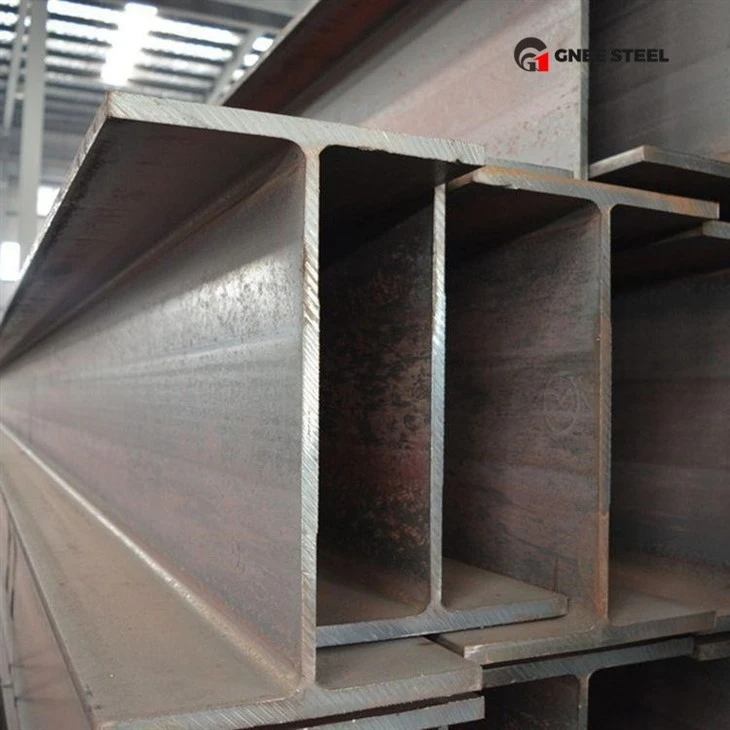

A992 Wide Flange H Beam
ASTM A992 steel h beam contains small amounts of vanadium or niobium, copper, nickel, chromium and molybdenum, and these elements greatly enhance the overall properties of A992. On the one hand, it has a low weight-to-strength ratio similar to A572-50; on the other hand, the alloying elements optimise the internal structure of the steel and improve its properties.
With a yield strength of 65 ksi, ASTM A992 I-beams are the material of choice for bridge and building framing.
a992 h section steel chemical composition
| Steel grade | Styles | Carbon, max, % | Manganese, % | Silicon, max, % | Vanadium, max, % | Columbium, max, % | Phosphorus, max, % | Sulfur, max, % |
|---|---|---|---|---|---|---|---|---|
| A992 | Steel sections | 0.23 | 0.50 - 1.60 | 0.40 | 0.15 | 0.05 | 0.035 | 0.045 |
a992 h shaped steel mechanical property
| Steel grade | Styles | Tensile strength, ksi | Yield point, min, ksi |
|---|---|---|---|
| A992 | Steel sections | 65 | 65 |
ASTM A992 h section beam - IPE dimensions (parallel flanges)
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| IPE 80 | 6.0 | 80 | 46 | 3.8 | 5.2 |
| IPE 100 | 8.1 | 100 | 55 | 4.1 | 5.7 |
| IPE 120 | 10.4 | 120 | 64 | 4.4 | 6.3 |
| IPE 140 | 12.9 | 140 | 73 | 4.7 | 6.9 |
| IPE 160 | 15.8 | 160 | 82 | 5.0 | 7.4 |
| IPE 180 | 18.8 | 180 | 91 | 5.3 | 8.0 |
| IPE 200 | 22.4 | 200 | 100 | 5.6 | 8.5 |
| IPE 220 | 26.2 | 220 | 110 | 5.9 | 9.2 |
| IPE 240 | 30.7 | 240 | 120 | 6.2 | 9.8 |
| IPE 270 | 36.1 | 270 | 135 | 6.6 | 10.2 |
| IPE 300 | 42.2 | 300 | 150 | 7.1 | 10.7 |
| IPE 330 | 49.1 | 330 | 160 | 7.5 | 11.5 |
| IPE 360 | 57.1 | 360 | 170 | 8 | 12.7 |
| IPE 400 | 66.3 | 400 | 180 | 8.6 | 13.6 |
| IPE 450 | 79.1 | 450 | 190 | 9.4 | 14.6 |
| IPE 500 | 90.7 | 500 | 200 | 10.2 | 16 |
| IPE 550 | 106.0 | 550 | 210 | 11.2 | 17.2 |
| IPE 600 | 124.4 | 600 | 220 | 12 | 19 |
a992 structural steel h beam Products image
GNEE group team photo
GNEE group customer visit
GNEE Group participates in foreign steel exhibitions
We have enough A992 Wide Flange H Beam in stock, and we can also customize it according to your needs.
