Description

Technical Parameters

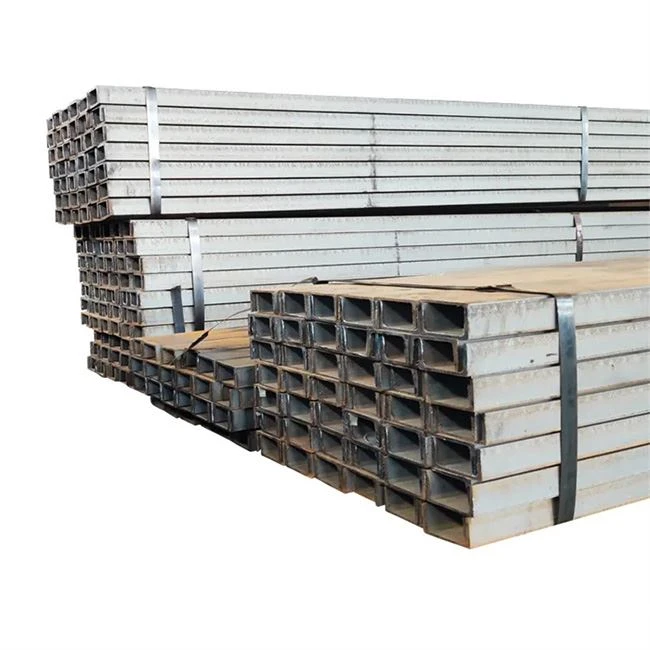

C U Channel Steel Profile

C-beam is automatically processed and molded by C-beam molding machine, which can automatically complete the C-beam molding process according to the given C-beam size.

U-beam is a kind of steel with a cross-section like the letter "U", which is used for mine tunnel with high pressure.

C channel steel sizes

American Standard Steel C Channel Sizes
Desig- nation	Area, A, in²	Depth, d, in	Weight lb/ft	Flange		Web Thickness t_w, in	Axis X-X			Axis Y-Y			x, in
Desig- nation	Area, A, in²	Depth, d, in	Weight lb/ft	Width, b_f, in	Thickness, t_f, in	Web Thickness t_w, in	I, in⁴	S, in³	r, in	I, in⁴	S, in³	r, in	x, in
C15 x 50	14.7	15.00	50	3.716	0.650	0.716	404	53.8	5.24	11.0	3.78	0.867	0.798
C15 x 40	11.8	15.00	40	3.520	0.650	0.520	349	46.5	5.44	9.23	3.37	0.886	0.777
C15 x 33.9	9.96	15.00	33.9	3.400	0.650	0.400	315	42.0	5.62	8.13	3.11	0.904	0.787
C12 x 30	8.82	12.00	30	3.170	0.501	0.510	162	27.0	4.29	5.14	2.06	0.763	0.674
C12 x 25	7.35	12.00	25	3.047	0.501	0.387	144	24.1	4.43	4.47	1.88	0.780	0.674
C12 x 20.7	6.09	12.00	20.7	2.942	0.501	0.282	129	21.5	4.61	3.88	1.73	0.799	0.698
C10 x 30	8.82	10.00	30	3.033	0.436	0.673	103	20.7	3.42	3.94	1.65	0.669	0.649
C10 x 25	7.35	10.00	25	2.886	0.436	0.526	91.2	18.2	3.52	3.36	1.48	0.676	0.617
C10 x 20	5.88	10.00	20	2.739	0.436	0.379	78.9	15.8	3.66	2.81	1.32	0.692	0.606
C10 x 15.3	4.49	10.00	15.3	2.600	0.436	0.240	67.4	13.5	3.87	2.28	1.16	0.713	0.634
C9 x 20	5.88	9.00	20	2.648	0.413	0.448	60.9	13.5	3.22	2.42	1.17	0.642	0.583
C9 x 15	4.41	9.00	15	2.485	0.413	0.285	51.0	11.3	3.40	1.93	1.01	0.661	0.586
C9 x 13.4	3.94	9.00	13.4	2.433	0.413	0.233	47.9	10.6	3.48	1.76	0.962	0.669	0.601
Desig- nation	Area, A, in²	Depth, d, in	Weight lb/ft	Flange		Web Thickness t_w, in	Axis X-X			Axis Y-Y			x, in
Desig- nation	Area, A, in²	Depth, d, in	Weight lb/ft	Width, b_f, in	Thickness, t_f, in	Web Thickness t_w, in	I, in⁴	S, in³	r, in	I, in⁴	S, in³	r, in	x, in
C8 x 18.75	5.51	8.00	18.75	2.527	0.390	0.487	44.0	11.0	2.82	1.98	1.01	0.599	0.565
C8 x 13.75	4.04	8.00	13.75	2.343	0.390	0.303	36.1	9.03	2.99	1.53	0.854	0.615	0.553
C8 x 11.5	3.38	8.00	11.5	2.260	0.390	0.220	32.6	8.14	3.11	1.32	0.781	0.625	0.571
C7 x 14.75	4.33	7.00	14.75	2.299	0.366	0.419	27.2	7.78	2.51	1.38	0.779	0.564	0.532
C7 x 12.25	3.60	7.00	12.25	2.194	0.366	0.314	24.2	6.93	2.60	1.17	0.703	0.571	0.525
C7 x 9.8	2.87	7.00	9.8	2.090	0.366	0.210	21.3	6.08	2.72	0.968	0.625	0.581	0.540
C6 x 13	3.83	6.00	13	2.157	0.343	0.437	17.4	5.80	2.13	1.05	0.642	0.525	0.514
C6 x 10.5	3.09	6.00	10.5	2.034	0.343	0.314	15.2	5.06	2.22	0.866	0.564	0.529	0.499
C6 x 8.2	2.40	6.00	8.2	1.920	0.343	0.200	13.1	4.38	2.34	0.693	0.492	0.537	0.511
C5 x 9	2.64	5.00	9	1.885	0.320	0.325	8.90	3.56	1.83	0.632	0.450	0.489	0.478
C5 x 6.7	1.97	5.00	6.7	1.750	0.320	0.190	7.49	3.00	1.95	0.479	0.378	0.493	0.484
C4 x 7.25	2.13	4.00	7.25	1.721	0.296	0.321	4.59	2.29	1.47	0.433	0.343	0.450	0.459
C4 x 5.4	1.59	4.00	5.4	1.584	0.296	0.184	3.85	1.93	1.56	0.319	0.283	0.449	0.457
C3 x 6	1.76	3.00	6	1.596	0.273	0.356	2.07	1.38	1.08	0.305	0.268	0.416	0.455
C3 x 5	1.47	3.00	5	1.498	0.273	0.258	1.85	1.24	1.12	0.247	0.233	0.410	0.438
C3 x 4.1	1.21	3.00	4.1	1.410	0.273	0.170	1.66	1.10	1.17	0.197	0.202	0.404	0.436

UPN u channel steel sizes

Description	Execution	G kg/m	h	b	tw	tf	r1	r2
UPN 20x10x3	Hot Rolled	0.89	20	10	3	3.5	3.5	2.5
UPN 30x15x4	Hot Rolled	1.78	30	15	4	4.5	4.5	2.5
UPN 30x15x4	Laser	1.76	30	15	4	4.5	1	<1
UPN 30x33x5	Hot Rolled	4.37	30	33	5	7	7	3
UPN 40x20x3	Hot Rolled	1.83	40	20	3	3.3	3.3	3
UPN 40x20x3	Laser	1.92	40	20	3	3.5	1	<1
UPN 40x20x4	Hot Rolled	2.43	40	20	4	4.5	4.5	3
UPN 40x20x4	Laser	2.44	40	20	4	4.5	1	<1
UPN 40x35x5	Hot Rolled	4.98	40	35	5	7	7	3
UPN 40x35x5	Laser	4.96	40	35	5	7	1	<1
UPN 50x25x5	Hot Rolled	3.9	50	25	5	6	5	3.5
UPN 50x25x5	Laser	3.92	50	25	5	6	1	<1
UPN 50	Hot Rolled	5.6	50	38	5	7	7	3.5
UPN 50	Laser	5.7	50	38	5	7	1	<1
UPN 60x30x6	Hot Rolled	5.16	60	30	6	6	6	3
UPN 60x30x6	Laser	5.19	60	30	6	6	1	<1
UPN 65	Hot Rolled	7.11	65	42	5.5	7.5	7.5	4
UPN 65	Laser	7.24	65	42	5.5	7.5	1	<1
UPN 80	Hot Rolled	8.68	80	45	6	8	8	4
UPN 80	Laser	8.85	80	45	6	8	2	<1
UPN 100	Hot Rolled	10.61	100	50	6	8.5	8.5	4.5
UPN 100	Laser	10.8	100	50	6	8.5	2	<1
UPN 120	Hot Rolled	13.4	120	55	7	9	9	4.5
UPN 120	Laser	13.65	120	55	7	9	2	<1
UPN 140	Hot Rolled	16.08	140	60	7	10	10	5
UPN 140	Laser	16.33	140	60	7	10	2	<1
UPN 160	Hot Rolled	18.96	160	65	7.5	10.5	10.5	5.5
UPN 160	Laser	19.27	160	65	7.5	10.5	2	<1
UPN 180	Extruded	22.09	180	70	8	11	11	5.5
UPN 180	Laser	22.45	180	70	8	11	2	<1
UPN 200	Extruded	25.85	200	75	8.5	11.5	11.5	6
UPN 200	Laser	25.85	200	75	8.5	11.5	2	<1
UPN 220	Laser	30.05	220	80	9	12.5	2	<1
UPN 240	Laser	33.96	240	85	9.5	13	2	<1
UPN 260	Laser	38.73	260	90	10	14	2	<1
UPN 280	Laser	42.81	280	95	10	15	2	<1
UPN 300	Laser	47.05	300	100	10	16	2	<1
UPN 320	Laser	59.93	320	100	14	17.5	2	<1
UPN 350	Laser	61.23	350	100	14	16	2	<1
UPN 380	Laser	63.71	380	102	13.5	16	2	<1
UPN 400	Laser	72.46	400	110	14	18	2	<1

U C steel metal channel product image

China channel steel Supplier

China channel section steel Factory

GNEE group team photo

China c section steel Supplier

GNEE group customer visit

China channel c steel Factory

GNEE Group participates in foreign steel exhibitions

China c channel producers

Our products have undergone strict quality testing and come with professional certificates. If you have any questions about C U Channel Steel Profile, please feel free to inspect.
