P460M P460ML1 P460ML2 Pressure Vessel Quality Steel
P460M Alloy Steel Plate is a structural steel in BS EN10028-5.P460M is commonly used in the engineering and construction industry.P460M vessel plate has low yield and tensile strengths and is subjected to a variety of treatments.P460M Steel Plate is usually supplied in a controlled rolled condition.P460ML1 Boiler steel plate is a material for boilers and pressure vessels.P460ML1 Boiler steel plate has a minimum yield strength of 430-460 MPa and has good weldability.
P460ML1 boiler plate is a material of steel for boilers and pressure vessels.P460ML1 boiler steel plate has a minimum yield strength of 430-460 MPa and good weldability, so P460ML1 vessel steel plate is mainly used in the manufacture of boilers.P460ML2 pressure vessel plate is a material of steel for boilers and pressure vessels.P460ML2 boiler steel plate is a material of steel for boilers and pressure vessels.
P460ML2 steel boiler plate is a thermomechanically rolled and weldable fine grain steel grade. Its dimensions and dimensional tolerances shall be in accordance with EN 10028-1.P460ML2 Boiler Plate Steel is usually used for pressure equipment.P460ML2 Container Steel Plate is a material of steel for boilers and pressure vessels.
p460M pressure vessel steel plate chemical composition and mechanical property
| EN10028-5 P460M Chemical Composition | |||||||
| Grade | The Element Max (%) | ||||||
| C | Si | Mn | P | S | Al | N | |
| P460M | 0,16 | 0,60 | 1,70 | 0,025 | 0,020 | 0,020 | 0,020 |
| Nb | V | Ti | Ni | Mo | |||
| 0,05 | 0,10 | 0,05 | 0,50 | 0,20 | |||
| Grade | P460M Mechanical Property | |||
| Thickness | Yield | Tensile | Elongation | |
| P460M | mm | Min Mpa | Mpa | Min % |
| 6-16 | 460 | 530-720 | 17% | |
| 16-40 | 440 | 530-720 | 17% | |
| 40-63 | 430 | 530-720 | 17% | |
p460ML1 pressure vessel plate material chemical composition and mechanical property
| EN10028-5 P460ML1 Chemical Composition | |||||||
| Grade | The Element Max (%) | ||||||
| C | Si | Mn | P | S | Al | N | |
| P460ML1 | 0,16 | 0,60 | 1,70 | 0,020 | 0,015 | 0,020 | 0,020 |
| Nb | V | Ti | Ni | Mo | |||
| 0,05 | 0,10 | 0,05 | 0,50 | 0,20 | |||
| Grade | P460ML1 Mechanical Property | |||
| Thickness | Yield | Tensile | Elongation | |
| P460ML1 | mm | Min Mpa | Mpa | Min % |
| 6-16 | 460 | 530-720 | 17% | |
| 16-40 | 440 | 530-720 | 17% | |
| 40-63 | 430 | 530-720 | 17% | |
p460ML2 vessel steel plate chemical composition and mechanical property
| EN10028-5 P460ML2 Chemical Composition | |||||||
| Grade | The Element Max (%) | ||||||
| C | Si | Mn | P | S | Al | N | |
| P460ML2 | 0,16 | 0,60 | 1,70 | 0,020 | 0,015 | 0,020 | 0,020 |
| Nb | V | Ti | Ni | Mo | |||
| 0,05 | 0,10 | 0,05 | 0,50 | 0,20 | |||
| Grade | P460ML2 Mechanical Property | |||
| Thickness | Yield | Tensile | Elongation | |
| P460ML2 | mm | Min Mpa | Mpa | Min % |
| 6-16 | 460 | 530-720 | 17% | |
| 16-40 | 440 | 530-720 | 17% | |
| 40-63 | 430 | 530-720 | 17% | |
p460M series pressure vessel quality steel plate applications
It is widely used in petroleum, chemical, power plants, boilers and other industries for the production reactor, heat exchangers, separators, tank, gas cans, gas cans, nuclear reactor pressure vessel, boiler drum, liquefied petroleum gas cylinders, high pressure hose station, the turbine volute and other equipment and components.

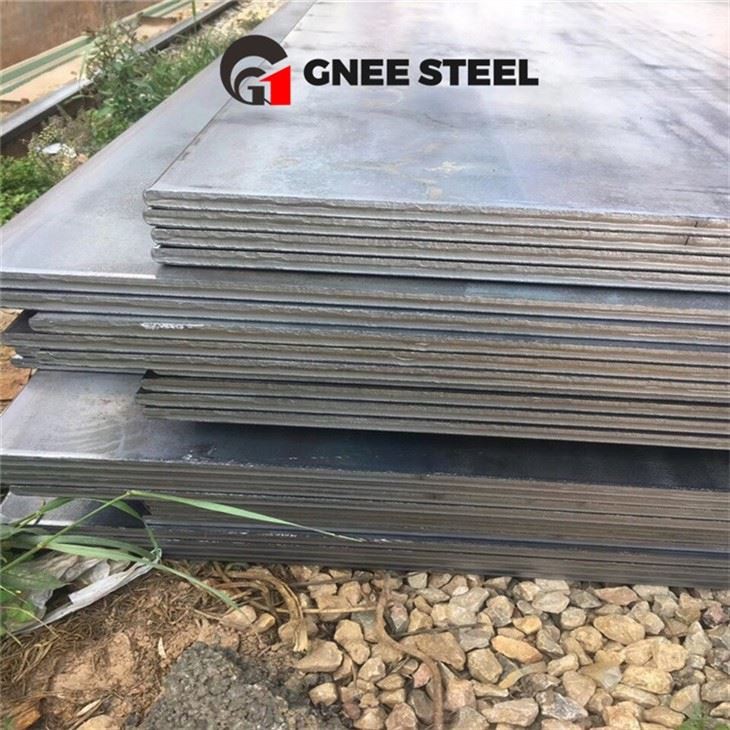

boiler quality plates Products image
GNEE group team photo
GNEE group customer visit
We have enough P460M P460ML1 P460ML2 Pressure Vessel Quality Steel in stock, and we can also customize it according to your needs.
