12Cr1MoVR Vessel Steel Plate
12Cr1MoVR steel plate for medium and high temperature pressure vessel steel plate, in line with GB713-2014 standard, with good toughness and weldability.
12Cr1MoVR is a kind of Cr-Mo steel for pressure vessels: "12" is the carbon content of 0.12%; "Cr" is the composition containing a certain chemical element - chromium; "Mo" is the composition containing a certain chemical element - molybdenum; "Mo" is the composition containing a certain chemical element - molybdenum; "Mo" is the composition containing a certain chemical element - molybdenum. "is the composition contains certain chemical elements - molybdenum;" V "is the composition contains certain chemical elements - vanadium;" R "is the first letter of the container plate capacity.
12CrMoVR vessel plate Chemical composition
|
C |
Si |
Mn |
P |
Ni |
Cr |
Mo |
Cu |
V |
S |
|
0.08～0.15 |
0.15～0.4 |
0.4～0.7 |
≤0.025 |
≤0.30 |
0.90-1.20 |
0.25-0.35 |
≤0.30 |
0.15-0.30 |
≤0.01 |
12CrMoVR boiler plate mechanical property
|
Th(mm) |
Tensile Strength R/(N/㎡) |
Yield Strength R/(N/㎡) |
Elongation after fracture % min |
Impact energy min. at a temperature in 20 ℃ |
|
6-60 |
440-590 |
245 |
19 |
3ickness4 |
|
60-100 |
430-580 |
235 |
12CrMoVR boiler steel plate Products Details
12Cr1MoVR steel plate using oxygen top blowing converter method, flat furnace method or electric furnace melting.
12Cr1MoVR steel plates are usually delivered in normalized + tempered condition. At below 500°C; it has high lasting strength. According to special agreement at the time of ordering, 12Cr1MoVR steel plates can also be delivered in annealed or tempered condition. Significantly increases the plasticity and impact toughness of the steel and improves the anisotropy of the steel.
12Cr1MoVR vessel steel plate is widely used in petroleum and petrochemical industries, chemical equipment manufacturing enterprises, power plant construction, boiler and pressure vessel manufacturing, etc. It is used to manufacture reactors, heat exchangers, separators, ball tanks, oil tanks, liquefied petroleum gas tanks, pressure shells of nuclear reactors, liquefied petroleum gas cylinders and other components.

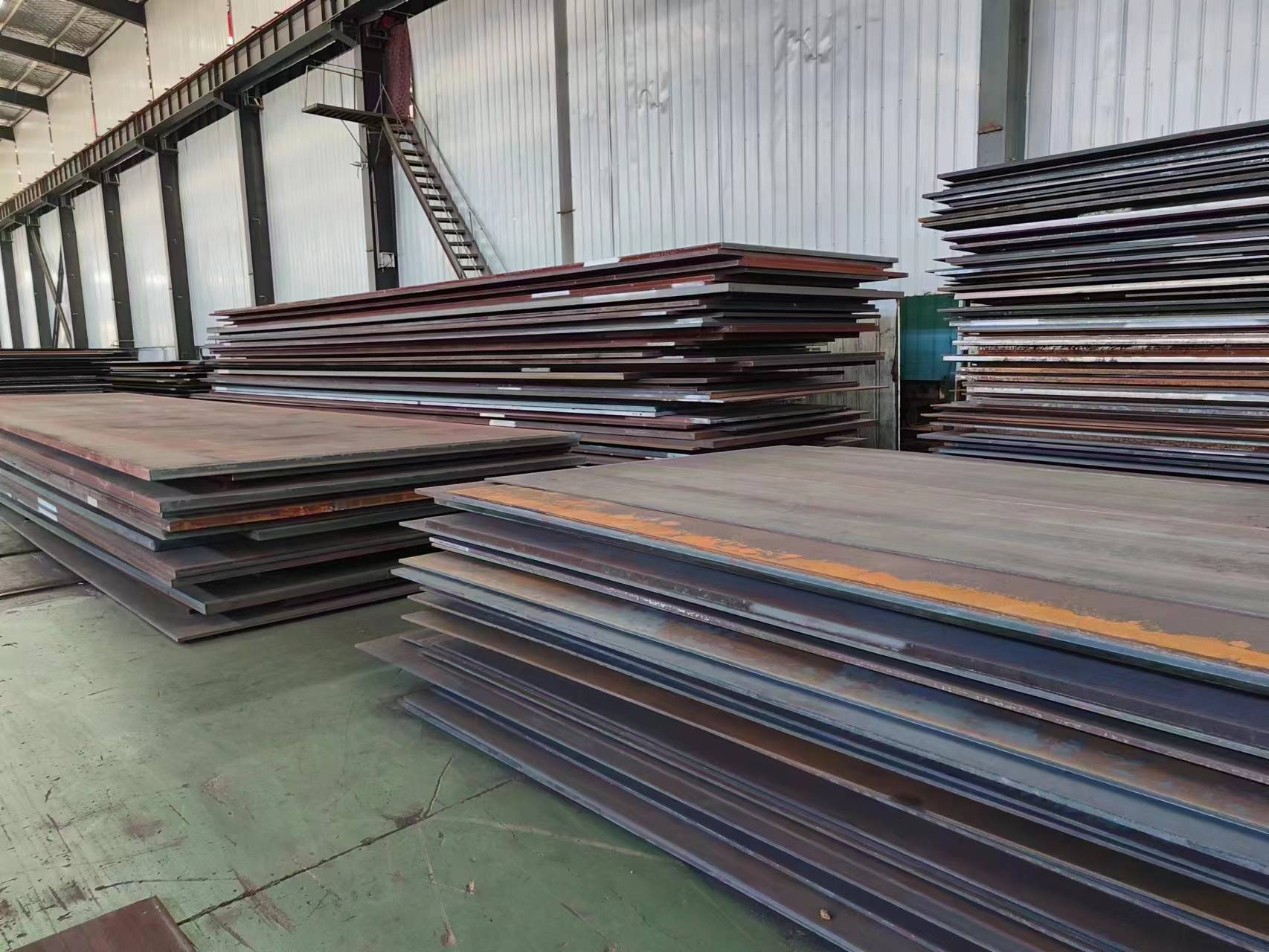

12CrMoVR steel boiler plate Products image
gNEE group team photo
GNEE group customer visit
We support multi-specification and multi-specification steel customization. If you have customization needs for 12Cr1MoVR Vessel Steel Plate products, please contact me.
