P355N Pressure Vessel Steel Plate: Technical Data & Sourcing Guide

P355N Pressure Vessel Steel Plate: Technical Data & Sourcing Guide

Thickness: 6 mm – 250 mm
Width: 1500 mm – 4500 mm
Length: 3000 mm – 18000 mm
Send Inquiry
Chat Now
Description
Technical Parameters

Overview of P355N Pressure Vessel Plate

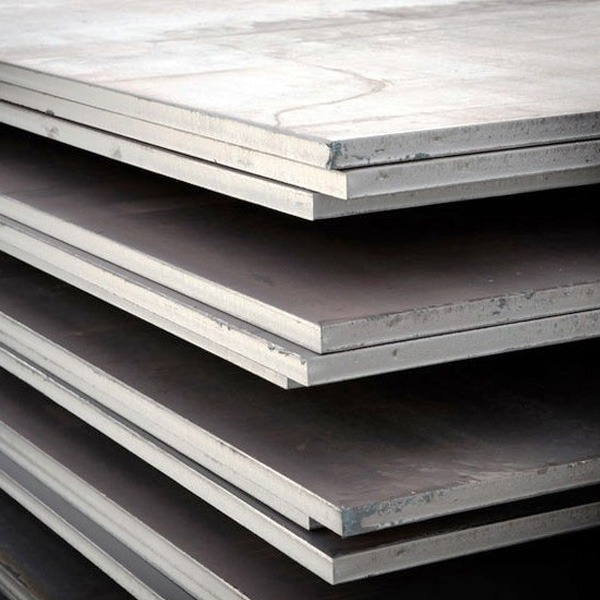

P355N, designated as material number 1.0562 under EN 10027-2, is a normalized weldable fine-grain steel plate specified in EN 10028-3:2017 for pressure vessel construction. It is classified as a non-alloy quality steel with controlled chemical composition limits and mandatory normalized heat treatment.P355N Pressure Vessel Plate

The grade is designed primarily for pressurized equipment operating at ambient and low-temperature conditions, a segment where it is the most widely specified grade within the EN 10028-3 family. It is fully compliant with the European Pressure Equipment Directive (PED 2014/68/EU) and is accepted by major classification societies for pressure vessel fabrication.


P355N PVQ plate chemical composition



Element Max % Element max %
C 0.20 Cu 0.30
Si 0.50 Mo 0.08
Mn 0.90-1.70 N 0.02
P 0.03 Nb 0.05
S 0.03 Ni 0.50
AL 0.020 Ti 0.03
Cr 0.30 V 0.10
Nb+Ti+V 0.12




P355N PVQ steel plate mechanical property



Property Temperature Value

Charpy impact energy

-20 °C

30 J



-20 °C

45 J



0 °C

40 J



0 °C

65 J



20 °C

50 J



20 °C

75 J

Elongation



18 %



22 %

Tensile strength



490 - 630 MPa

Yield strength



355 MPa



Elevated Temperature Yield Strength (Indicative)
Although P355N is not optimized for elevated temperature service, the following typical values apply up to 100 °C for design reference:

Temperature Yield Strength Retention (% of room temp)
50 °C ~95%
100 °C ~90%
200 °C ~80%

Above 300 °C, P355NH is the recommended grade for reliable creep and stress-rupture performance.





P355N Pressure Vessel Steel Plate Specifications and Tolerances



P355N steel sheets and plates are available in the following size ranges:

Dimension Available Range
Thickness 6 mm – 250 mm
Width 1500 mm – 4500 mm
Length 3000 mm – 18000 mm

Thickness Tolerance per EN 10029 Class A (mm)

Nominal Thickness Width ≤ 1500 Width 1500–2500 Width 2500–4000
3 – 5 ±0.55 ±0.70 ±0.85
5 – 8 ±0.65 ±0.85 ±1.00
8 – 15 ±0.80 ±1.00 ±1.20
15 – 25 ±1.00 ±1.20 ±1.40
25 – 40 ±1.20 ±1.40 ±1.60
40 – 60 ±1.30 ±1.50 ±1.80
60 – 100 ±1.50 ±1.70 ±2.00
100 – 150 ±2.00 ±2.20 ±2.50
150 – 200 ±2.50 ±2.70 ±3.00

Tighter tolerances (Class B or Class C) are available on request. Custom cut-to-size service is provided without additional material waste surcharge for standard sizes.



P355N vs. P355NH vs. P355NL1 vs. P355NL2 – How to Choose

The EN 10028-3 family includes four normalized fine-grain steel grades with the same base strength level but different application temperatures. The right selection depends on the minimum design metal temperature (MDMT) of the project:

Grade Material No. Impact Test Temperature Best Suited For
P355N 1.0562 -20 °C (standard) Ambient and cold service down to -20 °C
P355NH 1.0565 -20 °C (standard) Elevated temperature service up to 400 °C, with guaranteed high-temperature yield strength
P355NL1 1.0566 -40 °C Low-temperature service in cold climates and refrigerated storage
P355NL2 1.0568 -50 °C Extreme low-temperature service (Arctic, cryogenic gas plants)

Decision Guide:

  1. If operating temperature ≥ -20 °C and ≤ 100 °C → Choose P355N (most cost-effective)
  2. If operating temperature > 100 °C and ≤ 400 °C → Choose P355NH (elevated temperature yield values guaranteed)
  3. If MDMT is between -20 °C and -40 °C → Choose P355NL1 (verified impact at -40 °C)
  4. If MDMT is below -40 °C → Choose P355NL2 (verified impact at -50 °C)

All four grades share the same chemical composition limits per EN 10028-3, so consumables and welding procedures are interchangeable across the family.

Unsure which grade to choose? Our engineering team will tailor the most suitable technical solution based on your specific project requirements.

Contact us



P355N Welding, Fabrication and Machining Guide

Welding
P355N exhibits good weldability under standard shop conditions. The following guidelines apply:

Parameter Recommendation
Preheating 100 – 150 °C for thickness > 30 mm; not required for ≤ 30 mm
Welding processes SAW, MIG/MAG, TIG, SMAW
Consumables Low-hydrogen electrodes, matching strength level
PWHT Required for thickness > 50 mm per EN 13445; temperature must not exceed 620 °C to avoid strength loss
Interpass temperature ≤ 250 °C

Machining
P355N has good machinability, approximately 66% relative to B1112 reference steel. Drilling and tapping require slower spindle speeds, adequate cutting fluid, and sharp carbide or cobalt tooling due to the material's work-hardening tendency.

Cold Forming
Excellent cold bending capability. Minimum inside bend radius of 2× thickness for longitudinal bending and 3× thickness for transverse bending is recommended.



P355N Carbon-Manganese Steel Plate Industry Applications

Petrochemical and RefiningP355N Carbon-Manganese Steel Plate Industry Application

  • Butane and propane storage spheres
  • Amine absorber columns
  • High-pressure separator vessels
  • Hydrocracker reactor shells

Power Generation

  • Boiler drums and steam accumulators
  • Feedwater heater shells
  • Condenser hotwells

Oil and Gas Production

  • LPG cylinder manufacturing
  • Gas dehydration and sweetening units
  • Pig launcher and receiver barrels



Processing Capabilities

GNEE provides the following value-added processing services for P355N plates:

1. Cutting Servicesproduct-700-1050

Plasma cutting: up to 150 mm thickness

Laser cutting: up to 30 mm thickness

Shearing: up to 20 mm thickness

All cutting with chamfered edges for welding preparation

2. Drilling and Boring

CNC drilling for bolt holes, tube sheets, and flanges

Counterboring and tapping per project specifications

3. Forming and Bending

Cold bending: up to 100 mm thickness

Roll bending for cylindrical shells

Press braking for flat stiffeners and brackets

4. Welding and Assembly

SAW, MIG/MAG, and TIG welding

PWHT capability in controlled furnaces

Fit-up and tack welding for sub-assemblies

5. Surface Treatment

Shot blasting (Sa 2.5)

Priming and painting per customer specification

Rust preventive oil application for export



Why Choose us?

  1. We maintain a stock of thousands of tons of steel, with same-day shipping for standard specifications. Small trial orders and samples are supported; minimum order quantities are not mandatory.
  2. Competitive pricing – Direct mill relationships and volume purchasing enable cost-effective quotations
  3. Our exclusive export standard packaging includes: waterproof film + moisture-proof paper + solid wood pallet + corner protectors.

P355N Pressure Vessel Steel Plate warehouse

P355N Pressure Vessel Steel Plate package

GNEE Steel supplies P355N pressure vessel steel plates to fabricators and engineering contractors worldwide. We offer competitive pricing, reliable lead times, and comprehensive technical support.

Get A Free Quote



FAQ

What is the indicative price range for P355N steel plates?
Indicative FOB prices as of Q3 2026 range from approximately USD 680–1,300 per metric ton depending on thickness, quantity, and additional testing requirements. Prices are subject to market fluctuations and shall be confirmed by formal quotation. For the most current pricing, please contact our sales team.



What is the service temperature of P355N?

The service temperature range for P355N steel is typically -20°C to 350°C (and up to 400°C depending on specific codes and short-term operational limits), with standard low-temperature impact testing performed at -20°C.



Is P355N easy to bend?

P355N steel has good formability and is considered relatively easy to bend, provided you use appropriate workshop techniques and machinery.
