EN10028-6 P690QL2 Boiler Steel Plate
P690QL2 is a high-strength fine grain tempered steel plate, the minimum yield strength of the container steel plate is 690MPa, tensile strength of 770-940MPa. With the large-scale pressure vessels, the application of high-strength steel demand is increasing, with the market demand for larger tank volume, the strength of the steel plate used puts forward higher requirements, high-strength steel plate application, can reduce the tank product quality. The application of high-strength steel plate can reduce the quality of tank products and realize larger product volume.
EN10028-6 p690QL2 vessel plate chemical composition
| Grade | C% | SI% | Mn% | P% | S% | N% | B% | Cr% | Mo% | Cu% | Nb% | Ni% | Ti% | V% | Zr% |
| P690QL2 | 0.2 | 0.8 | 1.7 | 0.02 | 0.01 | 0. 015 | 0.005 | 1.5 | 0.7 | 0.3 | 0.06 | 2.5 | 0.05 | 0.12 | 0.15 |
EN10028-6 P690QL2 pressure vessel steel plate mechanical property
| Nominal thickness (mm): | to 100 | 100 - 150 |
| Rm - Tensile strength (MPa) (+QT) | 770-940 | 720-900 |
| Nominal thickness (mm): | to 50 | 50 - 100 | 100 - 150 |
| ReH - Minimum yield strength (MPa) (+QT) | 690 | 670 | 630 |
| Nominal thickness(mm): | to 40 | 40 - 50 | 50 - 65 | 65 - 80 | 80 - 100 |
| Rp0.2 0.2% proof strength (MPa) (+QT) | 690 | 650 | 615 | 580 | 540 |
| KV - Impact energy (J) transverse, (+QT) | -60° 27 |
-40° 27-40 |
-20° 40-60 |
0° 53-80 |
+20° 60 |
| KV - Impact energy (J) longitud., (+QT) | -40° 40 |
-30° 50 |
-20° 60 |
-10° 70 |
0° 80 |
+20° 90 |
| A - Min. elongation at fracture (%) (+QT) | 14-16 |
EN10028-6 P690QL1 pressure vessel steel plate application
P690QL2 steel plate for pressure vessels is widely used in petroleum, chemical, power station, boiler and other industries for the production of reactors, heat exchangers, separators, ball tanks, oil and gas tanks, liquefied gas tanks, nuclear power reactors, pressure hulls, boiler ladles, liquefied petroleum gas cylinders, high-pressure water pipes of hydropower stations, turbine worm shells and other equipment and components.

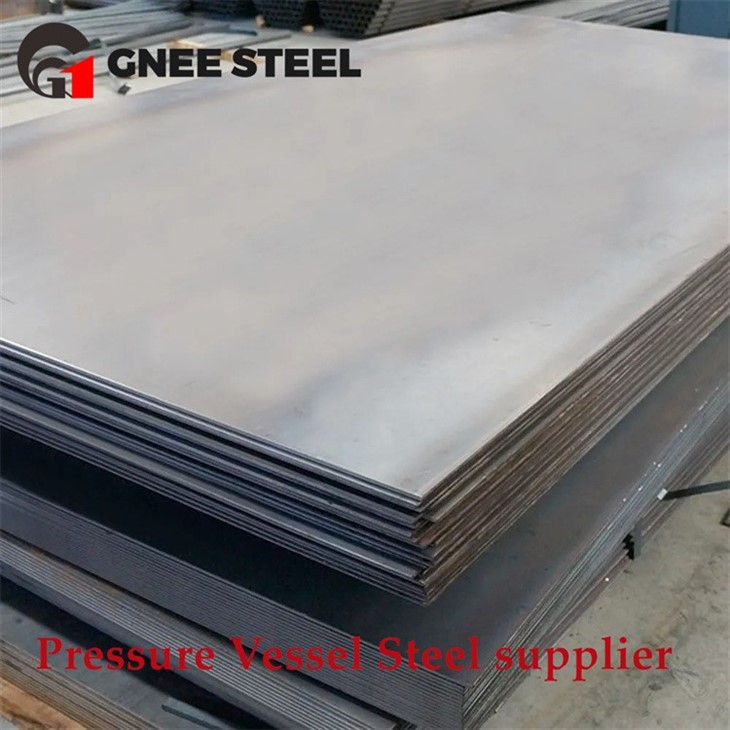

EN10028-6 P690QL1 vessel steel plate Products image
GNEE group team photo
GNEE group customer visit
We have enough EN10028-6 P690QL2 Boiler Steel Plate in stock, and we can also customize it according to your needs.
