ASTM A572 High Strength Steel I Beam
A572-50 steel H beam are widely used in construction applications because of their high strength per unit weight. Low levels of alloying elements such as niobium and vanadium optimise strength and atmospheric corrosion properties, and with a yield strength of up to 50,000 ksi, A572-50 I-beams are replacing ordinary carbon steel I-beams such as A36, which require thickening to meet strength requirements.
Other grades of ASTM 572 H shaped steel are available, such as 42, 55, and 60.
a572 h section steel chemical composition
| Item | Grade | Carbon, max, % | Manganese, max, % | Silicon, max, % | Phosphorus, max, % | Sulfur, max, % |
|---|---|---|---|---|---|---|
| A572 steel beams | 42 | 0.21 | 1.35 | 0.40 | 0.04 | 0.05 |
| 50 | 0.23 | 1.35 | 0.40 | 0.04 | 0.05 | |
| 55 | 0.25 | 1.35 | 0.40 | 0.04 | 0.05 |
a572 metal h beam mechanical property
| Item | Grade | Yield point, min, ksi [MPa] | Tensile strength, min, ksi [MPa] |
|---|---|---|---|
| A572 steel beams | 42 | 42 [290] | 60 [415] |
| 50 | 50 [345] | 65 [450] | |
| 55 | 55 [380] | 70 [485] |
a572 h beam metal - IPE sizes
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| IPE 80 | 6.0 | 80 | 46 | 3.8 | 5.2 |
| IPE 100 | 8.1 | 100 | 55 | 4.1 | 5.7 |
| IPE 120 | 10.4 | 120 | 64 | 4.4 | 6.3 |
| IPE 140 | 12.9 | 140 | 73 | 4.7 | 6.9 |
| IPE 160 | 15.8 | 160 | 82 | 5.0 | 7.4 |
| IPE 180 | 18.8 | 180 | 91 | 5.3 | 8.0 |
| IPE 200 | 22.4 | 200 | 100 | 5.6 | 8.5 |
| IPE 220 | 26.2 | 220 | 110 | 5.9 | 9.2 |
| IPE 240 | 30.7 | 240 | 120 | 6.2 | 9.8 |
| IPE 270 | 36.1 | 270 | 135 | 6.6 | 10.2 |
| IPE 300 | 42.2 | 300 | 150 | 7.1 | 10.7 |
| IPE 330 | 49.1 | 330 | 160 | 7.5 | 11.5 |
| IPE 360 | 57.1 | 360 | 170 | 8 | 12.7 |
| IPE 400 | 66.3 | 400 | 180 | 8.6 | 13.6 |
| IPE 450 | 79.1 | 450 | 190 | 9.4 | 14.6 |
| IPE 500 | 90.7 | 500 | 200 | 10.2 | 16 |
| IPE 550 | 106.0 | 550 | 210 | 11.2 | 17.2 |
| IPE 600 | 124.4 | 600 | 220 | 12 | 19 |

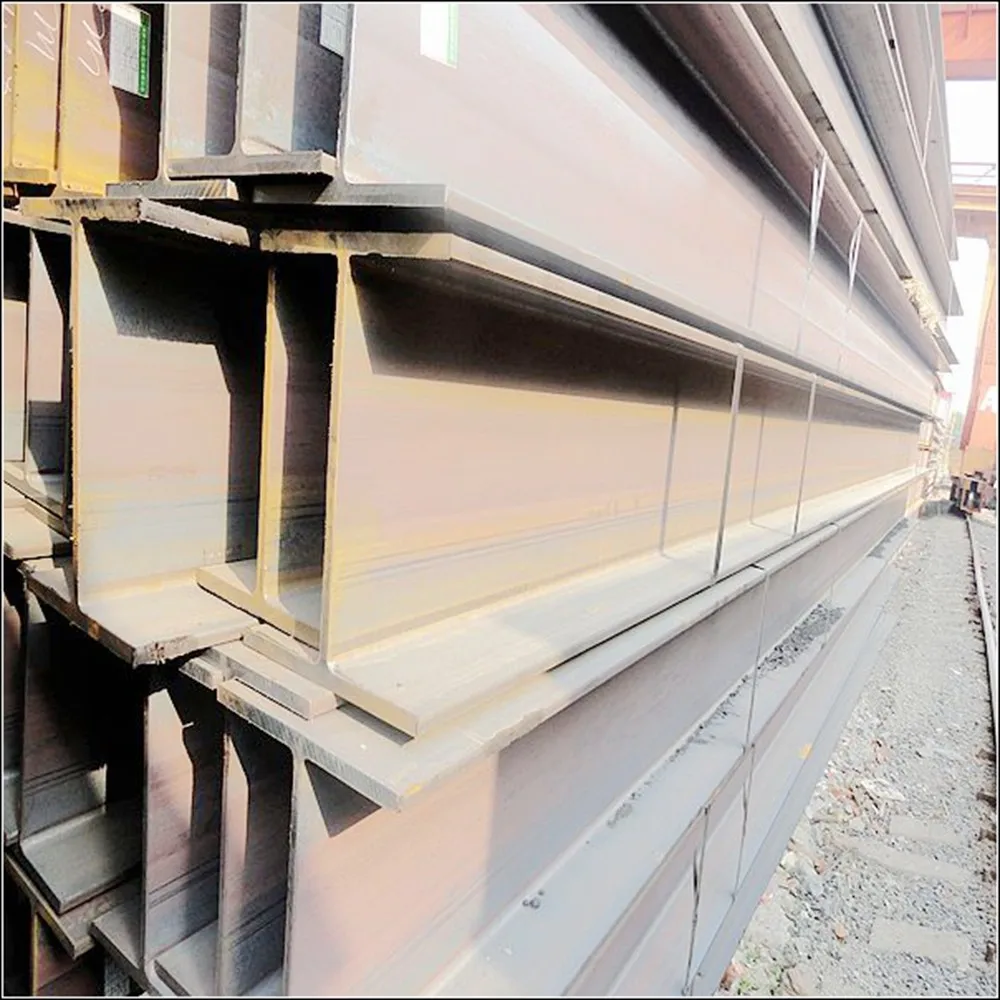

a572 h section beam Products image
GNEE group team photo
GNEE group customer visit
We have professional online service personnel. If you have any questions about ASTM A572 High Strength Steel I Beam, please send us an inquiry and we will reply to you within one working day.
