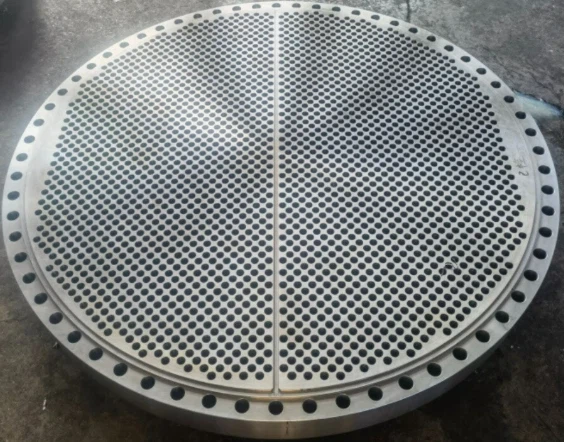

ASTM A387 Grade 11 CL2 Heat Exchanger Tube Sheet 32 MM THK

Product Item: Heat Exchanger Tube Sheet,ASTM A387 Grade 11 Class 2 Pipe Sheet, Heat Exchanger Tube plate
Type: Tube Sheet
Material: ASTM A387 Grade 11 Class 2
OD: 1695 MM
Thickness: 32 MM
Dimension: Customized

As a leading heat exchanger tube sheet supplier in China, we offer products made from ASTM A387 Grade 11 Class 2 alloy steel, known for its excellent high-temperature resistance and strength.

Our tube sheets are customizable to meet specific project requirements and feature an outside diameter of 1695 mm and a thickness of 32 mm, ensuring optimal performance and durability in demanding industrial applications.

Baffle Plate SA387 GR.11 CL.2 for Heat Exchanger

We are professional Baffle Plate SA387 GR.11 CL.2 for Heat Exchanger,BAFFLE PLATE,TUBE SUPPORT PLATE manufacturer and exporter in china.

SA387 Grade 11 Class 2 Baffle Plate is a type of plate made from chromium-molybdenum steel designed for high-temperature and high-pressure environments, commonly used in the construction of pressure vessels, boilers, and heat exchangers.

Baffle plates are essential components in heat exchangers and other industrial systems where efficient heat transfer and fluid flow are necessary.

A baffle plate made from SA387 Gr. 11 Cl. 2 refers to a component used in pressure vessels, heat exchangers, or other equipment that requires specific material properties for handling high pressure and temperature.

ASTM A387 is a standard specification for pressure vessel plates, alloy steel, chromium-molybdenum. This type of steel is used for high-temperature service.

SA387 Gr. 11 Cl. 2 is a chromium-molybdenum alloy steel that contains approximately 0.5% chromium and 1% molybdenum. This composition provides enhanced strength, improved resistance to thermal fatigue, and high creep strength at elevated temperatures, making it suitable for high-temperature and high-pressure applications.

Gr. 11: Refers to Grade 11, which is an alloy steel made with chromium and molybdenum. It provides excellent resistance to heat and corrosion, making it ideal for high-temperature, high-pressure applications.
Cl. 2: Refers to Class 2, which indicates a specific heat treatment process for the steel, ensuring it has the required strength and durability for demanding service conditions.

Tensile Requirements for ASME SA387 Grade 11 Class 2 Plates

ASME SA387 GR 11 CL 2 Tube Sheet for Heat Exchager Shipped To Venezuela

a high-quality Tube Sheet for Heat Exchanger Equipment, featuring dimensions OD 1695.5mm x ID 327mm x THICK 32mm, with 529 holes of DIA 44.96mm. Crafted from ASME SA387 Grade 11 Class 2 materials and securely packaged in a wooden case.

• Product Item: Tube Sheet for Heat Exchager Equipement
• Materials: ASME SA387-11-CL2
• Dimension: OD 1695.5 MM X ID 327 MM X THICK 32 MM, according to Customer required drawing
• Holes Dimension requirement: 529 HOLES X DIA 44.96 MM
• Packing: Wooden Case Package

Looking for Heat Exchanger Tube Sheet? Order Now!

Titanium/ NI/Zr/ Stainless steel tubular heat exchangers, shell and tube heat exchanger, seperator, condensers, evaporators, reaction tanks, storage tanks, snake-pipe heat exchanger, cathode drums, plates for electrolysis, electrodes, mesh baskets, propellers, Separator, packed tower, plate tower, filter, stripping tower, urine washing tower, deaerator, oil trap, buffer, scrubber, absorption tower, copper washing tower, drying tower, points cylinder, spherical tank or sphere, storage Vessel , tower or column vessel,Reaction vessel, distillation column,agitator, etc.

Materials: Titanium, nickel, titanium/steel, nickel/steel, copper, stainless steel/steel, carbon steel composites
Pressure: low-pressure, medium-pressure and high-pressure.
Temperature: low-temperature heat exchanger, medium-temperature heat exchanger,but also high-temperature heat exchanger.
Medium: not only non-flammable, non-toxic and non-corrosive medium but also flammable, toxic, corrosive medium and highly flammable, highly toxic, highly corrosive medium.

Product Description

We provide comprehensive metal fabrication and CNC machining services to customers around the globe, especially for large and heavy steel parts with high accuracy requirements. We work with all kinds of steels including iron/steel castings, forgings, fabricated carbon/stainless steel structures, aluminum alloys, etc.


Our metal fabrication capabilities mainly include:
Laser Cutting (Max. 6000W) / Plasma Cutting / Flame Cutting (Max. 250mm) / Waterjet Cutting,
Press Braking (Max. 6000t), Plate Rolling (Max. 4250×210mm), Hydraulic Pressing (Max. 5000t), Section Bending,
Robotic Welding / Surfacing Welding, Etc.


Our factory equipped with all series of world-class CNC machine tools like: Germany Schiess Double-gantry boring and milling machine, Italy PAMA large boring mill, Japan Mitsubishi horizontal boring and milling machine, China WZ large vertical turning center etc. Our advanced machine tool fleet allows us to complete even the largest machining projects ever known on earth.



Being as a quality-oriented metal fabricator, we have equipped our factory with the best inspection tools. For example, our Leica AT901-LR laser tracker helps us to make sure the machine tools working in good order all the time that it can measure any large object within a sphere area of 80m in semi-diameter, the measurement accuracy is up to a micron. What's more? We also have different types of CMM test machine, our biggest Zeiss measuring machines can work on component up to 7000x4000x3000mm with an accuracy of up to 0.43um.
