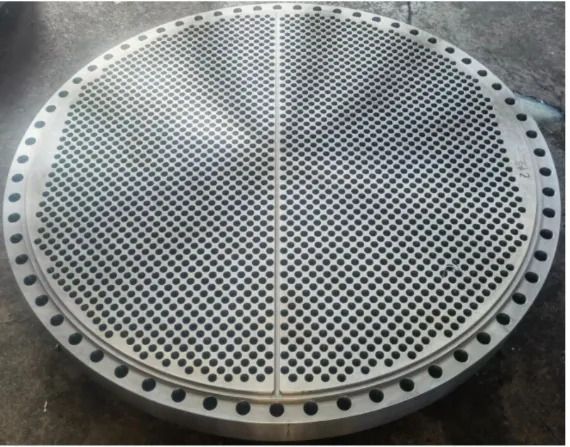

Product Item: Tube Sheet for Heat Exchager Equipement
Materials: ASME SA387-11-CL2
Dimension: OD 1695.5 MM X ID 327 MM X THICK 32 MM, according to Customer required drawing
Holes Dimension requirement: 529 HOLES X DIA 44.96 MM
Packing: Wooden Case Package
Discover a high-quality Tube Sheet for Heat Exchanger Equipment, featuring dimensions OD 1695.5mm x ID 327mm x THICK 32mm, with 529 holes of DIA 44.96mm. Crafted from ASME SA387 Grade 11 Class 2 materials and securely packaged in a wooden case.
Tube sheets Material:
Typically made from carbon steel, stainless steel, brass, or alloys (e.g., Inconel or titanium).
TubeSheet for Heat Exchanger
| Type of materials | Technical requirements * according to customer requirement |
| Duplex Stainless Steel | ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel | ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
| Carbon Steel | ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
| Alloy Steel | ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3 |
| Non Ferrous | Titanium, Brass, Al-Brass, Copper Nickel, Nickel Alloys, Hastelloy |
| Titanium | ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
| Copper Nickel | ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30) |
| Brass, Al-brass | ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
| Nickel Alloys | ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625 |
| Alloy 20 | ASTM/ASME SB472 UNS 8020 |
| Hastelloy | ASTM/ASME SB564, UNS10276 ( C 276 ) |
| Claded materials | ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1. |
| Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc. |
Applications of tube sheet
Heat Exchangers:
Used to separate and support the tube bundle while maintaining the integrity of shell-side and tube-side fluids.
Boilers:
Tubesheets provide structural support for the tubes that carry steam or hot water.
Condensers:
Serve as the interface for cooling water tubes in power plants and HVAC systems.
Chemical Processing Equipment:
Used in reactors or pressure vessels to handle aggressive chemicals.
What is a tube sheet (tubesheet) for heat exchanger?
A tube sheet is usually made from a round flat piece of plate,sheet with holes drilled to accept the tubes or pipes in a accurate location and pattern relative to one another.The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements. Tubes are attached to the tube sheet by hydraulic pressure or by roller expansion.
Tube sheet (tubesheet) for heat exchanger
A tubesheet may be covered in a cladding material which serves as a corrosion barrier and insulator. Low carbon steel tube sheets can include a layer of a higher alloy metal bonded to the surface to provide more effective corrosion resistance without the expense of using the solid alloy,which means it can save a lot of cost.
Drilling of tube sheet
Cladded Tube Sheet
Heat exchanger tube sheet features
◆ Base Material: Crafted from robust materials such as Carson steel plate, 16mn, and more, our tube sheets offer unwavering strength and longevity.
◆ Clad Material: Choose from a range of top-grade materials, including Titanium, C276, Monel, Stainless Steel, Zirconium, and more, ensuring corrosion resistance and durability.
◆ Production: Exchanger tube sheets are meticulously crafted using the explosion bonding technique, guaranteeing exceptional bonding and structural integrity.
◆ Customization: Tailored to your precise requirements, cald tube sheets come in a variety of dimensions, ensuring a perfect fit for your heat exchanger.
◆ Standards: Compliant with ASTM/ASME standards, tube sheet cladding meets the highest industry benchmarks for quality.
◆ Certifications: Rest assured with MTC, TPI, and ISO9001 certifications, signifying our unwavering commitment to quality control.
Specifications
| Item | Cladded heat exchanger tube sheet (explosion bonding) |
| Base Material | Carson steel plate, 16mn, ect |
| Clad Material | Titanium, C276, monel, stainless steel, Zirconium, etc. |
| Production | Explosion bonding |
| Dimension | Customized according to your needs |
| Standard | ASTM/ASME |
| Certificate | MTC, TPI, ISO9001 |
| Application | Petroleum, chemistry, electricity, paper making, alkali making, irrigation works, automobiles, salt, medicine, food and public facilities |
| Package | Standard export sea-worthy package |
| Delivery Time | Usually 15-25 days after receiving the 30% deposit |
| Payment terms | TT, L/C, DP or Negotiable |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) |
| Note | We are so able to produce other standard as per the clients' requirements, Just let us know |
Uses
Heat exchanger tube sheets are used in a multitude of industries, including petroleum, chemistry, electricity, paper making, alkali making, irrigation works, automobiles, salt, medicine, food, and public facilities. Versatility is our strength.
