High Yield High Strength Steel Plates – S690Q & S890Q

As modern engineering moves toward lighter, stronger, and more efficient structures, high yield high strength steel plates have become the preferred material choice for heavy-duty and weight-critical applications.

Among these steels, S690Q and S890Q, manufactured according to EN 10025-6, are two of the most widely used grades in global construction, crane, mining, and heavy machinery industries.

This guide explains the key characteristics, differences, applications, and buying considerations of S690Q and S890Q steel plates, helping engineers and procurement teams select the right material with confidence.

Naming convention:

S: Structural steel (European designation)

690/890: Minimum yield strength in MPa

Q: Quenched and tempered delivery condition

S690Q – Easier Fabrication

• Lower carbon equivalent
• Lower risk of cold cracking
• Suitable for complex welded structures
• Reduced preheating requirements



S890Q – Higher Strength, More Control Needed

• Higher heat input sensitivity
• Preheating recommended for thick plates
• Strict control of welding parameters required
• Higher springback during bending

S690Q Applications:



Heavy Construction Machinery:

• Crane booms (up to 500 tons)
• Excavator arms and buckets
• Loader frames



Transportation:

• Truck chassis and dump bodies
• Railway freight car components



Infrastructure:

• Bridges (especially movable parts)

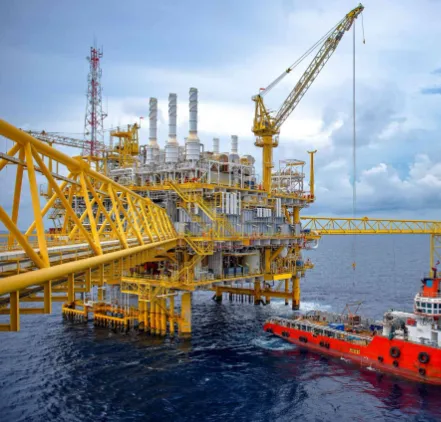

• Offshore platforms

S890Q Applications:



Super-Heavy Lifting Equipment:

• 4500-ton crawler cranes
• 800+ ton all-terrain crane booms



Mining & Heavy Industry:

• Ultra-heavy dump truck frames
• Underground mining support structures



Specialized Applications:

• Wind turbine components (high-stress joints)
• Military vehicles

When to Choose S690Q:

General heavy machinery requiring good strength-to-weight ratio

Structures with varying thicknesses

Applications where weldability and formability are important

Cost-sensitive projects needing high strength without premium pricing

When to Choose S890Q:

Extreme load-bearing applications where weight reduction is critical

High-stress components in mobile equipment

Projects requiring maximum strength with minimal material usage

Specialized machinery (e.g., cranes, mining dump trucks)

Grade Selection Based on Temperature:

-20°C environments: S690Q or S890Q

-40°C environments: S690QL or S890QL

-60°C environments: S690QL1 or S890QL1

GNEE Steel is a professional supplier of high yield high strength steel plates, offering:

• EN 10025-6 compliant S690Q & S890Q
• Stable quenched & tempered quality
• Thickness range: 6–120 mm
• Custom cutting and profiling services
• EN 10204 3.1 / 3.2 certificates
• Global export experience for heavy engineering projects
• Technical support for welding and fabrication

S690Q and S890Q high yield high strength steel plates are proven solutions for modern heavy engineering projects.

S690Q delivers excellent strength with easier fabrication

S890Q offers superior weight reduction and load capacity

Selecting the right grade ensures structural safety, cost efficiency, and long-term performance.

Click to get a free sample

📩 Request a Quote from GNEE Steel

Looking for S690Q or S890Q steel plates for your project?

✔ Competitive pricing
✔ Fast response
✔ Professional technical support

Contact GNEE Steel today to receive your customized quotation and expert advice.

Q1: What is S890Q steel plate?

A:S890Q is a high-strength structural steel plate according to EN 10025-6, supplied in quenched and tempered (Q) condition, with a minimum yield strength of 890 MPa.

Q2: What is the material number of S890Q?

A:The European material number for S890Q is 1.8940.

Q3: Is S890Q considered non-alloy steel?

A:Yes. Under EN classification, S890Q is listed as non-alloy structural steel, although small alloying elements are added for strength and toughness control.

Q4: What thickness range is available for S890Q steel plate?

A:Common supply thickness ranges from 6 mm to 150 mm, depending on mill capability and standard requirements.

Q5: What are the mechanical properties of S890Q?

A:

Yield strength: ≥ 890 MPa (≤ 50 mm)

Tensile strength: 940–1100 MPa

Elongation: ≥ 11%

Impact test: ≥ 30 J at −20°C

Q6: Can S890Q steel be welded easily?

A:Yes, S890Q has good weldability, but welding must follow controlled procedures, including proper heat input, preheating (if required), and suitable filler materials.

Q7: What is the difference between S890Q and S890QL?

A:S890QL offers better low-temperature impact toughness than S890Q and is typically specified for colder environments or critical structures.

Q8: What are typical applications of S890Q steel plate?

A:S890Q is widely used in:

Cranes and lifting equipment

Bridges and heavy structures

Mining and earthmoving machinery

Wind power and offshore structures

Heavy-duty vehicle frames

Q9: Can S890Q replace S690Q to reduce weight?

A:Yes. Using S890Q instead of S690Q allows significant weight reduction while maintaining or increasing load capacity, which is especially valuable for mobile equipment.

Q10: What inspection and certificates are required for S890Q?

A:Standard supply includes EN 10204 3.1 MTC.

3.2 certificates, ultrasonic testing (UT), and third-party inspection (SGS, BV, TUV) are available upon request.

Q11: Is S890Q suitable for pressure vessel applications?

A:No. S890Q is a structural steel, not designed for pressure vessel or boiler applications. Pressure vessel steels must comply with specific PV standards such as EN 10028 or ASME.

Q12: What delivery condition is required for S890Q steel plate?

A:S890Q must be supplied in quenched and tempered (Q) condition as per EN 10025-6.

Q13: Can you cut or machine S890Q steel plate?

A:Yes. Flame cutting, plasma cutting, and machining are possible with controlled parameters to maintain material properties.

Q14: Does S890Q steel require special storage or handling?

A:Standard dry storage is sufficient. Surface protection can be added for long-term outdoor storage.
