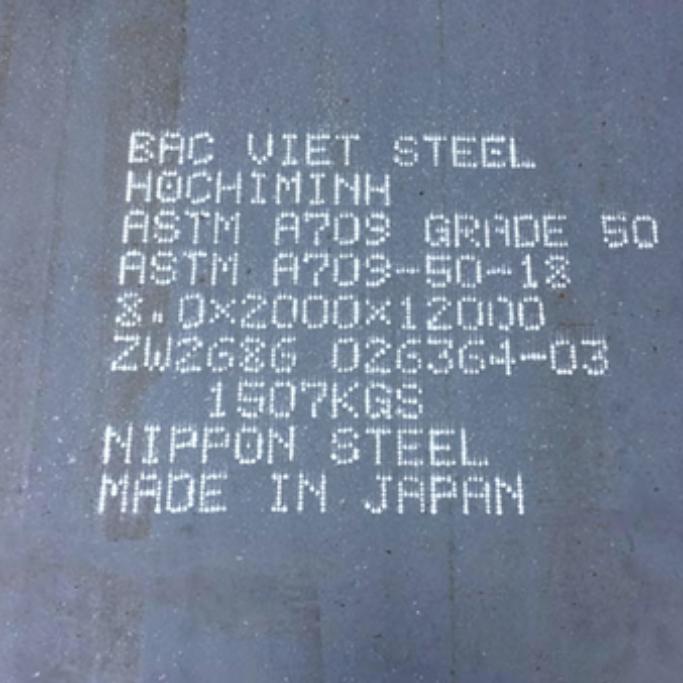

ASTM A709 Low Alloy Structural Steel

ASTM A709 is the industry gold standard for bridge construction.



At GNEE STEEL, we provide high-performance A709 plates and shapes designed to ensure the safety and longevity of your structural projects. Build with confidence-build with GNEE.





ASTM A709 is the standard specification for structural steel used primarily in the construction of bridges. It covers high-strength, low-alloy (HSLA) steel shapes, plates, and bars.



Unlike standard structural steel, A709 is specifically engineered to handle the dynamic loads and environmental stresses unique to bridge engineering, including requirements for notch toughness (Charpy V-notch testing).



It is available in several grades, including Grade 36, 50, 50W, 70W, 100, and HPS (High-Performance Steel) varieties.



The chemical makeup of ASTM A709 varies by grade to optimize weldability and atmospheric corrosion resistance.

Grade	Carbon (max %)	Manganese (%)	Phosphorus (max %)	Sulfur (max %)	Silicon (%)
Grade 36	0.25 - 0.29	---	0.04	0.05	0.40
Grade 50	0.23	1.35	0.04	0.05	0.40
Grade 50W	0.19	0.80 - 1.35	0.04	0.05	0.30 - 0.65
HPS 70W	0.11	1.10 - 1.50	0.02	0.006	0.30 - 0.50

Note: Grade 50W and HPS grades contain additional alloying elements like Copper, Chromium, and Nickel for enhanced corrosion resistance.





ASTM A709 is categorized by its yield strength (ksi).

Grade	Yield Strength (min ksi)	Tensile Strength (ksi)	Min. Elongation (%)
Grade 36	36	58 - 80	20%
Grade 50 / 50W	50	65 - 70	18%
Grade 70W / HPS 70W	70	85 - 110	19%
Grade 100 / 100W	100	110 - 130	18%







GNEE Steel stocks the following standard sizes, but other sizes may be available for special orders.

GRADE	THICKNESS	WIDTH	LENGTH
36	3/16" – 4"	48" – 120"	Up to 480"
50	3/16" – 4"	48" – 120"	Up to 480"
50W	3/16" – 4"	48" – 120"	Up to 480"
HPS 50W	3/16" – 4"	48" – 120"	Up to 480"
HPS 70W	3/16" – 4"	48" – 120"	Up to 480"





High Strength-to-Weight Ratio: Reduces the total weight of the structure, allowing for longer spans and reduced foundation costs.



Atmospheric Corrosion Resistance: "W" grades (like 50W) develop a protective "patina," eliminating the need for painting and reducing maintenance costs.



Fracture Toughness: Mandatory Charpy V-notch testing ensures the steel performs reliably under impact and in cold climates.



Excellent Weldability: Optimized chemical composition allows for easy on-site or shop welding without compromising structural integrity.





ASTM A709 is the "bridge steel" of choice for:

• Highway & Railway Bridges: Girders, trusses, and support beams.
• Pedestrian Bridges: Durable and aesthetically pleasing (weathering steel).
• Overpasses & Interchanges: High-load structural components.
• Marine Structures: Piers and coastal infrastructure (using weathering grades).





Internal Comparison (Within A709)

Grade 50 vs. 50W: Grade 50 is standard HSLA steel; 50W (Weathering) contains extra alloys to resist rust.

HPS (High Performance Steel): HPS 70W offers higher toughness and better weldability than standard 70W.



Equivalent Grade Comparison

ASTM A709 Grade	Equivalent Standard Steel	Key Difference
A709 Grade 36	ASTM A36	A709 has stricter toughness requirements for bridges.
A709 Grade 50	ASTM A572 Grade 50	Very similar, but A709 is bridge-certified.
A709 Grade 50W	ASTM A588	Identical chemistry; A709 specifies bridge-specific testing.





Can ASTM A709 be used for non-bridge applications?
Yes, it is often used in heavy equipment and buildings where high strength and weathering properties are required.



Is painting necessary for A709 Grade 50W?

Generally, no. Grade 50W is designed to be left unpainted, as the stable rust layer protects the steel.



What is the difference between A709 and A572?
While they share chemical properties, A709 requires Charpy V-notch impact testing to ensure it won't crack under the dynamic loads of moving vehicles on a bridge.



What is grade A709 steel?

The ASTM A709 is the Standard Specification for Structural Steel for Bridges and encompasses carbon, high-strength low-alloy, and quenched and tempered alloy steels used as structural plates in the construction of bridges. GNEE offers the following five grades of A709; 36, 50, 50W, HPS 50W and HPS 70W.



What is the difference between A36 and A709?

ASTM A709 grade 36 is a bridge material wherein carbon adds to the strength and hardenability of the steel. A36 has less than0. 30% carbon and thus, do not possess high hardenability. ASTM A709 grade 36 steel plate has improved corrosion resistance and can be used in outdoor applications.



What is the difference between A709 and A572 steel?

Summary: A572 Grade 50 is a general-purpose structural steel, while A709 Grade 50 is specifically engineered for bridge construction with stricter requirements for toughness, weldability, and quality control



Is A709 weathering steel?

Weathering steels are a family of ASTM specifications, as well as several trademarked specifications exhibiting similar corrosion resistant properties. The ASTM specifications are A588, A242, A606-4, A847, A871-65 and A709-50W.





Extensive Inventory: We carry a full range of thicknesses and grades (36 to HPS 100W).

Precision Processing: On-site laser, plasma, and flame cutting to your exact specifications.

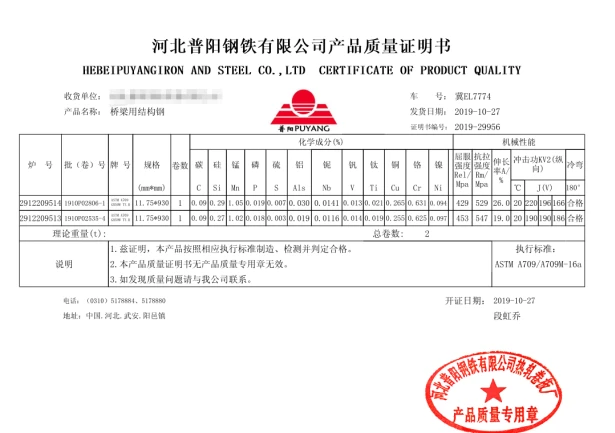

Certified Quality: All products come with Mill Test Certificates (MTC) according to EN 10204 3.1.

Global Logistics: Decades of experience exporting to over 70 countries with sea-worthy packaging.





When it comes to bridge engineering, there is no room for compromise. ASTM A709 provides the specific mechanical and chemical properties needed to ensure public safety and structural endurance.



Whether you need standard carbon bridge steel or high-performance weathering steel, GNEE STEEL is your trusted partner.

[CONTACT US TODAY FOR A QUOTE]



Looking for the best price on ASTM A709 Steel?

GNEE STEEL offers competitive pricing and expert technical support for projects of all sizes.
📧 Email: alloy@gneesteelgroup.com
📞 WhatsApp/Phone: +86-372-5055135
