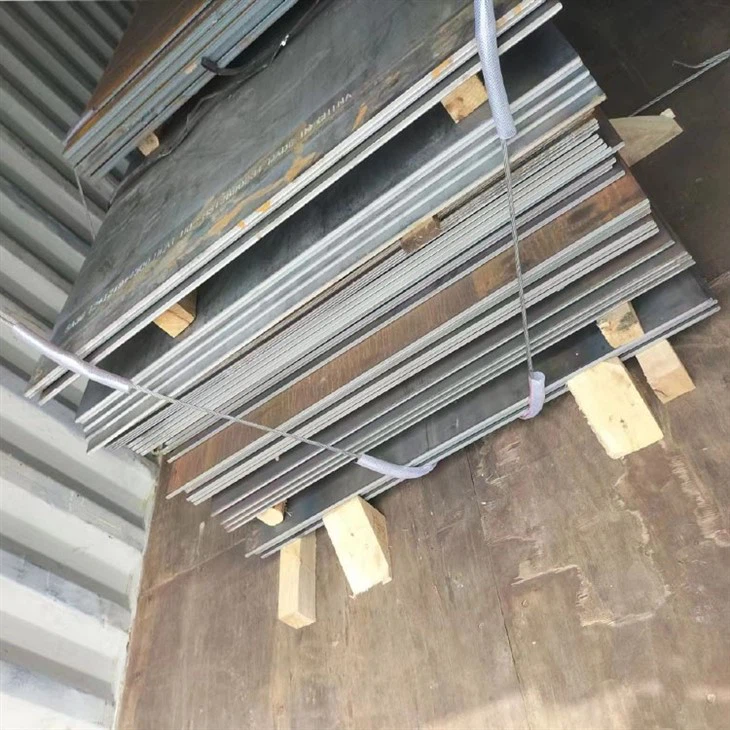

NK Hull Structure Plate

NK Hull Structure Plate

NK Hull Structure Plate is a high-quality steel plate that has been certified by Nippon Kaiji Kyokai (ClassNK) for use in building a ship's hull.



NK can be divided into:

General strength ship plating: A, B, D, E.

High-strength ship plates: AH32, AH36, AH40, DH32, DH36, DH40, EH32, EH36, EH40, FH36 and ultra-high-strength ship plates DH460, EH460, EH550, EH690, etc.



GNEE steel also has a pre-treatment process line can offer our clients shot blasting and shop primed service on NK AH36 shipbuilding steel hull structure plates. Blasting is according to SA2.5 standard, and the coating thickness of the shop primer painting is 20 micrometers or so for NK AH36 shipbuilding steel hull structure plates.



Clients can be never worried about GNEE NK AH36 shipbuilding steel hull structure plate quality, not only because of the quality-controlling from the NK classification society , but also from our steel mill. BBN steel offers Mill Test Certificate, whose information can match the HARD stamp on the NK AH36 shipbuilding steel hull structure plates by brand of manufacturer, Heat No., Batch No., steel grade, steel size, and the brand of Classification Society.





NK Steel Plate Grade
General Strength	K A	K B	K D	K E
High Strength	K A32	K D32	K E32	K F32
	K A36	K D36	K E36	K F36
	K AH40	K DH40	K EH40	K F40
Extra Strength	K A43	K D43	K E43	K F43
	K A47	K D47	K E47	K F47
	K A51	K D51	K E51	K F51
	K A56	K D56	K E56	K F56
	K A63	K D63	K E63	K F63
	K A70	K D70	K E70	K F70
	K A63N	K D63N	K E63N	K F63N
	K A70N	K D70N	K E70N	K F70N





Grade	Thickness(mm)	MinYield(Mpa)	Tensile(Mpa)	Elongation (%)	Min Impact Energy
NK Grade AH32	8mm-50mm	Min 315Mpa	440-590Mpa	22%	-	34J
	51mm-70mm	Min 315Mpa	440-590Mpa	22%	-	38J
	71mm-100mm	Min 315Mpa	440-590Mpa	22%	-	46J
The min impact energy is longitudinal energy



Grade	Thickness(mm)	MinYield(Mpa)	Tensile(Mpa)	Elongation (%)	Min Impact Energy
NK Grade EH32	8mm-50mm	Min 315Mpa	440-590Mpa	22	-40	34J
	51mm-70mm	Min 315Mpa	440-590Mpa	22	-40	38J
	71mm-100mm	Min 315Mpa	440-590Mpa	22	-40	46J
The minimum impact energy is longitudinal energy



Grade	Thickness(mm)	MinYield(Mpa)	Tensile(Mpa)	Elongation (%)	Min Impact Energy
NK Grade AH36	8mm-50mm	Min 355Mpa	490-620Mpa	21%	-0	34J
	51mm-70mm	Min 355Mpa	490-620Mpa	21%	-0	41J
	71mm-100mm	Min 355Mpa	490-620Mpa	21%	-0	50J
The min impact energy is longitudinal energy



Grade	Thickness(mm)	MinYield(Mpa)	Tensile(Mpa)	Elongation (%)	Min Impact Energy
NK Grade EH36	8mm-50mm	Min 355Mpa	490-620Mpa	21%	-40	34J
	51mm-70mm	Min 355Mpa	490-620Mpa	21%	-40	41J
	71mm-100mm	Min 355Mpa	490-620Mpa	21%	-40	50J
The min impact energy is longitudinal energy



Grade	Thickness(mm)	MinYield(Mpa)	Tensile(Mpa)	Elongation (%)	Min Impact Energy
NK Grade AH40	8mm-50mm	Min 390Mpa	510-650Mpa	20%	0	34J
	51mm-70mm	Min390Mpa	510-650Mpa	20%	0	41J
	71mm-100mm	Min 390Mpa	510-650Mpa	20%	0	50J
The min impact energy is longitudinal energy



Grade	Thickness(mm)	MinYield(Mpa)	Tensile(Mpa)	Elongation (%)	Min Impact Energy
NK Grade EH40	8mm-50mm	Min 390Mpa	510-650Mpa	20%	-40	34J
	51mm-70mm	Min390Mpa	510-650Mpa	20%	-40	41J
	71mm-100mm	Min 390Mpa	510-650Mpa	20%	-40	50J
The min impact energy is longitudinal energy

Get A Quote Now



Key Advantages of NK Hull Structure Plate



1. Strict NK Certification & Global Compliance

NK Hull Structure Plates are certified by Nippon Kaiji Kyokai, ensuring full compliance with international marine classification standards. They can also meet multi-class approvals (ABS, LR, DNV, CCS), making them suitable for global shipbuilding projects.



2. Guaranteed Low-Temperature Toughness of NK Hull Structure Plate

The ability to absorb energy without fracturing at sub-zero temperatures is a non-negotiable property of a true NK Hull Structure Plate. Our KD, KE, and all EH series plates undergo rigorous Charpy V-notch impact testing at temperatures as low as -40°C. This verified toughness is critical for vessels navigating icy Northern Sea Routes or carrying cryogenic LNG cargo. GNEE achieves this through strict control of inclusion cleanliness and by administering a fine-grain rolling practice that eliminates the brittle transition ductility trough, delivering material that stays reliable in the most unforgiving cold environments.



3. Excellent Weldability & Fabrication Performance

With low carbon equivalent (CEV), these plates minimize cracking risks during welding and support efficient fabrication processes such as cutting, bending, and forming-reducing production time and cost.



4. High Strength with Weight Optimization

High-strength grades like AH36, DH36, and EH36 allow shipbuilders to reduce plate thickness without compromising structural integrity, resulting in lighter vessels and improved fuel efficiency.



5. Superior Fatigue and Corrosion Resistance

A vessel's lifecycle cost is directly linked to how well its steel resists the daily grind of wave-induced cyclic stress and seawater corrosion. The internal homogeneity and smooth surface finish of our NK Hull Structure Plate significantly reduce initiation points for pitting corrosion and fatigue cracks. This is particularly advantageous in high-stress zones like tank corners, side longitudinals, and deck openings. By choosing GNEE's NK-certified material, shipyards deliver assets that spend more time at sea and less time in dry dock undergoing corrosion-related repairs.



6. Stable Mechanical Properties & Consistency

Advanced rolling and heat treatment technologies ensure uniform mechanical properties across the entire plate, guaranteeing reliability in critical structural applications.



7. Wide Thickness & Customization Capability

Available in a wide range of thicknesses (6mm–200mm+) and dimensions, with customization options such as:

• Pre-cutting & profiling
• Shot blasting & painting
• Beveling & edge preparation



8. Cost-Effective Lifecycle Performance

Although high in quality, NK plates offer excellent lifecycle value by reducing repair frequency, downtime, and long-term operational costs.



Applications of NK Hull Structure Plate



NK Hull Structure Plates are essential materials in a wide range of marine and offshore engineering applications:



Commercial Shipbuilding

Widely used in the construction of:

• Bulk carriers
• Oil tankers
• Container ships
• General cargo vessels



Typical structural parts include:

• Hull structures
• Deck plates
• Side shells
• Bottom structures
• Bulkheads



Offshore Oil & Gas Platforms

NK high-strength plates are ideal for offshore structures that require extreme durability, such as:

• Fixed offshore platforms
• Floating production storage units (FPSO)
• Drilling rigs

They provide excellent resistance to wave impact, corrosion, and fatigue.



Marine Engineering & Port Infrastructure

Used in critical infrastructure projects including:

• Offshore wind power structures
• Harbors and port facilities
• Marine bridges and piers
• Subsea pipelines support structures



Ship Repair & Maintenance Projects

NK-certified plates are widely used in:

• Hull repair and reinforcement
• Structural upgrades
• Replacement of corroded or damaged sections

They ensure compatibility with existing ship materials and maintain classification standards.



Specialized Vessels

Suitable for high-performance and specialized ships such as:

• Icebreakers (requiring low-temperature toughness)
• Naval vessels
• LNG carriers
• Chemical tankers



Heavy Marine Equipment Manufacturing

Used in the production of:

• Shipbuilding machinery
• Marine cranes
• Deck equipment
• Structural components for offshore systems



Get a quote



Whether you are building ocean-going vessels or offshore structures, NK Hull Structure Plates from GNEE deliver the perfect balance of strength, durability, and cost-efficiency-helping you achieve safer, lighter, and longer-lasting marine projects.



Equivalent Grades Comparison



NK Grade	ASTM Equivalent	EN Equivalent	CCS Equivalent	LR Equivalent
NK A	ASTM A131 A	S235JR	CCS A	LR A
NK B	ASTM A131 B	S235JR	CCS B	LR B
NK AH36	ASTM A131 AH36	S355	CCS AH36	LR AH36
NK DH36	ASTM A131 DH36	S355	CCS DH36	LR DH36
NK EH36	ASTM A131 EH36	S355	CCS EH36	LR EH36

GNEE can provide multi-standard certification to meet different project requirements.



FAQ – NK Hull Structure Plate



What does NK certification mean?

NK certification ensures the steel meets strict marine safety and quality standards set by Nippon Kaiji Kyokai.



What is the difference between AH36 and DH36?

The main difference lies in impact test temperature:

• AH36: -20°C
• DH36: -40°C



Can GNEE provide third-party inspection?

Yes, we support third-party inspections such as SGS, BV, and TUV.



What thickness range can you supply?

Typically from 6mm to 200mm, customizable based on project requirements.



Are customized sizes available?

Yes, we offer full customization including cutting, drilling, and surface treatment.



What surface conditions are available?

Hot rolled, normalized, or controlled rolling conditions are available.



Can NK plates be used offshore?

Yes, especially high-strength grades like EH36 are widely used in offshore structures.



Why Choose GNEE for NK Hull Structure Plate?



✅ NK-certified high-quality raw materials

✅ Strong OEM & ODM capabilities

✅ Advanced production and testing equipment

✅ Rich export experience in marine steel

✅ Competitive pricing with reliable delivery

✅ One-stop solution for shipbuilding steel supply



Conclusion



NK Hull Structure Plates are essential materials for modern shipbuilding and offshore engineering, offering high strength, excellent toughness, and reliable performance in extreme marine environments. With full NK certification and global standard compliance, GNEE ensures every plate meets the highest industry requirements.

Get A Quote Now



Looking for a reliable NK Hull Structure Plate supplier?



👉 Contact GNEE today to get:

• Competitive pricing
• Fast delivery
• Customized solutions

Send your inquiry now and let our experts support your marine project with premium NK shipbuilding steel!

















We guarantee the quality and quantity of NK Hull Structure Plate. If you would like more information, please contact us!
