Pressure Vessel Steel Plate Material
Pressure vessel steel plate, means carbon steel and low alloy steel plate used for the manufacture of pressure vessel shells.
It includes carbon steel, carbon-manganese steel, micro-alloy steel, low-alloy high-strength steel, and low-temperature steel. The working temperature is generally from -20℃ to 500℃, and individually up to 560℃. It mainly refers to 16MnR steel (16 manganese-capacity low-alloy steel, a type of steel), which is used for the manufacture of ASME Code pressure vessels.
Pressure vessel plate is widely used in petroleum, chemical, power station, boiler and other industries, for the production of reactors, heat exchangers, separators, ball tanks, oil and gas tanks, liquefied gas tanks, nuclear power reactors, pressure shell, boiler ladle, liquefied petroleum gas cylinders, high-pressure water pipes for hydroelectric power stations, hydraulic turbine worm shells and other equipment and components.
ASTM/ASME standard vessel plate grades
|
Standard |
Grade |
|
ASTM/ASME |
A516/A516M (S)A516Gr55,(S)A516Gr60,(S)A516Gr65,(S) A516Gr70 A515/A515M (S)A515Gr55,(S)A515Gr60,(S)A515Gr65,(S) A515Gr70 A537/A537M (S)A537CL1, (S)A537CL2, (S)A537CL3 A204/A204M A204GrA,A204GrB,A204GrC A387/A387MSA387Gr11CL1,SA387Gr11CL2,SA387Gr12CL1, SA387Gr12CL2,SA387Gr22CL1,SA387Gr22CL2(HIC) A299/A299M SA299GrA,SA299GrB A285/A285M A285GrA,A285GrB,A285GrC A533/A533M SA533GrACL1/CL2/CL3/CL4,SA533GrB A203/A203M SA203GrE,SA203GrD A302/A302M SA302GrC |
EN 10028 standard boiler plate grades
|
Standard |
Grade |
|
EN10028 |
P235GH,P265GH,P295GH,P355GH,16Mo3 P275N,P275NH,P275NL1,P275NL2,P355N,P355NH,P355NL1,P355NL2 P460N,P460NH,P460NL1,P460NL2 P355Q,P355QH,P355QL1,P355QL2,P460Q,P460QH,P460QL1,P460QL2 P500Q,P500QH,P500QL1,P500QL2,P690Q,P690QH,P690QL1,P690QL2 P355M,P355ML1,P355ML2,P420M,P420ML1,P420ML2 P460M,P460ML1,P460ML2 |
JIS standard boiler steel plate grades
|
Standard |
Grade |
|
JIS |
SB410,SB450,SB480,SB450M,SB480M SPV235,SPV315,SPV355,SPV410,SPV450,SPV490 |
GB standard pressure vessel plate material grades
|
Standard |
Grade |
|
GB |
GB713Q245R,Q345R,Q370R,18MnMoNbR,13MnNiMoR, 15CrMoR,14Cr1MoR,12Cr2Mo1R,12Cr1MoVR GB3531 16MnDR,15MnNiDR,09MnNiDR |
pressure vessel plate material specifications
| Thickness (mm) | Mass (kg/m) | Width (mm) | Length (m) | kg/lineal metre of plate width |
| AS1548-PT430T | ||||
| 5 | 39.25 | 2400 | 9 | 94.2 |
| AS1548-PT460T | ||||
| 6 | 47.1 | 3100 | 9.6 | 146.01 |
| AS1548-PT460NR | ||||
| 8 | 62.8 | 3100 | 9.6 | 194.68 |
| 10 | 78.5 | 3100 | 9.6 | 243.35 |
| 12 | 94.2 | 3100 | 9.6 | 292.02 |
| 16 | 125.6 | 3100 | 9.6 | 389.36 |
| 20 | 157 | 3100 | 9.6 | 486.7 |
| 25 | 196.25 | 3100 | 9.6 | 608.38 |
| 32 | 251.2 | 3100 | 9.6 | 778.72 |
| 40 | 314 | 2400 | 9.6 | 753.6 |
| 50 | 392.5 | 2400 | 7.6 | 942 |
| 60 | 471 | 2400 | 6 | 1130.4 |
| 70 | 549.5 | 2400 | 6 | 1318.8 |
| 80 | 628 | 2400 | 5.2 | 1507.2 |
| 90 | 706.5 | 2400 | 5.2 | 1695.6 |
| 100 | 785 | 2400 | 5.2 | 1884 |
| 5 | 39.25 | 2400 | 9 | 94.2 |
Where are boilers and pressure vessels used?
Diving cylinders;
Domestic hot water storage tanks;
Compressed air storage tanks;
Passenger cabin of an aircraft;
Recompression chamber;
Gas nuclear reactor;
Industrial boiler;
Road tanker;
Petrochemical storage and transport tanks.

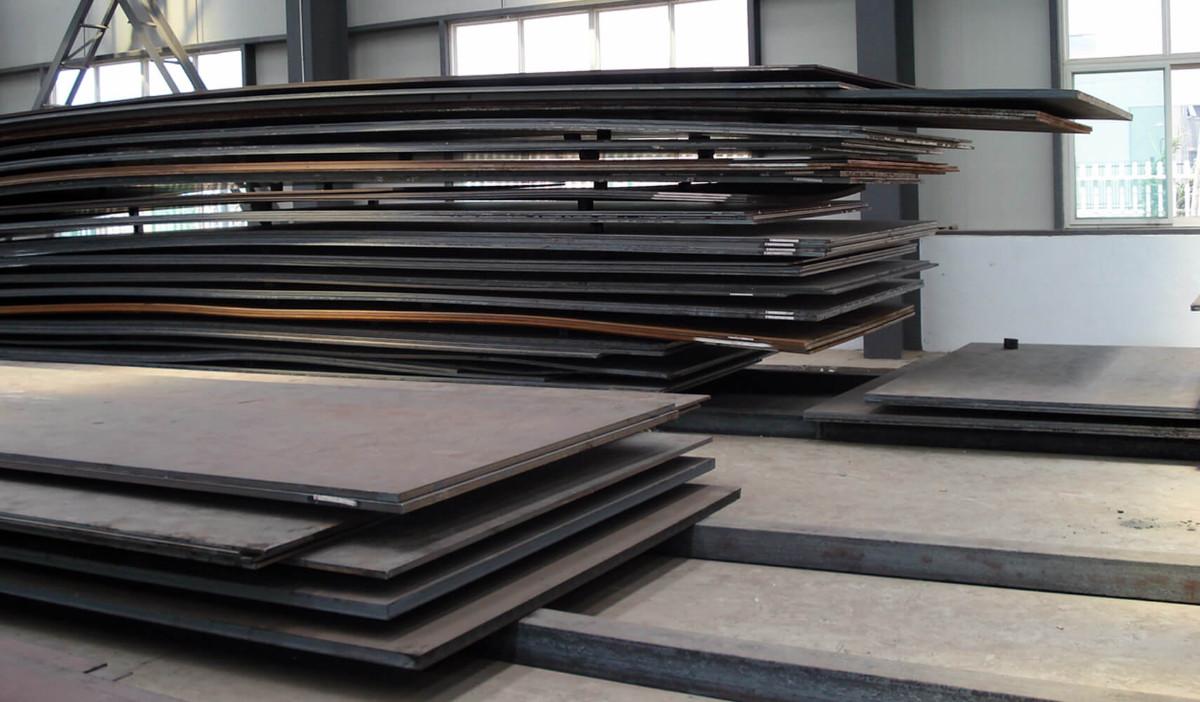

pressure vessel quality steel plate Products image
GNEE group team photo
GNEE group customer visit
We have professional online service personnel. If you have any questions about Pressure Vessel Steel Plate Material, please send us an inquiry and we will reply to you within one working day.
