High Yield High Strength Steel Plate Q500E
The yield strength of Q500E high-strength low-alloy steel plate is above 500Mpa, and the impact test temperature should be carried out at a low temperature of minus 40 degrees Celsius.
If you are satisfied with our Q500E high strength steel sheet, welcome to place an order with us. As one of the best high tensile alloy steel manufacturers and suppliers in China, we have a large number of hot-selling products for you to choose from. For detailed chemical composition and free samples, please contact our factory immediately. We provide competitive prices and good services.
Q500E high tensile steel plate chemical composition
| Steel Grade | C% max | Si% max | Mn% max | P% max | S% max | Cu% max | Cr% max | Ni% max | Mo % max | B % max | V % max | Nb% max | Ti % max |
| Q500E | 0.2 | 0.80 | 1.7 | 0.025 | 0.015 | 0.5 | 1.5 | 2 | 0.70 | 0.005 | 0.12 | 0.06 | 0.05 |
Q500E high strength plate Mechanical property
| Steel Grade | Re yield strength Mpa min | Re yield strength Mpa min | elongation % | Energy and temperature | |||||||
| Min | 0 | -20 | -40 | -60 | |||||||
| t≤50 | 50-100 | 100-150 | t≤50 | 50-100 | 100-150 | J | J | J | J | ||
| Q500E | 500 | 480 | 440 | 590-770 | 590-770 | 540-720 | 17 | 47 | 47 | 34 | 34 |
Q500E high strength sheet metal dimensions chart
| length x Width | Thickness | Mass per Sq m | Length x Width | Thickness | Mass per Sq m | |
|---|---|---|---|---|---|---|
| milimeter | milimeter | Kg/m2 | milimeter | milimeter | Kg/m2 | |
| 2000 x 1000 | 3 | 23.055 | 2000 x 1000 | 30.000 | 235.050 | |
| 2500 x 1250 | 3 | 23.055 | 2500 x 1250 | 30.000 | 235.050 | |
| 3000 x 1500 | 3 | 23.055 | 3000 x 1500 | 30.000 | 235.050 | |
| 3660 x 1830 | 3 | 23.055 | 4000 x 2000 | 30.000 | 235.050 | |
| 4000 x 2000 | 3 | 23.055 | 5000 x 1250 | 30.000 | 235.050 | |
| 2000 x 1000 | 4 | 31.040 | 5000 x 2500 | 30.000 | 235.050 | |
| 2500 x 1250 | 4 | 31.040 | 6000 x 2500 | 30.000 | 235.050 | |
| 3000 x 1500 | 4 | 31.040 | 10000 x 2500 | 30.000 | 235.050 | |
| 3660 x 1830 | 4 | 31.040 | 2000 x 1000 | 32.000 | 251.020 |

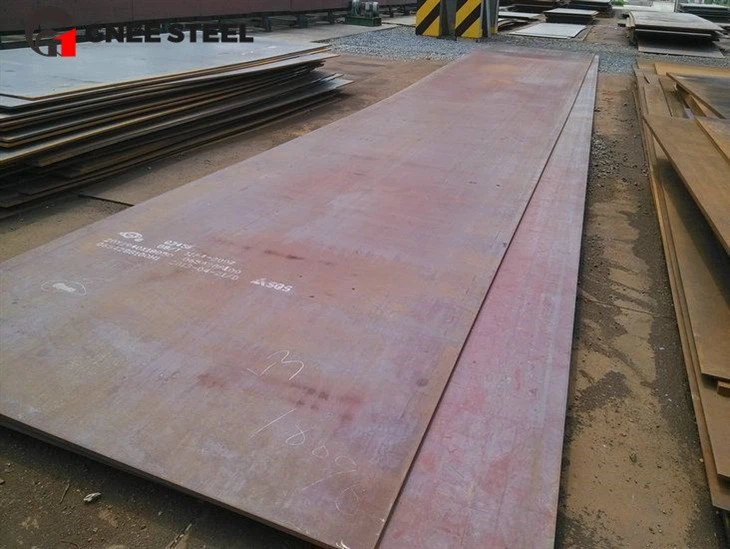

high strength structural steel Products image
GNEE group team photo
GNEE group customer visit
GNEE Group steel exhibition
We have excellent after-sales service. If you have any questions about High Yield High Strength Steel Plate Q500E, you can contact us and we will reply you within two hours.
