The full name of JFE500 wear plate is Japan JFE-EVERHARD-C500 wear-resistant steel plate, and the commonly used abbreviated name is JFE-EH-C500, JFE-EH500 or JFE-C500, etc. So, is JFE EH500 wear plate a high hardness wear resistant steel plate?
Firstly, the surface Brinell hardness of JFE EH500 wear plate reaches 500±40, which is a wear-resistant plate belonging to the category of high hardness wear-resistant steel plate.
Secondly, JFE EH500 wear plate is Japan's JFE steel using advanced technology, the toughness of -40 ℃ (-40 ℉ ) low temperature to ensure that the surface Brinell hardness of 500 high-level wear-resistant steel. It is particularly suitable for use in cold regions, to withstand strong impacts, etc., and requires high toughness to ensure the internal hardness.
At the same time, JFE EH500 Wear Plate series have high resistance to weld cracks.
JFE EH500 wear resistant steel chemical composition
|
JFE-EH500 Chemical Composition (%) |
|||||||||||
|
Plate |
Heat treatment |
C |
Si |
Mn |
P |
S |
Cr |
Ti |
Mo |
B |
Ceq** |
|
Thickness mm |
Controlled heat treatment |
max % |
max % |
max % |
max % |
max % |
max % |
max % |
max % |
max % |
typv |
|
5 – 19 |
0.29 |
0.55 |
1.60 |
0.020 |
0.01 |
0.80 |
0.020 |
0.35 |
0.004 |
0.55 |
|
|
19.1 – 32 |
0.29 |
0.55 |
1.60 |
0.020 |
0.01 |
0.80 |
0.020 |
0.35 |
0.004 |
0.58 |
|
|
32.1 – 50.8 |
0.29 |
0.55 |
1.60 |
0.020 |
0.01 |
1.20 |
0.020 |
0.50 |
0.004 |
0.70 |
|
JFE EH500 abrasion resistant steel mechanical property
|
Mechanical properties of EVERHARD-C500LE |
||||||
|
Brand name |
Mechanical Property |
Charpy Impact Test |
Hardness test |
|||
|
EVERHARD-C500LE |
Yield strength |
Tensile strengt |
Elongation % |
Testing direction |
Absorbed energy vE Average J |
Brinell hardness (29.42kN) Average of 5 points |
|
N/mm2 |
N/mm2 |
Min % |
L |
−40°C 42 |
502 |
|
|
1203 |
1681 |
17.0 |
||||
JFE EH500 steel plates are suitable for many general purposes and industries such as mining, civil engineering, agricultural equipment, and material construction.
JFE EH500 steel plates can be used for building bridges, pylons and other building structures, machine building, lifting and moving equipment, crane booms, truck frames, containers, rail vehicles, frame structures, wear plates, vehicles and transport equipment, anti-drilling plates (e.g. sandblasting equipment), tumblers, security doors, agricultural machinery, etc.

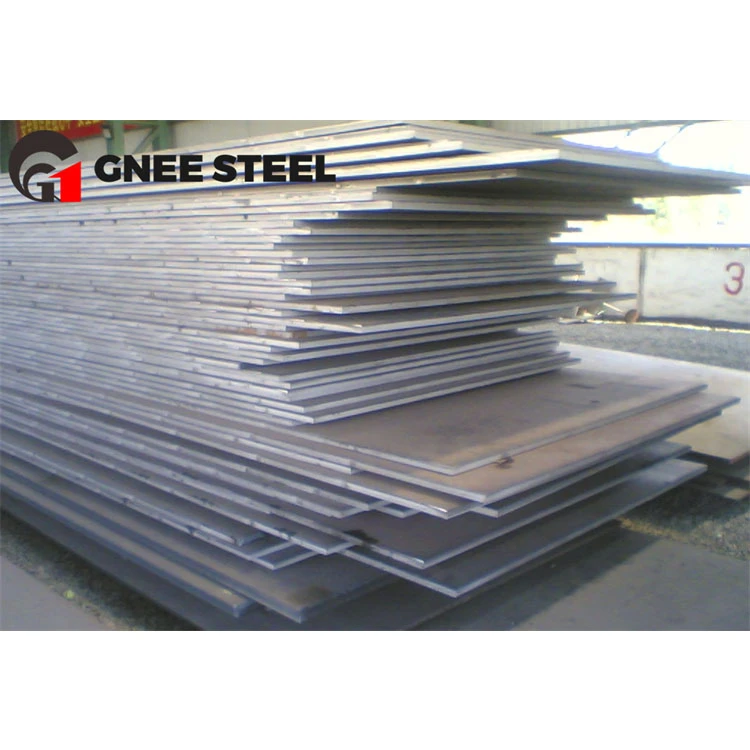

JFE-EH500 abrasion resistant plate image
GNEE Group team photo
GNEE Group customers visit
We have professional staff to provide detailed reply to your orders. If you have any questions about wear resistant steel plate, please contact me.
