AR500 AR Steel Plate
AR500 armored steel plate is a hardened steel commonly used in targets, armour applications, truck ploughs and mining. This steel is tempered to provide wear resistance, making it ideal for high wear applications.AR500 Wear Plate has a high Brinell Hardness (BHN), and its functionality and safety make it ideal for targets. By providing impact resistance, bullets are more likely to hit the plane of the target and follow the usual ricochet pattern. If a softer steel is used and deformed, there is a greater likelihood of abnormal bouncing, which can cause injury.
AR500 aR plate steel mechanical property
| Weldability | Carbon equivalent of 0.79 Maximum, 0.69 Typical | ||||
| Mechanical Properties (ASTM A370) | Hardness | 477-534 BHN | (ASTM E10) | ||
| Yield Strength (Typical) | 215 Ksi | 1480 MPa | |||
| Tensile Strength (Typical) | 240 Ksi | 1655 MPa | |||
| Elongation (Typical) | 8% (50.8mm gage) | ||||
| Charpy V-Notch Impact (ASTM A673, A370) Standard size, -40F test temp, hardness |
Specimen Orientation | Impact Resistance (ft/lbs) | |||
| Standard Width | 1/2 Width | ||||
| Transverse (T-L) | 12.0 | 6.0 | |||
| Longitudinal (L-T) | 14.0 | 7.0 | |||
| Bend Test | Plate Thinckness | Inside Radius | |||
| 0.118-0.3125 in. (3-8mm) | 4.5T | ||||
| 0.3126-0.500 in. (8.1-12.7mm) | 6.5T | ||||
| 0.50-0.750 in. (12.8-19mm) | 8T | ||||
| 0.751-1.000 in. (19.1-25.4mm) | 10T | ||||
| Flatness | Standards are 50% of that specified in ASTM A-6. Special tolerances are available. | ||||
| Thickness | The standards are 50% of that specified in ASTM A-6. Special tolerances are available. | ||||
Benefits of AR500 wear resistant steel plate
The hardness and toughness of AR500 wear plate steel makes it extremely resistant to wear and impact. These properties make AR500 wear resistant plate a durable material, which is essential for applications that require a material that can withstand extreme wear and tear.
The durability of AR500 also means that the material needs to be replaced less often than less wear resistant materials, reducing material costs and avoiding devastating equipment failure.

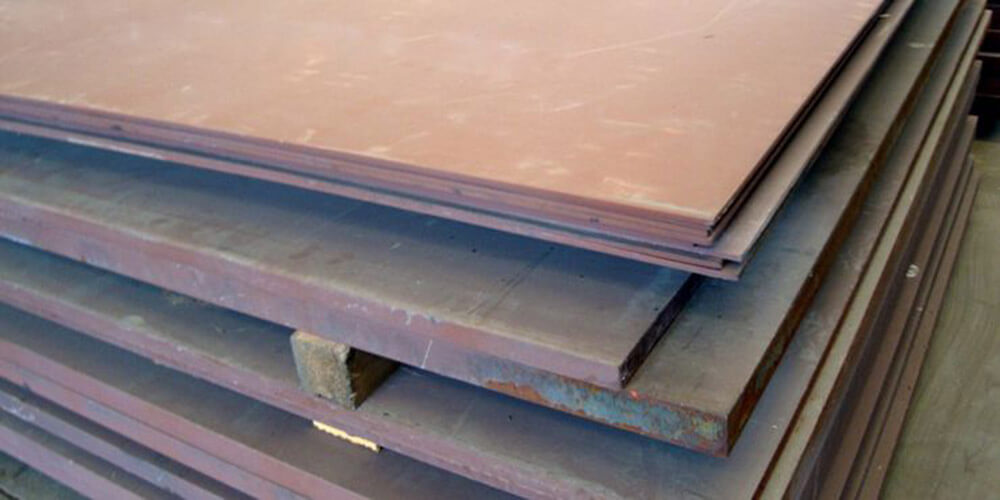

AR500 abrasion resistant steel plate product image
GNEE group team photo
GNEE group customer visit
Our products have undergone strict quality testing and come with professional certificates. If you have any questions about AR500 AR Steel Plate, please feel free to inspect.
