SPV235 Steel Plate For Pressure Vessel
The yield point of SPV235 container steel plate should be above 235Mpa, the minimum yield strength of pressure vessel steel plate with a thickness greater than 50 mm should be 215Mpa, and the tensile strength should be between 400-510Mpa.
GNEE steel is a professional exporter and steel distributor of SPV235 boiler plate in China. We have more than 50,000 tons of SPV235 vessel plate in stock every month. We provide rust removal, cutting, punching, bending, welding and other services. For SPV235 pressure vessel steel plate prices, please feel free to contact us by email or phone.
SPV235 Boiler plates chemical composition
| Grades | C max | Si max | Mn. max | P max | S max | N max | AL min | Cr max | Cu max | Mo max | Ni max | Nb max | Ti max | V max |
| SPV235 | 0.16 | 0.35 | 0.60-1.20 | 0.025 | 0.015 | 0.012 | 0.02 | 0.3 | 0.03 | 0.08 | 0.3 | 0.02 | 0.03 | 0.02 |
SPV235 boiler quality steel mechanical property
| Grade | TSt E 255ckness (mm) | Yield Strength MPa(min) | Tensile Strength MPa | Elongation % (min) | Impact Energy (KV J) (min) | ||
| -20℃ | 0℃ | 20℃ | |||||
| SPV235 | ≤ 16 | 235 | 360 to 480 | 24 | 27 | 34 | 40 |
| 16＜t ≤40 | 225 | 360 to 480 | 24 | 27 | 34 | 40 | |
| 40＜t ≤60 | 215 | 360 to 480 | 24 | 27 | 34 | 40 | |
| 6＜t ≤100 | 200 | 360 to 480 | 24 | 27 | 34 | 40 | |
| 100＜t ≤150 | 185 | 350 to 480 | 24 | 27 | 34 | 40 | |
| 150＜t ≤250 | 170 | 350 to 480 | 24 | 27 | 34 | 40 | |
SPV235 Boiler grade plates weight sizes
| Gauge (Inches) | Width (Inches) | Length (Inches) |
|---|---|---|
| 0.1875 | 96 | 240/480 |
| 0.2500 | 60/96/120 | 240/480 |
| 0.3125 | 60/96/120 | 240/480 |
| 0.3750 | 60/96/120 | 240/480 |
| 0.5000 | 60/96/120 | 240/480 |
| 0.6250 | 60/96/120 | 240/480 |
| 0.7500 | 60/96/120 | 240/480 |
| 0.8750 | 60/96/120 | 240/480 |
| 1.0000 | 60/96/120 | 240/480 |
| 1.1250 | 60/96/120 | 240/480 |
| 1.2500 | 60/96/120 | 240/480 |
| 1.5000 | 60/96/120 | 240/480 |
| 1.7500 | 60/96/120 | 240/480 |
| 2.0000 | 60/96/120 | 240/480 |
| 2.2500 | 96 | 240/480 |
| 2.5000 | 96 | 240/480 |
| 2.7500 | 96 | 240/480 |
| 3.0000 | 96 | 240/480 |
| 3.2500 | 96 | 240 |
| 3.5000 | 96 | 240 |
| 3.7500 | 96 | 240 |
| 4.0000 | 96 | 240 |

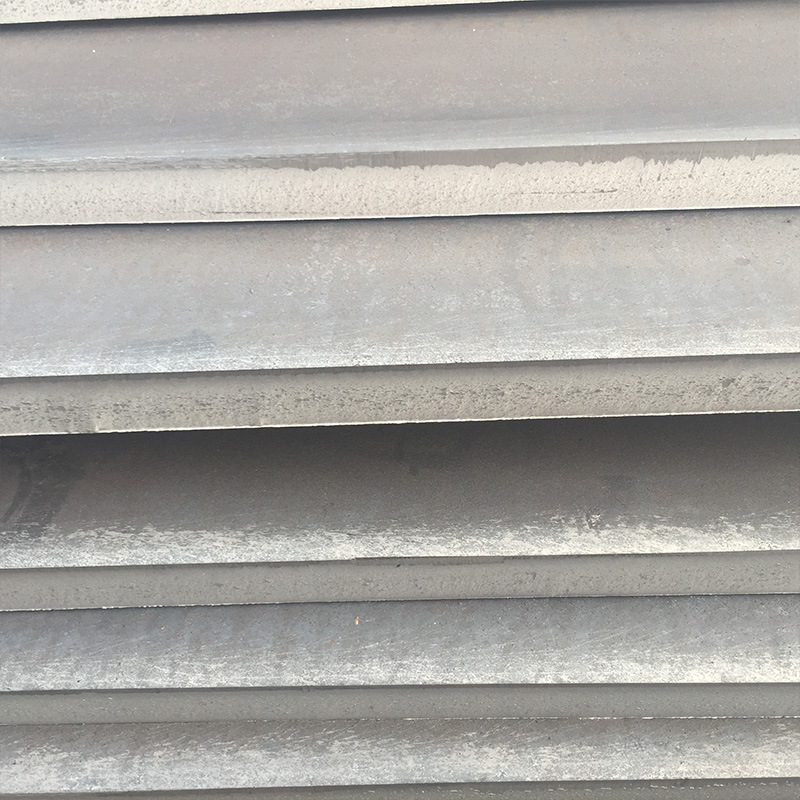

Boiler Quality Steel Plates Products image
GNEE group team photo
GNEE group customer visit
GNEE Group steel exhibition
We have professional online service staff. If you have any questions about SPV235 Steel Plate For Pressure Vessel, please send us an inquiry and we will reply you within one working day.
