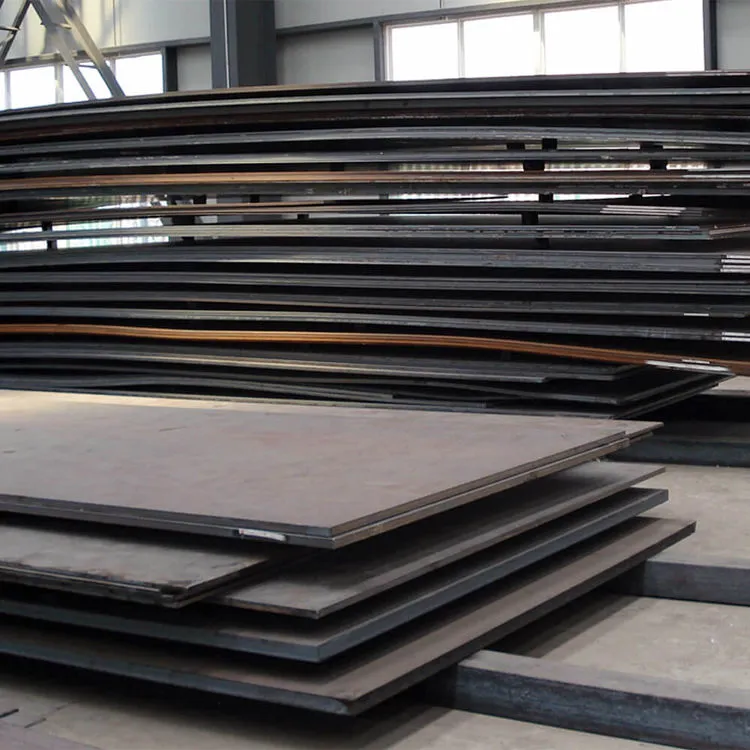

Q245R Pressure Vessel Plate
Products Description
The Q245R plates are also corrosion-resistant and heat-resistant, making them appropriate for highly pressurized gases and steam. This alloy is made of low-carbon steel, which makes them robust. They can work for extended periods because of the layer provided across their body to protect them from harsh working conditions. They are an essential component of the industry because of all their qualities. Modern machines and equipment are also used to produce and process plates to improve their quality. We put our Q245R Grade plates through various tests to ensure they have higher qualities and attributes.
Q245R steel chemical composition
|
C |
Si |
Mn |
P |
S |
Al |
|
0.20 max. |
0.35 max. |
0.50-1.00 |
0.025 max. |
0.015 max. |
0.020 min. |
Mechanical Properties of Q245R Plates
|
Thickness (mm) |
|||||
|
Q245R |
> 3 ≤ 16 |
> 16 ≤ 36 |
> 36 ≤ 60 |
>60 ≤ 100 |
>100 |
|
Yield strength (≥Mpa) |
245 |
235 |
225 |
205 |
185 |
|
Tensile strength (Mpa) |
400-520 |
390-510 |
380-500 |
||
Q245R Grade Worldwide Equivalents
|
GB |
JIS |
ASTM |
ISO |
EN |
GOST |
|
Q245R |
SEV245 |
Gr.65(450) |
P265GH |
P265GH |
16ГС |
Industrial Machinery
One of the primary applications of GB Q245R steel plate is in the fabrication of industrial machinery. Its high tensile strength and wear resistance make it ideal for components subjected to heavy loads and abrasive conditions. Common applications include:
Presses: GB Q245R steel plate is used in the construction of hydraulic presses, forging presses, and other types of industrial presses.
Machining equipment: Components such as machine frames, bedplates, and spindles are often made from GB Q245R steel plate.
Mining equipment: GB Q245R is used in the construction of mining machinery, such as excavators, loaders, and crushers.
Construction and Infrastructure
GB Q245R steel plate is also widely used in the construction and infrastructure sectors. Its excellent mechanical properties make it suitable for a variety of applications, including:
Bridges: The high strength and durability of GB Q245R make it an ideal choice for bridge construction.
Buildings: GB Q245R can be used for structural components in high-rise buildings, commercial structures, and residential buildings.
Infrastructure: The material is used in various infrastructure projects, such as pipelines, transmission towers, and railway tracks.
Packing and shipping
Packaged with water proof paper, inner protective steel ring, protective wood block, metal band strapping.
1) 20ft container: 28tons (Can load 5.8M Max)
2) 40ft container: 28tons (Can load 11.8M Max)
3) more than 100tons:can pack by bulk vessel
4) as your requirement.
GB Q245R steel plate is a versatile material with a wide range of applications. Its exceptional mechanical properties, combined with its good weldability and formability, make it a popular choice for various industries. As technology continues to advance, new applications for GB Q245R steel plate are likely to emerge. Contact us for more!
