P500QL2 Boiler plate
P500QL2 boiler plate is mainly used for manufacturing high-pressure vessels and boilers and other equipment, and has a wide range of applications in nuclear power plants, chemical, oil and gas industries.
P500QL2 vessel plate has good weldability and corrosion resistance, which can meet your requirements for use in high temperature and high pressure environments.
Boiler Quality Steel Plate Chemical Composition
| Grade | The Element Max (%) | ||||||
| C | Si | Mn | P | S | N | B | |
| P500QL2 | 0.18 | 0.60 | 1.70 | 0.020 | 0.010 | 0.015 | 0.005 |
| Mo | Cu | Nb | Ni | Ti | V | Cr | |
| 0.70 | 0.3 | 0.05 | 1.50 | 0.05 | 0.08 | 1.00 | |
Pressure Vessel Grade Steel Plate mechanical property
| Grade | Thickness | Yield | Tensile | Elongation |
| P500QL2 | mm | Min Mpa | Mpa | Min % |
| 6-50 | 500 | 590-770 | 17% | |
| 50-100 | 480 | 590-770 | 17% | |
| 100-150 | 440 | 540-720 | 17% |

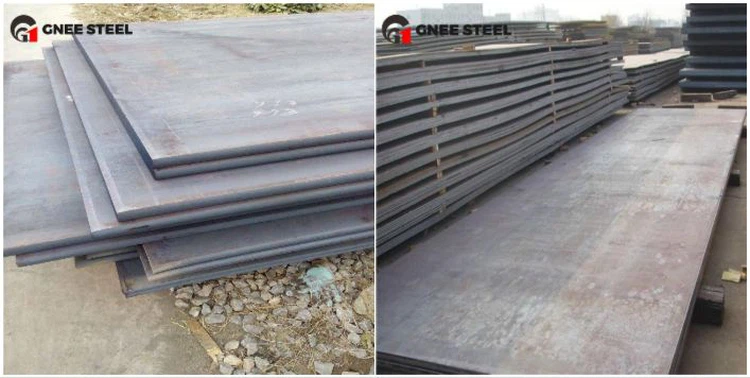

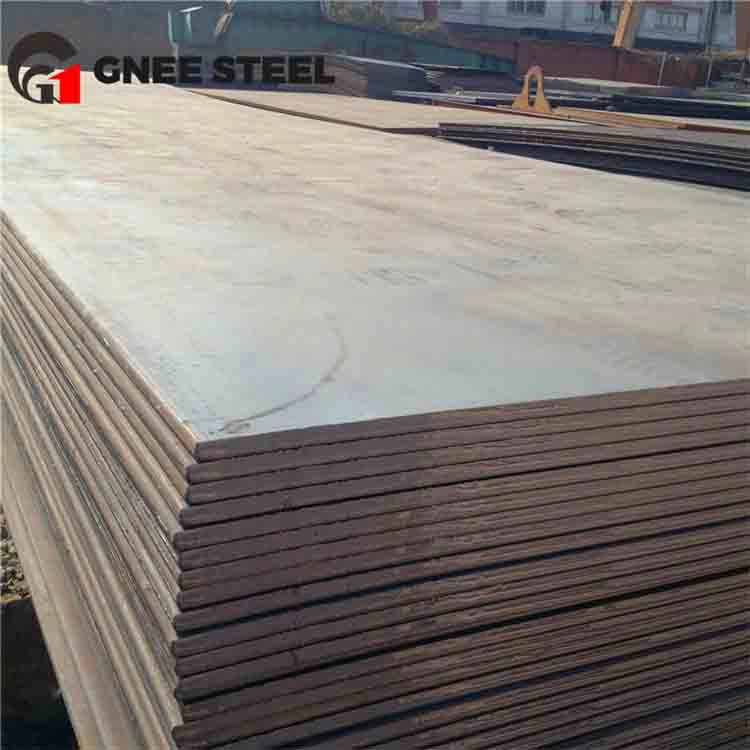

vessel plate Products image
GNEE group team photo
GNEE group customer visit
GNEE Group steel exhibition
We have excellent after-sales service. If you have any questions about P500QL2 Boiler plate, you can contact us and we will reply you within two hours.
