S960QL HSLA Steel Plate
S960QL steel plate is a kind of high-strength steel plate, which is suitable for manufacturing all kinds of engineering machinery and structural parts, such as drilling rigs, electric shovels, electric wheel dump trucks, mining cars, excavators, loaders, bulldozers, all kinds of cranes, and hydraulic supports for coal mines in mining and construction.
The delivery status of S960QL high strength low alloy steell plate is quenched + tempered, and the implementation standard is EN 10025-6.
S960QL high strength low alloy hSLA steel plate chemical composition
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Cu | Zr | B | CEV |
| max 0.2 | max 0.8 | max 1.7 | max 2 | max 0.02 | max 0.01 | max 1.5 | max 0.7 | max 0.12 | max 0.015 | max 0.06 | max 0.05 | max 0.5 | max 0.15 | max 0.005 | max 0.82 |
S960QL high strength steel plate mechanical property
| Nominal thickness (mm): | 3 - 50 |
| Rm - Tensile strength (MPa) | 980-1150 |
| Nominal thickness (mm): | 3 - 50 |
| ReH - Minimum yield strength (MPa) | 960 |
| KV - Impact energy (J) longitud., | 0° 50 |
-20° 40 |
-40° 30 |
| A - Min. elongation Lo = 5,65 √ So (%) | 10 |
Q960QL high strength low alloy steel plate product details
As for the mechanical properties of S960QL high strength low alloy structural steel plate, the yield strength is between 690-650 MPa, the tensile strength is 770-940 MPa, the elongation is not less than 14% δ5%, and the longitudinal V-impact work is not less than 30J at -40℃.
S960QL production specifications: steel plate thickness 8 ~ 150mm, width 1500 ~ 4000mm, length 3000 ~ 16000mm.
Good welding performance: welding test results show that the weld and fusion line -40 ℃ V-impact greater than 60J.
S960QL high strength alloy steel plate also has many other advantages. Its wear resistance and corrosion resistance is quite good, and it can work for a long time in the harsh working environment. In addition, due to its low carbon content, the welding performance of this steel plate is also very good, and it can be processed by a variety of welding methods.

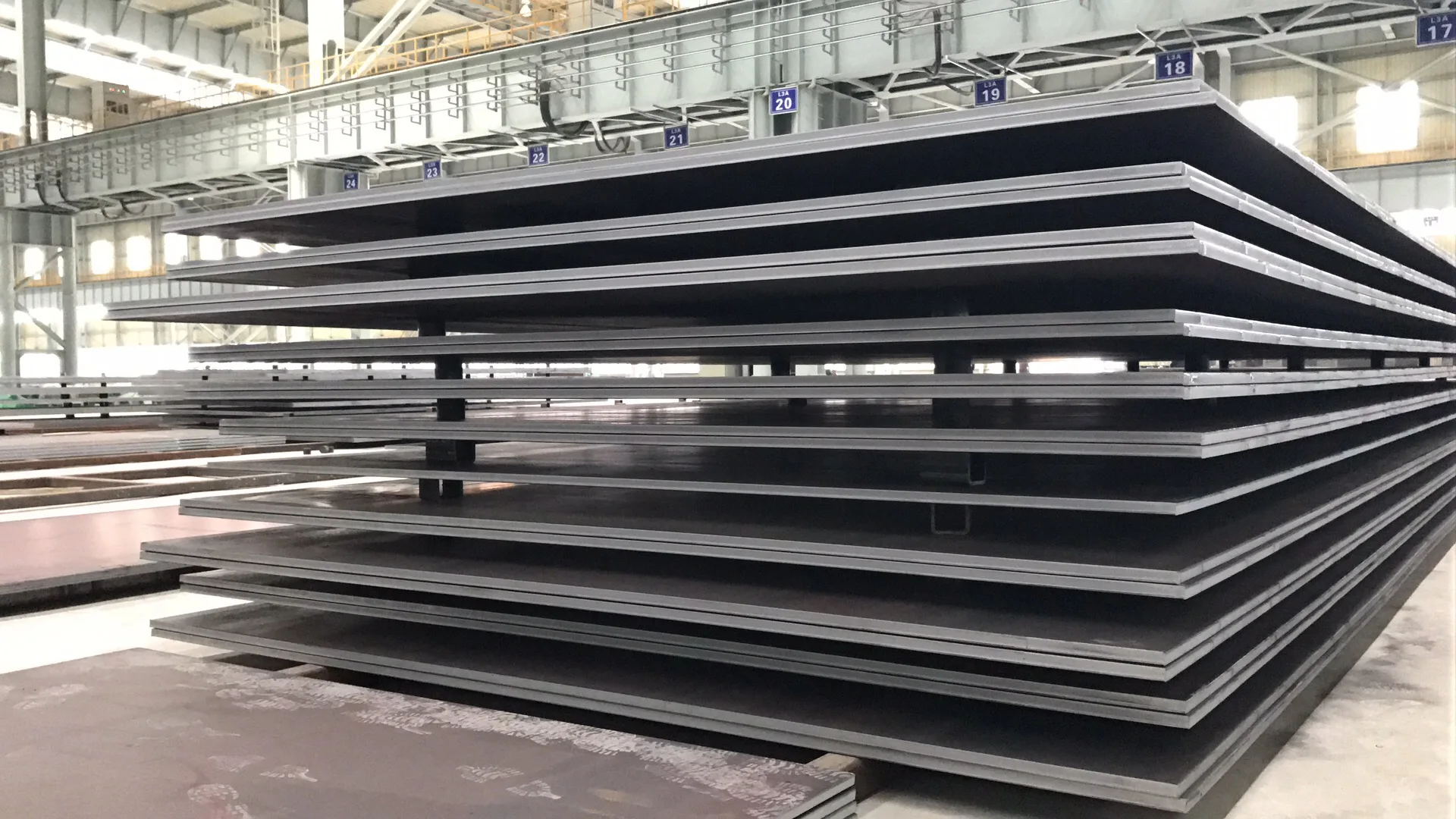

Q960QL high strength low alloy steel sheet product image
GNEE group team photo
GNEE group customer visit
We guarantee the quality and quantity of S960QL HSLA Steel Plate. If you would like more information, please contact us!
