S460N S460NL High Strength Low Alloy Steel Sheet
S460N is a European standard low alloy high strength steel plate, the implementation of EN10025 standard.S460N steel plate production thickness between 8mm-400mm, with high strength and toughness.S460N steel plate grade indicates: "S": indicates the European standard high steel plate; "460 ": indicates that the yield strength of the steel plate is not less than 460MPa; "N": indicates that the steel plate delivery status.
S460NL steel plate is a normalised / normalised rolling conditions hot rolled weldable fine grain steel, grade S460 steel plate thickness of not more than 200mm. the name of the steel consists of the following parts: the symbol letter S: structural steel, 460 for the thickness of the relevant less than 16mm of the yield strength value: the minimum yield value, the delivery status: N, the provisions of the impact of the temperature at a temperature of not less than -50 degrees to the upper case letter L marked.
s460N low alloy steel material chemical composition
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | CEV |
| max 0.2 | max 0.6 | 1 – 1.7 | max 0.8 | max 0.03 | max 0.025 | max 0.3 | max 0.1 | max 0.2 | max 0.025 | max 0.05 | max 0.05 | max 0.02 | max 0.55 | max 0.55 |
s460N high strength low alloy steel mechanical property
| Grade | Thickness | Yield Strength | Tensile Strength | Elongation | Charpy V Notch Impact Test | |
| Degree | Min Value | |||||
| S460N | mm | Min Mpa | Mpa | Min % | -50℃ | J |
| 5≤t≤16 | 420 | 520-680 | 18% | 27 | ||
| 63＜t≤100 | 360 | 500-650 | 27 | |||
| 100＜t≤250 | 320 | 500-650 | 27 | |||
|
Note: Impact energy for impact test is on longitudinal |
||||||
S460NL high strength low alloy chemical composition
|
C |
Si |
Mn |
P |
S |
Altotal * |
N |
Cr |
|
0.20 |
0.60 |
1.00-1.70 |
0.025 |
0.020 |
0.020 min |
0.025 |
0.30 |
|
Cu ** |
Mo |
Nb |
Ni |
Ti |
V |
Nb+Ti+V |
Mo+Cr |
|
0.55 |
0.10 |
0.05 |
0.80 |
0.05 |
0.20 |
0.22 |
0.30 |
S460NL high tensile steel mechanical property
|
Product Thickness |
Yield Strength MPa |
Tensile Strength MPa |
Elongation |
|
up to 16 mm |
460 min |
540 to 720 |
17 min |
|
16 to 40 mm |
440 min |
540 to 720 |
17 min |
|
over 40 to 63 mm |
430 min |
540 to 720 |
17 min |
|
over 63 to 80 mm |
410 min |
540 to 720 |
17 min |
|
over 80 to 100 mm |
400 min |
540 to 720 |
17 min |
|
over 100 to 150 mm |
380 min |
530 to 710 |
17 min |
|
over 150 to 200 mm |
370 min |
530 to 710 |
17 min |

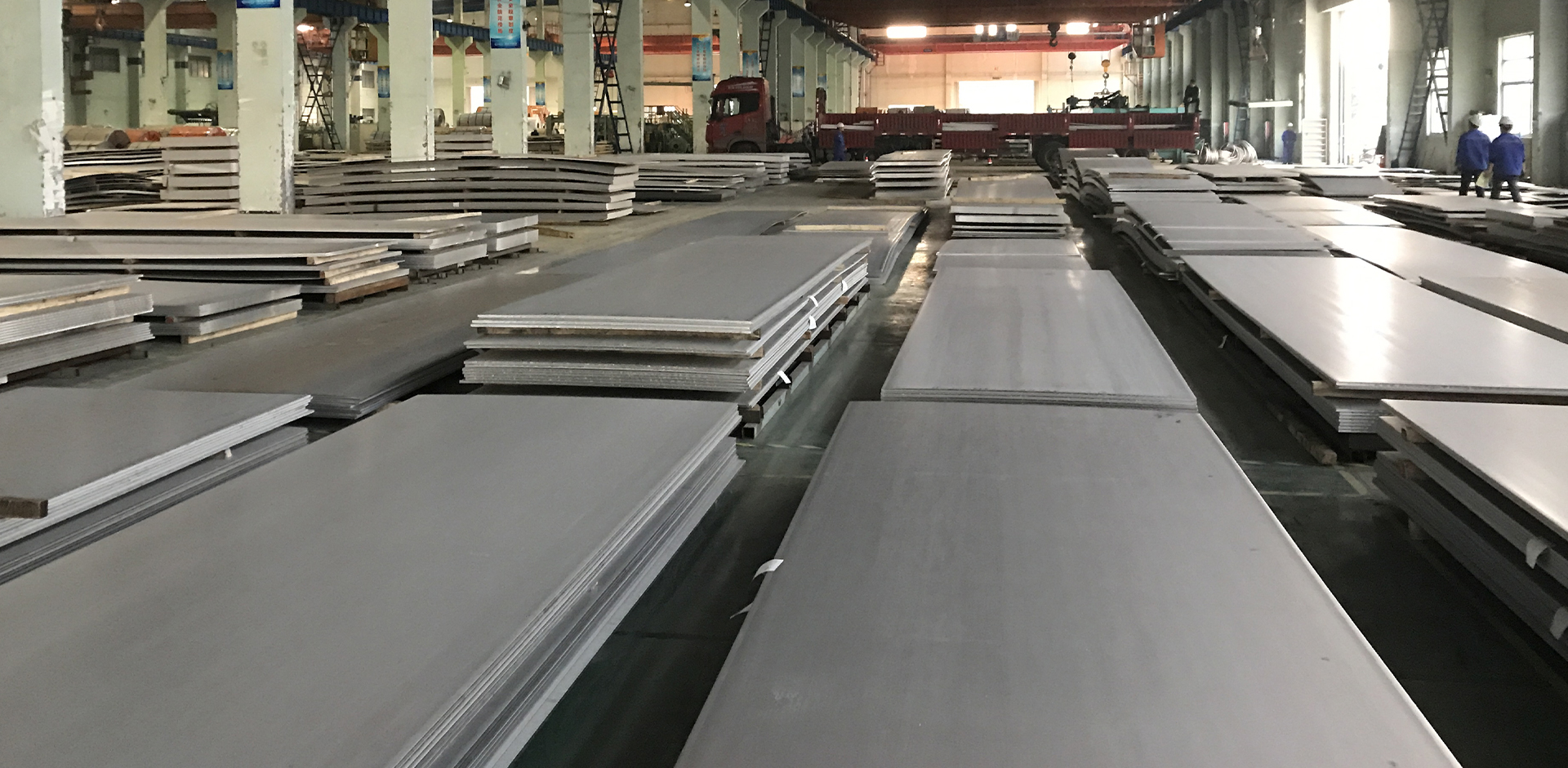

high strength low alloy structural steel Products image
