A633 High Strength Steel Plate
A633 is an American Standard low alloy plate that is a normalized high strength structural steel, ideal for welding, riveting or bolting.
There are four grades: A, C, D, and E.
Typical applications is in the areas of construction equipment, offshore support structures, and other construction areas where additional strength is critical.
gnee Steel stocks and supplies the ASTM A633 structural steel plate, which offers stronger notch toughness.
ASTM A633 structural steel plate Overview:
Normalized high-strength structural steel grade ideal for welding, riveting or bolting.
Available in four grades: A, C, D and E.
Exhibits greater notch toughness in low ambient temperatures than compared to as-rolled materials of similar strength.
Charpy test requirements for specific zones and climates may be requested.
May be multiple-certified as API or ABS specifications on Mill Test Report, but guaranteed to be certified to meet ASTM A633 standards.
ASTM A633Grade A
| C max | Si | Mn | P | S | Mo | Ni |
| ≤0.18 | 0.15-0.50 | 1.00-1.35 | ≤0.035 | ≤0.04 | - | - |
| Yield Strength Mpa | Tensile Strength Mpa | Elongation % | ||||
| ≧290 | 430-570 | ≧20 | ||||
ASTM A633Grade C
| C max | Si | Mn | P | S | Mo | Ni |
| ≤0.20 | 0.15-0.50 | 1.15-1.50 | ≤0.035 | ≤0.04 | - | - |
| Yield Strength Mpa | Tensile Strength Mpa | Elongation % | ||||
| ≧315 | 450-620 | ≧23 | ||||
ASTM A633Grade D
| C max | Si | Mn | P | S | Cu | Ni | Cr | Mo |
| ≤0.20 | 0.15-0.50 | 0.70-1.60 | ≤0.035 | ≤0.04 | ≤0.35 | ≤0.25 | ≤0.25 | ≤0.08 |
| Yield Strength Mpa | Tensile Strength Mpa | Elongation % | ||||||
| ≧315 | 450-620 | ≧23 | ||||||
ASTM A633Grade B
| C max | Si | Mn | P | S | N | Ni | Cr | Mo |
| ≤0.22 | 0.15-0.50 | 1.15-1.50 | ≤0.035 | ≤0.04 | ≤0.3 | - | - | - |
| Yield Strength Mpa | Tensile Strength Mpa | Elongation % | ||||||
| ≧380 | 515-690 | ≧23 | ||||||
A633 High Tensile Steel Sheet Chemical Composition
|
Element |
Grade A, % |
Grade C, % |
Grade D, % |
Grade E, %A |
|
Carbon, max |
0.18 |
0.20 |
0.20 |
0.22 |
|
1½ in. [40 mm] and under in thickness |
1.00-1.35 |
1.15-1.50B |
0.70-1.35 |
1.15-1.50 |
|
Over 1½ in. to 4 in. [40 to 100 mm], incl |
1.00-1.35 |
1.15-1.50B |
1.00-1.60 |
1.15-1.50 |
|
Over 4 in. to 6 in. [100 to 150 mm], incl |
C |
C |
C |
C |
|
Phosphorus, max |
0.030 |
0.030 |
0.030 |
0.030 |
|
Sulfur, max |
0.030 |
0.030 |
0.030 |
0.030 |
|
Silicon |
0.15-0.50 |
0.15-0.50 |
0.15-0.50 |
0.15-0.50 |
|
Vanadium |
– |
– |
– |
0.04-0.11 |
|
Columbium |
0.05 max |
0.01-0.05 |
– |
D |
|
Nitrogen, max |
– |
– |
– |
0.03 |
|
Copper, max |
– |
– |
0.35 |
– |
|
Nickel, max |
– |
– |
0.25 |
– |
|
Chromium, max |
– |
– |
0.25 |
– |
|
Molybdenum, max |
– |
– |
0.08 |
– |
A633 High Tensile Alloy Steel Mechanical Property
|
Grade A |
Grades C and D |
Grade E |
|
|
Yield point, min, ksi [MPa]: |
|||
|
2.5 in. [65 mm] and under |
42 [290] |
50 [345] |
60 [415] |
|
Over 2.5 in. to 4 in. [65 to 100 mm], incl |
42 [290] |
46 [315] |
60 [415] |
|
Over 4 in. to 6 in. [100 to 150 mm], incl |
B |
B |
55 [380] |
|
Tensile strength, ksi [MPa]: |
|||
|
2.5 in. [65 mm] and under |
63 to 83 [430 to 570] |
70 to 90 [485 to 620] |
80 to 100 [550 to 690] |
|
Over 2.5 in. to 4 in. [65 to 100 mm], incl |
63 to 83 [430 to 570] |
65 to 85 [450 to 590] |
80 to 100 [550 to 690] |
|
Over 4 in. to 6 in. [100 to 150 mm], incl |
B |
B |
75 to 95 [515 to 655] |
|
Elongation in 8 in. [200 mm], min, %C |
18 |
18 |
18 |
|
Elongation in 2 in. [50 mm], min, %C |
23 |
23 |
23 |
A633 Carbon Steel Grade Equivalents
A633 steel plate is commonly used in the manufacture of plants, - general construction and all kinds of engineering machinery, such as mining and all kinds of engineering construction with drilling rigs, electric shovels, electric wheel dump trucks, mining cars, excavators, loaders, bulldozers, all kinds of cranes, coal mine hydraulic support and other machinery and equipment and other structural parts.
A633 Carbon Steel Grade Equivalents
If you are not able to find the grade of steel you are looking for, please email us at alloy@gneesteelgroup.com. We would love to help you find what you are looking for.
| American ASTM / ASME / SAE |
Europe EN | Germany DIN | Italy UNI | France NF | Japan JIS |
|---|---|---|---|---|---|
| A36 | S235J2 | ||||
| A204 Gr. B | 16Mo3 | 15Mo3 | 16Mo3 | 15D3 | |
| A283 A, B, C, D | S185 | ST33 | FE320 | A33 | SS330 |
| S235JR | ST37-2 | E24-2 | |||
| S235JRG1 | UST37-2 | ||||
| A284 Gr. C, D | S235J | ST37-3N | FE360D | E24-4 | SM400C |
| S235JR | RST37-2 | FE360B | |||
| S235JO | ST37-3U | FE360C | |||
| S235J2+N | ST37-3N | FE360D | |||
| A514 | S690Q | STE690V | E690TR | ||
| A529 Gr. 42, 50 | S275JR | ST44-2 | FE430B | E28-2 | |
| S275JO | ST44-3U | FE430C | E28-3 | ||
| A537 | S460Q | E460TR | SM58 | ||
| A572 Gr. C | S355M | STE355TM | FEE355KGTM | E355R | |
| A572 Gr. 42 | S275J0 | ST44-3U | FE430C | E28-3 | |
| S275J2+N | ST44-3N | FE430D | E28-4 | ||
| S275J2 | |||||
| A572 Gr. 50 | S355J2+N | ST52-3N | FE510D | E36-3 | SM490C |
| S275J2 | |||||
| A619 | DC03 | ST13 | FEP02 | E | SPCD |
| A620 | DC04 | ST14 | FEP04 | ES | SPCE |
| A633 | S355JR | ST52-3U | FE510B | E36-2 | SM490A |
| S355JO | FE510C | E36-3 | SS490 | ||
| A633 Gr. A | S275NL | TSTE285 | |||
| A633 Gr. C, D | S355NL | TSTE355 | FEE355KTN | E355FP | |
| A633 Gr. E | S420NL | TSTE420 | E420FP | ||
| A656 | S335J2 | FE510DD | E36-4 | SS490YA | |
| S335K2 | |||||
| S335K2+N | |||||
| A70950W | S355J0W | WTST52-3 | FE355W | E36W-B3 | |
| S355J2W | |||||
| S355K2W | |||||
| A945 Gr. 50 | S355ML | TSTE355TM | E355FP | ||
| A945 Gr. 60 | S420ML | TSTE420TM | E420FP | ||
| SA387 Gr. 11 | 13CrMoSi5-5 | ||||
| SA387 Gr. 22 | 10/11CrMo9-10 | 10CrMo9-10 | 12CrMo9.10 | 10CD9.10 | |
| SA516 Gr. 55 SA414 Gr. C SA285 Gr. C |
P235GH | HI | FE360-1KW | A37CP | SPV24 |
| SA516 GR. 60 SA414 Gr. E |
P265GH | HII | FE410-1KW | A42CP | SGV42 |
| SA516 Gr. 65 SA414 Gr. F SA299 |
P295GH | 17Mn4 | FE460-1KW | A48CP | SGV46 SPV32 |
| SA516 Gr. 70 | P355NH | WSTE355 | FEE355 KW | A510 AP | |
| P355NL1 | TSTE355 | FEE355 KT | A510 FP | ||
| SAE1020 | C20E | CK20 | C20 | ||
| S275JR | ST44-2 | FE430B | E28-2 | ||
| S275JR | ST44-2 | FE430B | E28-2 | ||
| SAE1035 | C35E | CK35 | C35 | XC38 | S35C |
| SAE1040 | C40E | CK40 | C40 | XC42 | S40C |
| SAE1042-1045 | C45E | CK45 | C45 | XC48 | S45C |
| SAE4140 SAE4142 |
42CrMo4 | 42CrMo4 | 42CrMo4 | 42CD4 | SCM440H |
| SAE4340 | 34CrNiMo6 | 34CrNiMo6 | 34CrNiMo6 | SNCM447 |

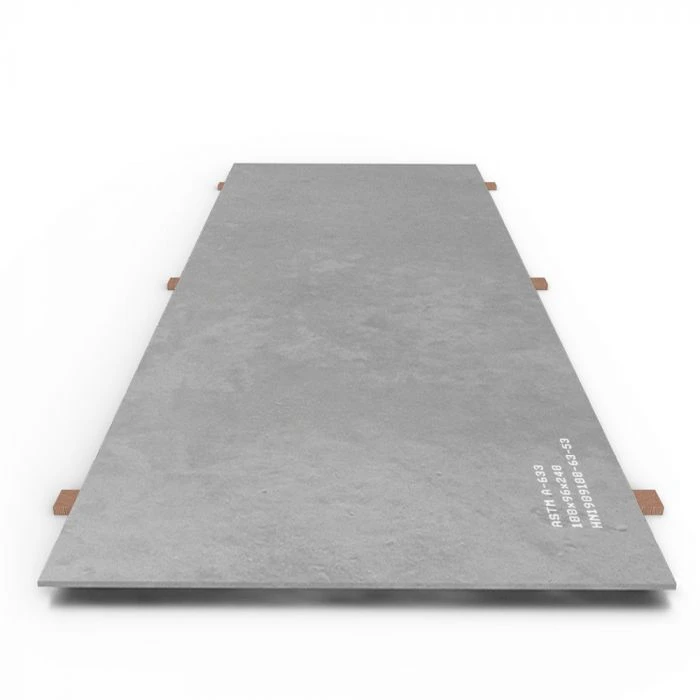

a633 high strength structural steel image
