09CuPCrNi-A Weathering Steel: High-Strength & Superior Atmospheric Corrosion Resistance
09CuPCrNi-A weathering steel utilizes a specialized alloy of Copper, Phosphorus, Chromium, and Nickel to form a dense protective rust layer. By achieving the concept of "using rust to prevent rust," its corrosion resistance is up to 8 times that of ordinary carbon steel. It is the ideal material for railway vehicles and outdoor architecture, combining a high yield strength of 345 MPa with an elongation of 22%.
1. 09CuPCrNi-A Overview and Core Characteristics
09CuPCrNi-A is a low-alloy, high-strength weathering steel (atmospheric corrosion-resistant steel) that sits between ordinary carbon steel and stainless steel as a high-performance, economical structural material.
- Nomenclature: "09" represents a carbon content upper limit of approximately 0.09%; "Cu, P, Cr, Ni" denote the core anti-corrosive alloying elements; "A" indicates the quality grade.
- Standards: Originally executed under TB/T 1979-2003, it was upgraded to TB/T 1979-2014, where it is now designated as Q345NQR2, emphasizing its role as a specialized weathering steel for railway vehicles.
- Design Philosophy: By adding specific alloying elements, the steel forms a dense, stable, and highly adhesive protective patina on its surface when exposed to the atmosphere. This "self-shielding" mechanism significantly extends the service life of outdoor steel structures while maintaining excellent mechanical properties and weldability.
2.09CuPCrNi-A Chemical Composition and Strengthening Mechanism
The chemical composition of 09CuPCrNi-A is precision-engineered to balance strength, toughness, and corrosion resistance.
■ 09CuPCrNi-A Chemical Composition Table (Typical Range)
| Element | Content (%) | Role in Performance |
| Carbon (C) | ≤ 0.12 | Low-carbon design ensures excellent weldability and low-temperature toughness. |
| Silicon (Si) | 0.25 - 0.75 | Deoxidizes the steel, improves purity, and strengthens the matrix. |
| Manganese (Mn) | 0.20 - 0.50 | Significantly increases strength and hardness for load-bearing structures. |
| Phosphorus (P) | 0.07 - 0.12 | A core weathering element. Works with Copper to stabilize the patina layer. |
| Sulfur (S) | ≤ 0.020 | Kept low to reduce hot-processing cracks and improve overall toughness. |
| Copper (Cu) | 0.25 - 0.55 | The most critical anti-corrosive element; forms a stable copper-oxide protective film. |
| Chromium (Cr) | 0.30 - 1.25 | Enhances oxidation resistance and contributes to self-healing properties. |
| Nickel (Ni) | 0.12 - 0.65 | Improves low-temperature impact toughness and overall weatherability. |
| Other (Al, Ti, V, etc.) | Trace amounts | Used for grain refinement and optimization of the microstructure. |
3. 09CuPCrNi-A Physical and Mechanical Performance
■ 09CuPCrNi-A Mechanical Properties
| Property | Value | Notes |
| Yield Strength (ReH) | ≥ 345 MPa | Core structural load indicator (may vary by thickness). |
| Tensile Strength (Rm) | 480 - 630 MPa | High-strength performance for heavy-duty applications. |
| Elongation (A%) | ≥ 22% - 24% | Excellent ductility and cold-forming capabilities. |
| Impact Toughness | ≥ 34J at -20°C / -40°C | Maintains high safety in extreme cold environments. |
| 180° Cold Bend | Qualified | Verified processing performance (d=a for thickness ≤ 6mm). |
■ 09CuPCrNi-A Corrosion Resistance Performance
- Weathering Multiplier: Its atmospheric corrosion resistance is 2 to 8 times higher than ordinary carbon steel. In industrial or mild marine environments, the corrosion rate is reduced by 60% - 70%.
- Protection Mechanism: The synergy of Cu, P, Cr, and Ni facilitates the formation of a dense, continuous, and non-porous spinel-type oxide layer (primarily α-FeOOH). This patina blocks oxygen and moisture from reaching the steel substrate.
- Service Life: In unpainted/bare conditions, it lasts up to 8 times longer than carbon steel. When painted, the structural life can exceed 30 years.
This MTC originates from Masteel, one of China's premier steel mills. It serves as the product's "identity card" and a verified record of its superior performance. Here is a deep dive into the core data of this 09CuPCrNi-A batch:
1. 09CuPCrNi-A Ultra-Pure Chemical Composition
High Phosphorus (P: 0.091%): Phosphorus is the key to forming a dense protective patina. This batch maintains P levels within the optimal 0.07%-0.12% range, ensuring long-term self-shielding capability.
Ultra-Low Sulfur (S: 0.006%): Significantly lower than the standard requirement of 0.020%, indicating extreme steel purity, superior resistance to lamellar tearing, and high welding reliability.
2. 09CuPCrNi-A Mechanical Strength Exceeding Standards
Yield Strength (402 MPa): While the standard requirement is ≥345 MPa, this batch reaches 402 MPa, providing higher safety margins and allowing for more lightweight structural designs.
Elongation (33.5%): Far exceeding the 22% baseline. Exceptional ductility ensures excellent performance in complex cold-bending, stamping, and folding processes without cracking.
3. 09CuPCrNi-A Remarkable Low-Temperature Impact Toughness
Impact Energy at -40°C (168J): This is the highlight of the MTC. An average impact energy of 168J at -40°C proves the steel's incredible resistance to brittle fracture, even in Siberian or high-altitude arctic conditions.
4.09CuPCrNi-A Full Traceability
Heat No (63482507) & Coil No (H231941520): Every data point corresponds directly to a specific smelting heat and finished coil. Customers can verify authenticity with the mill using these numbers, ensuring every plate comes from a top-tier manufacturer.
💡Pro-Tips for 09CuPCrNi-A Buyers:
When sourcing 09CuPCrNi-A, never look at the price alone. Inferior weathering steel may look similar but often lacks sufficient P and Cu content, leading to patchy rusting and severe corrosion. Our Commitment: Every plate delivered is accompanied by its corresponding, high-quality MTC as shown above.
4.09CuPCrNi-A Production Process and Quality Control
- Smelting: Utilizing oxygen converters or electric furnaces with hot metal desulfurization and LF/RH refining to strictly control impurities.
- Continuous Casting & Rolling: Billets are heated to 1190-1270°C. Finishing rolling is controlled between 850-915°C, with coiling at 620-680°C. Controlled rolling and cooling (TMCP-style) optimize the microstructure.
- Inspection: Comprehensive testing including chemical spectral analysis, tensile/bending tests, periodic immersion corrosion tests, salt spray tests, and metallographic grain size analysis.
5. 09CuPCrNi-A Application Fields
- Railway Transportation: The key material for manufacturing railway passenger cars, freight wagons, refrigerated cars, and high-speed rail (HSR) internal components.
- Architecture & Bridges: Large-scale steel structures, bridge girders, power plant chimneys, and decorative architectural facades.
- Energy & Industrial: Petroleum storage tanks, chemical equipment, offshore platforms, and port facilities exposed to corrosive media.
- Landscape & Art: Outdoor sculptures, garden facilities, and landscape walls, prized for the unique aesthetic of the natural rust patina.
- Pressure Vessels: Due to its excellent ductility and welding properties, it is used for spherical tanks and various low-temperature pressure vessels.
6. 09CuPCrNi-A Supply Forms and Services
We offer 09CuPCrNi-A in a variety of forms to meet diverse engineering needs:
■ Product Forms & Dimensions
| Form | Thickness Range | Width / Length |

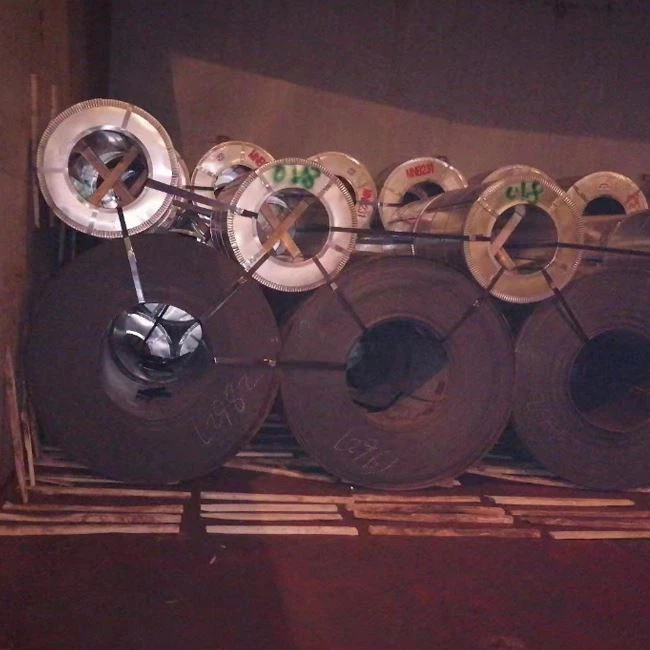

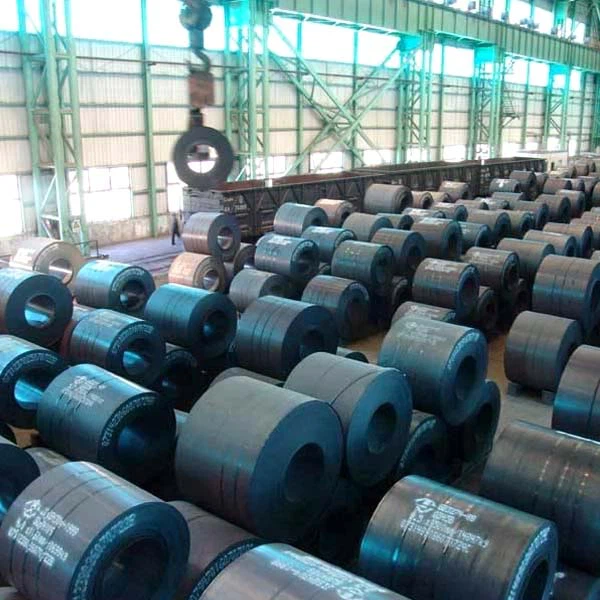

| Hot-Rolled Coils | 1.5mm - 12.0mm | Width: 1000mm - 1800mm |

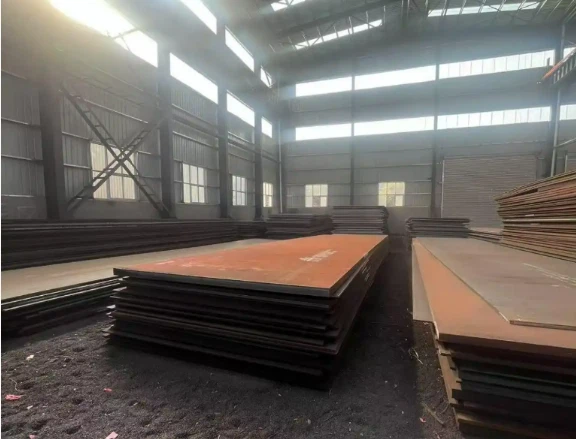

| Steel Plates | 2.0mm - 50.0mm+ | Width: Up to 3500mm; Length: 6000mm - 12000mm |
| Structural Sections | Standard Sizes | Angles, Channels, H-Beams, I-Beams |
| Bars & Pipes | Customizable | Round bars, seamless pipes, square tubes |
■ Delivery & Processing
- Delivery Condition: Usually delivered in As-Rolled or Annealed states. Surface treatments such as Pickling, Shot Blasting, and Priming are available upon request.
- Deep Processing Services: We support custom CNC Cutting, Slitting, Leveling, Drilling, and Bending to your exact architectural or structural drawings.
For the latest price of 09CuPCrNi-A steel plates or technical consultation, please contact our sales team today.
Typical Application Cases of 09CuPCrNi-A
- Railway Transportation: In the manufacturing of railway freight wagons, 09CuPCrNi-A is the material of choice for side panels, end walls, and underframes. It is widely utilized in China Railway container flatcars and coal hopper wagons, ensuring a robust service life of over 25 years.
- Iconic Architecture: Within the architectural sector, this steel has been successfully integrated into the steel structures of China Beijing Olympic Games venues and the roofing systems of the Shanghai World Expo Theme Pavilion.
- Infrastructure & Energy: It is also extensively applied in solar (PV) mounting brackets, power transmission towers, and highway guardrails. Its superior corrosion resistance significantly lowers the total life-cycle maintenance costs for these essential infrastructures.
